PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1170 × 555 × 1920 mm
Leg height	150 mm
Individual door width	390 mm
Hanging compartment clear height	1400 mm
Upper shelf depth	500 mm
Door pull length	180 mm
Under-cabinet floor clearance	120 mm
Adjustable shelf thickness	18 mm
Back panel thickness	5 mm
Interior side panel thickness	18 mm
Hanging rod diameter	25 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Assembled net weight	76 kg
Static shelf load capacity	20 kg
Per-shelf folded clothing capacity	20 folded T-shirts
Recommended user count	2 users
Door hinge cycle rating	50000 open/close cycles
Anti-tip anchoring load rating	50 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Carcass panels	18mm particleboard with melamine surface
Door panels	MDF substrate with matte white PU paint finish
Legs	Solid rubberwood with clear natural finish
Door pulls	Solid beech wood with natural oil finish
Back panel	5mm hardboard with matte white finish
Edge banding	0.8mm PVC edge banding matching wood trim color
Hanging rod	25mm powder-coated steel tube
Hinges	Cold-rolled steel with nickel plating
Wall anchor kit	Galvanized steel bracket with steel mounting screws
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Door operation	Three full-height outward-swinging hinged doors, 110-degree opening angle
Interior layout	Left two-door section with hanging rod and upper shelf, right single-door section with 4 adjustable shelves
Shelf adjustability	Shelves adjust on 32mm spaced metal pin holes for flexible storage height
Anti-tip safety	Wall anchoring bracket included to secure cabinet to wall studs, preventing tip-over
Surface maintenance	Matte surfaces wipe clean with damp cloth, dry immediately to prevent moisture damage
Assembly type	Knock-down flat-pack assembly with cam-lock and screw fasteners
Leveling adjustment	Fixed solid wood legs with optional felt floor protection pads, no integrated levelers
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Largest carton dimensions	1950 x 600 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential bedroom use	Suitable for adult or guest bedrooms as primary clothing storage for two users
Entryway cloakroom use	Appropriate for small entry or dressing area for outerwear and bag storage
Small apartment use	Elevated leg design creates visual lightness suitable for compact urban living spaces
Rental property furnishing	Durable matte finish and simple assembly make it suitable for furnished rental properties
Youth bedroom use	Neutral two-tone finish works for teen bedrooms with mixed clothing and folded storage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016	Safety and performance requirements for domestic storage furniture, including anti-tip provisions
EN 312:2010	Particleboard performance classification for structural furniture panel use

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required E1 grade acceptance threshold
GB/T 4893.8-2013	Surface wear resistance test for furniture coatings, applicable to door and carcass finishes

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to structural and finish performance；
2. GB 18580-2017：Formaldehyde emission limits for wood-based panels, required E1 grade acceptance threshold；
3. GB/T 4893.8-2013：Surface wear resistance test for furniture coatings, applicable to door and carcass finishes；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · 3DW-SC-WO-001

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · 3DW-SC-WO-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · 3DW-SC-WO-001打开导出工具

页面快速操作

发布采购询价

产品描述

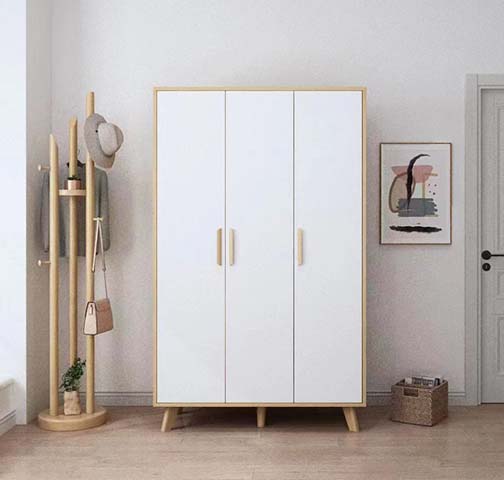

The Scandinavian Freestanding 3-Door Clothing Wardrobe with Tapered Legs (model 3DW-SC-WO-001) delivers a light, approachable two-tone aesthetic pairing light natural wood accents with matte white panels, aligned with classic Scandinavian design principles. Its elevated tapered leg structure creates intentional under-cabinet floor clearance, lending visual lightness that avoids the heavy, bulky profile of fully floor-mounted storage units, while clean, unadorned door fronts with streamlined solid wood pulls keep the silhouette refined and uncluttered. The wardrobe measures 1170 x 555 x 1920 mm, with a 150 mm leg height, 390 mm individual door width, and 180 mm door pulls that sit flush with the panel surface for a cohesive look. Its interior is split into two distinct zones: the left two-door section houses a 1400 mm clear height hanging compartment topped with a 500 mm deep upper shelf, while the right single-door section holds four 18 mm thick adjustable shelves that reposition along 32 mm spaced metal pin holes to accommodate varying item heights. Each shelf supports 20 folded T-shirts, with a 20 kg static load capacity and 30 kg distributed load rating, while the 25 mm powder-coated steel hanging rod supports long and short hanging garments. The three outward-swinging hinged doors open to a 110-degree angle, with cold-rolled steel nickel-plated hinges rated for 50000 open/close cycles for reliable long-term use. An included galvanized steel wall anchor kit, rated for 50 kg anti-tip load, secures the unit to wall studs to prevent tip-over. Constructed with an 18 mm melamine-surfaced particleboard carcass, matte white PU-coated MDF door panels, solid rubberwood legs and trim, natural oil-finished solid beech door pulls, 5 mm matte white hardboard back panel, and color-matched 0.8 mm PVC edge banding, the piece is built for regular residential use. All matte surfaces wipe clean with a damp cloth, requiring immediate drying to prevent moisture damage; fixed solid wood legs work with optional felt floor protection pads, with no integrated levelers included. Delivered as a knock-down flat-pack, it assembles in 40 minutes per set with included cam-lock and screw fasteners, across three cartons with a total packaged gross weight of 100 kg and 0.65 m³ total packaging volume. This wardrobe is sized to support two users, making it suitable for adult or guest bedrooms as primary clothing storage, small entryways or dressing areas for outerwear and bag storage, compact urban apartments where its elevated leg design reduces visual clutter, furnished rental properties thanks to its durable finish and simple assembly, and teen bedrooms, where its neutral light wood and white palette complements a range of decor styles. Procurement teams should note the unit’s 76 kg assembled net weight and required wall anchoring for safe installation, plan for appropriate receiving storage for the three flat-pack cartons, and account for the lack of integrated leg levelers when assessing placement on uneven floor surfaces.

Scandinavian Freestanding 3-Door Clothing Wardrobe with Tapered Legs Specifications
