3-Door Glass Front Solid Wood Display Bookcase with 2 Lower Drawers Specifications

BC-GD3D2-1200

代码:H4AQFDV1
获取供应商报价
2026-08-16 18:28人气: 26
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

BC-GD3D2-1200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1200 x 400 x 2000 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total unit weight85 kg
Per shelf static load capacity25 kg
Recommended book storage capacity180 volumes
Assembly time for 2 persons90 minutes
Anti-tip load rating50 kg
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Cabinet main frame18mm thick natural finish solid pine
Door panel inserts5mm thick clear tempered glass
Interior fixed shelves15mm thick melamine-faced engineered wood
Lower drawer fronts18mm thick solid pine matching frame finish
Door handlesBrushed light gold aluminum alloy
Base support legs30mm thick solid pine angled legs
Drawer slidesSide-mounted 3-section ball bearing slides
Back panel3mm thick hardboard
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Door operation3 outward-swinging hinged doors with 110 degree opening angle
Shelf configuration5 fixed horizontal shelves per door bay creating 6 open tiers
Drawer operation2 equal-width lower drawers with full 350mm extension
Display featureTransparent glass panels to showcase books and decorative items
Floor clearance120mm elevated base allows robotic vacuum access
Anti-tip compatibilityPre-drilled mounting points for wall anchor strap
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Living room display storagePlaced against wall for books, decor and collectible display
Home study book storageUsed as primary bookcase adjacent to desk for reference material access
Home office document storageStores office files, reference books and display awards
Dining room display cabinetStores tableware, glassware and decorative dining items
Recommended placement clearance800mm clearance in front of cabinet for door opening and drawer access
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 14749:2016Safety and strength requirements for domestic storage furniture
EN 12521:2015Strength and durability for domestic storage furniture
EN 71-3:2019Migration of certain elements for furniture surfaces
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB/T 4897.3-2015Particleboard for furniture use
GB 28007-2011Safety requirements for children's furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB/T 4897.3-2015:Particleboard for furniture use;
3. GB 28007-2011:Safety requirements for children's furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · BC-GD3D2-1200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · BC-GD3D2-1200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · BC-GD3D2-1200打开导出工具

页面快速操作

发布采购询价

产品描述

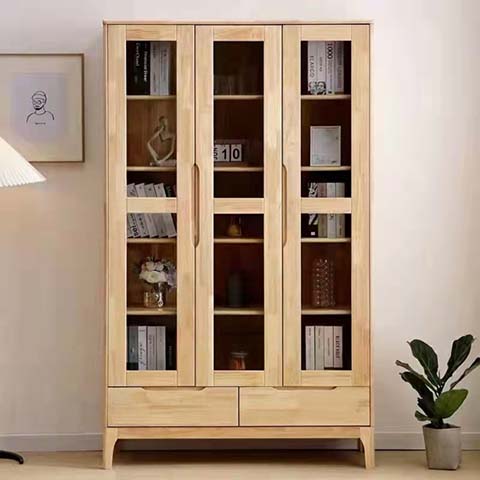

This floor-standing enclosed display bookcase features a clean Nordic minimalist aesthetic, defined by a natural light-finish solid pine frame that pairs warm wood tones with sleek clear tempered glass door panels for a light, open visual presence. The unit is structured with three vertical door bays, each fitted with an outward-swinging hinged glass door, positioned above two equal-width lower drawers. Angled solid pine support legs elevate the cabinet base, creating open space beneath the main storage structure, while uniform frame lines and subtle brushed light gold aluminum alloy handles maintain a streamlined, uncluttered silhouette. Constructed for durable daily use, the bookcase’s main frame, drawer fronts, and support base are crafted from solid pine, with clear tempered glass inserts forming the door panels. Interior fixed shelves are made of melamine-faced engineered wood, with smooth edge banding on all panel edges. The rear of the unit uses hardboard paneling, and lower drawers operate on side-mounted 3-section ball bearing slides. Door hardware supports a wide opening angle for easy access to interior contents. Functional design supports both display and concealed storage needs. Transparent glass panels allow unobstructed visibility of items stored inside, ideal for showcasing curated items alongside reading materials. Each door bay contains evenly spaced fixed horizontal shelves to create multiple storage tiers, suitable for holding books, documents, or display pieces. The two lower drawers provide enclosed, out-of-sight storage for smaller items, with full extension for easy access to contents at the back of each drawer. The elevated base leaves sufficient floor clearance to accommodate robotic vacuum cleaning, and pre-drilled mounting points are included to support wall anchor installation for added stability. Units may be fitted with a cable and vent opening for integrated use with electronic devices, if required. This bookcase suits a range of residential and light commercial spaces. It works well placed against a living room wall to hold books, decor, and collectibles, as a primary storage unit in a home study adjacent to a desk for quick access to reference materials, as file and award display storage in a home office, or as a display cabinet in a dining room to hold tableware, glassware, and decorative dining pieces. When selecting placement, ensure sufficient open clearance in front of the unit to allow full door swing and unobstructed drawer access. For assembly, plan for sufficient time to complete setup with two people, and note that the unit ships across multiple cartons for transport.
