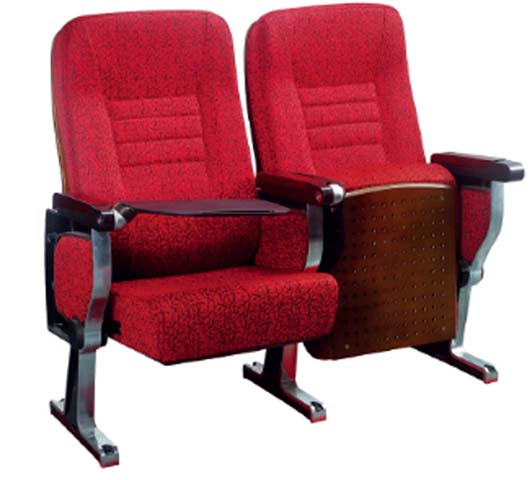

Two-Seat Upholstered Auditorium Seating Unit with Writing Tablets Specifications

AUD-2SEAT-RWTP-001

代码:4C3FU9V1
获取供应商报价
2026-08-20 17:23人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-2SEAT-RWTP-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat static weight capacity150 kg
Single seat unit net weight28 kg
Writing tablet static load capacity25 kg
Seat cushion foam density45 kg/m³
Seat cushion foam thickness80 mm
Backrest foam thickness60 mm
Seam stitch pitch8 stitches per 30mm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryRed woven geometric-pattern commercial-grade fabric
Cushion core paddingHigh-resilience polyurethane foam
Armrest surfacesStained solid wood with dark mahogany finish
Folding writing tabletDark wood-laminated composite board
Structural support frame2.5mm thick chrome-plated cold-rolled steel
Side divider panel between seatsPerforated stained wood veneer panel
Floor mounting bracketsPowder-coated steel with anti-slip base pads
Tablet hinge hardwareZinc-plated steel pivot with tension lock
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fold-out writing tablet operationTablet pivots 90 degrees from stowed vertical position to flat horizontal work surface
Ganged row installationSteel legs align to connect multiple 2-seat units into continuous straight rows
Contoured back supportSegmented horizontal channel stitching provides lumbar and upper back alignment
Perforated side panel ventilationEvenly spaced perforations in inter-seat divider allow air circulation between seats
Bolt-down floor fixationPre-drilled base plates secure units to sloped or flat auditorium floors
Fold-away tablet storageTablet flips upward to nest flush with armrest when not in use to free aisle access
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Cinema and movie theater auditoriumsDurable upholstery and fixed row layout supports high daily visitor throughput
University lecture hallsIntegrated writing tablet supports note-taking during classes and examinations
Conference and assembly hallsFormal uniform appearance suits corporate and government meeting spaces
Performing arts theatersPerforated side panels support room acoustic performance for live events
Corporate training roomsStain-resistant commercial fabric supports regular cleaning and maintenance
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Applicable standard EN 12727:2000Strength and durability requirements for public seating, applicable to structural load testing
Applicable standard EN 1022:2018Stability testing for seating furniture, applicable to fixed bolt-down installation
Applicable standard EN 13501-1:2018Fire classification of upholstered furniture, applicable to fabric and foam flammability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Applicable standard GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood armrest and panel components
Applicable standard GB 28007-2011Safety requirements for children and adult public seating, applicable to structural stability
Applicable standard GB/T 19889.3-2005Acoustic performance measurement for auditorium seating, applicable to room acoustic design
Applicable standard GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable to composite wood components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Applicable standard GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood armrest and panel components;
2. Applicable standard GB 28007-2011:Safety requirements for children and adult public seating, applicable to structural stability;
3. Applicable standard GB/T 19889.3-2005:Acoustic performance measurement for auditorium seating, applicable to room acoustic design;
4. Applicable standard GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to composite wood components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-2SEAT-RWTP-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-2SEAT-RWTP-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-2SEAT-RWTP-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Seat Upholstered Auditorium Seating Unit with Writing Tablets, model AUD-2SEAT-RWTP-001, is an unbranded commercial public seating solution designed for high-traffic gathering spaces. Visually, the unit presents a formal, uniform aesthetic, with red woven geometric-pattern commercial-grade fabric upholstery, dark mahogany finished solid wood armrests, polished chrome-plated steel framing, and dark wood folding tablets, creating a cohesive look suitable for professional public venues. Inter-seat divider panels use perforated stained wood veneer, balancing visual separation between adjacent seats with subtle textural detail. The unit is engineered for ganged row installation, with aligned steel legs that connect multiple two-seat units into continuous straight rows, and pre-drilled base plates that bolt securely to both flat and sloped floors, fitted with anti-slip base pads for stable fixation. Its core structure relies on 2.5mm thick chrome-plated cold-rolled steel support frames, with 14mm bent plywood internal seat support boards. Seating surfaces use high-resilience polyurethane foam, with 90mm finished seat cushion thickness and 70mm backrest padding, supported by segmented horizontal channel stitching that creates a contoured back with a 240mm tall lumbar support zone to align the spine across long periods of use. The 125-degree seat recline offers three lock positions for adjustable comfort. Each unit is fitted with dark wood-laminated composite folding writing tablets, operated via zinc-plated steel tension-lock pivots that rotate 90 degrees from a vertically stowed position, where they nest flush against armrests to keep aisles clear, to a flat horizontal work surface. The perforated inter-seat panels allow air circulation between seats, while also supporting room acoustic performance for live events. The clear width between armrests measures 540mm per seat, with a per-seat static weight capacity of 150kg, and each writing tablet supports a 25kg static load. Seam stitching is set to 8 stitches per 30mm for reinforced fabric durability, and the stain-resistant commercial upholstery stands up to regular cleaning and maintenance. This seating unit is suitable for cinemas, university lecture halls, corporate and government conference and assembly halls, performing arts theaters, and corporate training rooms, with durable construction that supports high daily visitor throughput, integrated note-taking surfaces for classes and exams, and a polished formal appearance. For procurement, note that each set ships in 2 cartons, with a 40-minute per-set assembly time, and a 20GP container holds 135 sets at 85% space utilization. The listed matching 2.4m executive desk is not included with the seating unit, and should be sourced separately if required for venue layouts.
