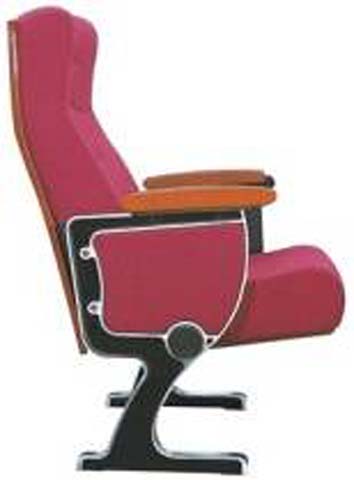

Red Upholstered Fixed Floor-Mounted Auditorium Chair with Wooden Armrest Specifications

AUD-CAN-RED-WD-001

代码:AGYFYTV1
获取供应商报价
2026-08-23 18:39人气: 15
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-CAN-RED-WD-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (seat open)580 x 760 x 1050 mm
Center-to-center seat width590 mm
Seat height from floor465 mm
Armrest height from floor645 mm
Armrest width85 mm
Backrest height from seat surface600 mm
Seat usable depth460 mm
Seat folded-up depth from back panel120 mm
Recommended row spacing950 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Unit net weight40 kg
Recommended static user load150 kg
Seat foam density55 kg/m³
Backrest foam density45 kg/m³
Seat foam thickness70 mm
Backrest foam thickness40 mm
Seat return mechanism cycle life100000 cycles
Fabric abrasion resistance50000 Martindale cycles
Structural frame warranty5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryFlame-retardant commercial-grade woven fabric, red finish
Seat paddingCold-cured high-density polyurethane foam
Back paddingContoured high-density polyurethane foam
ArmrestSolid rubber wood with clear varnish finish
Cantilever support frame2.5mm thick cold-rolled steel, black electrostatic powder coating
Seat and back inner panels15mm thick multilayer plywood, veneer edge trim
Seat pivot hingeCarbon steel with corrosion-resistant plating
Seat return spring4mm diameter steel spring, damped auto-return
Floor fixing feetHorizontal steel brackets with 4 expansion bolt mounting points
Upholstery stitchingReinforced polyester thread, 8mm seam pitch
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Flip-up seat operationSpring-damped automatic return to vertical position when unoccupied
Floor mountingPermanent fixed installation via expansion bolts through horizontal feet
Fixed back supportContoured 20-degree angled backrest for upright long-duration seating
Seat support systemS-shaped sinuous steel springs under foam for even weight distribution
Armrest functionFixed solid wood arm support at seated elbow height, no adjustment
Stowed seat clearanceFolded seat reduces protruding depth to 120mm for wider aisle access
Acoustic performanceUpholstered surfaces provide sound absorption to reduce hall echo
Backrest fixed recline angle20 degrees from vertical
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Auditorium and theater hallsFixed row installation for staged events, screenings and performances with clear sightlines
Conference and lecture hallsSeating for long presentations, lectures and government meetings with upright posture support
School and university lecture theatersTiered floor installation for student and audience seating in educational venues
Church and community assembly hallsFixed permanent seating for congregations and community events with formal seating layout
Cinema and screening roomsRow seating for film screenings with appropriate back angle for viewing comfort
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1022:2018Stability test standard for non-domestic seating, applicable for fixed floor-mounted chairs
EN 13759:2002Durability test standard for public venue seating mechanisms, including flip-up seats
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Performance standard for public/assembly seating structural load and durability
ANSI/BIFMA X5.4-2022Durability standard for lounge and public seating upholstery wear resistance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 20286-2006Flame retardant performance requirement for public venue upholstered seating components
GB/T 3324-2017General technical requirement for metal furniture structural strength and stability
GB/T 39600-2021Limit of harmful substances in furniture upholstery and foam materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB 20286-2006:Flame retardant performance requirement for public venue upholstered seating components;
2. GB/T 3324-2017:General technical requirement for metal furniture structural strength and stability;
3. GB/T 39600-2021:Limit of harmful substances in furniture upholstery and foam materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-CAN-RED-WD-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-CAN-RED-WD-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-CAN-RED-WD-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Red Upholstered Fixed Floor-Mounted Auditorium Chair with Wooden Armrest, model AUD-CAN-RED-WD-001, is an unbranded venue seating solution designed for permanent fixed-row installations. Visually, the chair pairs rich red fabric upholstery with warm, clear-varnished solid rubber wood armrests, supported by a sleek black powder-coated steel cantilever frame that creates a clean, uncluttered profile between rows. When unoccupied, its flip-up seat folds flush against the contoured backrest, maintaining a narrow protruding profile that preserves clear aisle access; when deployed, the fixed 20-degree angled backrest aligns to support upright posture for extended seated periods, with armrests positioned at standard seated elbow height for consistent comfort. Constructed for high-traffic commercial use, the chair uses commercial-grade flame-retardant woven red fabric over cold-cured high-density polyurethane foam padding, with S-shaped sinuous steel springs beneath the seat to distribute weight evenly across the seating surface. Internal seat and back structures are built from multilayer plywood with veneer edge trim, while the 2.5mm thick cold-rolled steel cantilever frame features a durable black electrostatic powder coating to resist wear. The seat pivot uses corrosion-resistant plated carbon steel hinges paired with a damped steel auto-return spring, and the unit secures to floors via horizontal steel brackets with expansion bolt mounting points for a permanent, stable fit. Upholstered surfaces also provide built-in sound absorption to reduce echo in large enclosed spaces. This chair is suited for a wide range of permanent seating applications, including auditoriums and theater halls for staged events and screenings, conference and lecture halls for long presentations and official meetings, educational tiered lecture theaters, church and community assembly halls, and cinema screening rooms. When planning procurement, note that each unit ships in two cartons, with an assembly time per set, and that fixed floor mounting requires pre-planned layout alignment to preserve sightlines and aisle clearance. The fixed solid wood armrests have no adjustment features, and the damped flip-up seat operates automatically when vacated, reducing post-event aisle obstruction for high-capacity venues.
