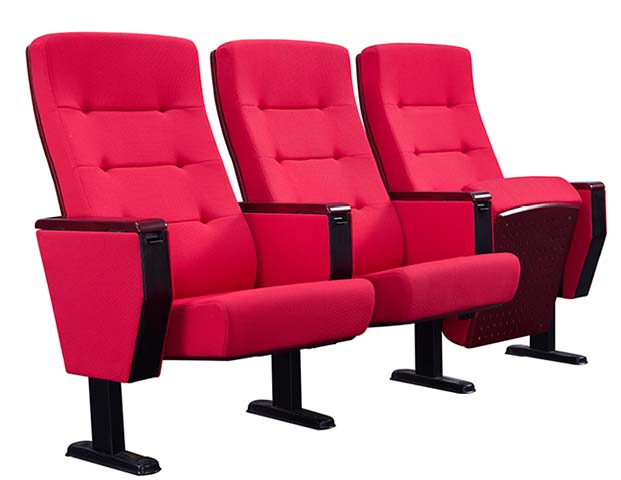

3-Seat Ganged Red Fabric Tufted Auditorium Seating with Dark Wood Armrests Specifications

AUD-3S-RED-TFT-WD

代码:AP9ZC3V1
获取供应商报价
2026-08-23 20:58人气: 32
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-3S-RED-TFT-WD

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall 3-seat row dimensions (open position)1740 x 730 x 1010 mm
Single seat center-to-center distance580 mm
Seat height above finished floor460 mm
Inner seat usable width490 mm
Armrest height above finished floor620 mm
Armrest surface dimensions422 x 80 x 30 mm
Backrest cushion thickness140 mm
Seat cushion thickness150 mm
Pedestal base foot length280 mm
Outermost modesty panel height450 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single seat net weight23.5 kg
Recommended static load per seat260 kg
Seat/back foam density65 kg/m³
Foam rebound rate60%
Fabric abrasion resistance (Martindale)50000 cycles
Seat tip-up mechanism cycle life100000 cycles
Recommended maximum occupancy per row3 adults
Product warranty period5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat/back upholsteryRed tufted woven fabric
Seat/back paddingCold-cured high-density polyurethane foam
Armrest top surfaceDark varnished solid beech wood
Armrest side supportBlack powder-coated cold-rolled steel
Internal seat/back frame1.6mm thick cold-rolled steel
Inner support panels10mm thick multi-layer plywood
Pedestal support structure2.2mm thick powder-coated black steel
Outermost modesty panelPerforated dark wood veneer MDF
Seat hinge mechanismZinc-plated steel double-spring assembly
Floor fixing hardwareHex expansion bolts with plastic dust caps
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up operationAutomatic gravity-assisted double-spring return to vertical position
Return mechanism featureDamped quiet return with no impact noise
Floor mounting typePermanent fixed installation via T-shaped pedestal bases
Row configurationPre-ganged 3-seat straight row with shared armrests between seats
Seating angle design105° fixed backrest rake optimized for audience viewing
Armrest utilityWide flat solid wood surface for arm support and item placement
Seat occupancy detectionConcealed sensor mounting points in armrest bracket
Accessory compatibilityCompatible with optional row number plates and cup holders
Row clearanceTip-up seat provides 300mm minimum aisle clearance when unoccupied
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Assembly halls and lecture theatersFormal wood trim and fixed ganged design suits institutional audience venues
Cinema and performing arts theatersPlush tufted upholstery and tip-up seats suit extended viewing sessions
Conference center auditoriumsConsistent row spacing and durable construction suits multi-event use
School and university auditoriumsHigh-traffic durable construction and standard dimensions suit campus venues
Government and corporate meeting hallsFormal red upholstery and dark wood finish suits official event spaces
Religious worship auditoriumsFixed row configuration and comfortable padding suits long service durations
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000European standard for strength, durability and safety of ranked auditorium seating
EN 1021-1/2Recommended upholstery fire resistance standard for public venue seating
EN 13722:2006Standard for dimensional fit and ergonomic requirements for audience seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Standard for large-occupant public seating load and durability testing
ANSI/BIFMA X5.4-2020Applicable durability standard for occasional-use public lounge and audience seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 20286-2006Recommended flame retardant standard for upholstered furniture in public assembly venues
GB/T 3324-2017Applicable general technical standard for wood furniture used in seating components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB 20286-2006:Recommended flame retardant standard for upholstered furniture in public assembly venues;
2. GB/T 3324-2017:Applicable general technical standard for wood furniture used in seating components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-3S-RED-TFT-WD

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-3S-RED-TFT-WD

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-3S-RED-TFT-WD打开导出工具

页面快速操作

发布采购询价

产品描述

This 3-seat ganged red fabric tufted auditorium seating is designed as a cohesive straight-row seating solution for dedicated audience spaces, delivering a polished, formal aesthetic that balances classic detailing with functional durability. The unit features rich red tufted woven fabric upholstery across its seat and back cushions, paired with dark varnished solid beech wood armrests and matching dark wood trim, including a perforated wood veneer modesty panel at the outermost edge for a refined, unified look across installed rows. It arrives as a pre-ganged three-seat configuration with shared armrests between adjacent seats, mounted permanently to finished floors via sturdy T-shaped black powder-coated steel pedestal bases to maintain consistent, stable alignment in venue layouts. Construction prioritizes long-term heavy-use performance without compromising comfort. Cushions are formed from high-density cold-cure polyurethane foam, supported by an internal cold-rolled steel frame and multi-layer plywood inner panels. The tip-up seat uses a zinc-plated steel double-spring hinge assembly that delivers automatic gravity-assisted return to a vertical position, with a damped mechanism that eliminates impact noise during operation. The fixed backrest is set to a 105° rake optimized for audience viewing, while armrests offer a wide flat wood surface for both arm support and temporary placement of personal items, plus concealed mounting points for occupancy sensors if required. All exposed metal components are finished in durable black powder coating to resist wear in high-traffic environments. The seating is well-suited for a broad range of commercial and institutional spaces, including assembly halls, lecture theaters, cinemas, performing arts venues, conference center auditoriums, school and university campus venues, government and corporate meeting halls, and religious worship spaces, where its formal finish, plush padding, and fixed-row design support comfortable use across long events and multi-purpose programming. For procurement planning, note that each set ships across two cartons, with a reference assembly time of 40 minutes per unit. Installers should account for permanent floor mounting requirements, and specifiers can leverage standardized seat dimensions to design consistent row layouts across venue sections, with each three-seat unit rated to accommodate three adult occupants. The durable fabric and robust mechanism construction supports reliable performance across frequent, high-volume use cycles.
