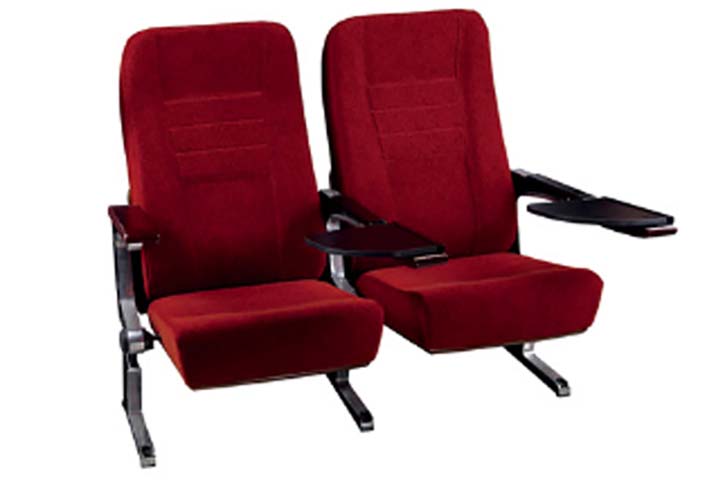

Ganged Red Fabric Auditorium Chair Pair with Fold-Out Writing Tablets Specifications

AUD-2SEAT-RED-TABLET-CANTI

代码:DKWVD5V1
获取供应商报价
2026-08-20 17:31人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-2SEAT-RED-TABLET-CANTI

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall two-seat unit dimensions1200 x 880 x 1021 mm
Per-chair center-to-center width590 mm
Seat height from finished floor449 mm
Armrest top height from floor660 mm
Seat usable width470 mm
Seat usable depth (cushion front to back)470 mm
Backrest usable height750 mm
Folded seat unit depth (tablet retracted)780 mm
Deployed writing tablet depth from seat front270 mm
Writing tablet surface dimensions270 x 250 mm
Armrest pad width85 mm
Minimum required row-to-row pitch for installation950 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-chair net weight25 kg
Recommended static load per seat160 kg
Seat cushion foam density60 kg/m³
Backrest cushion foam density45 kg/m³
Cushion padding thickness (seat)125 mm
Cushion padding thickness (back)135 mm
Fabric upholstery abrasion resistance50000 Martindale cycles
Writing tablet static load capacity30 kg
Standard product warranty period5 years
Available standard fabric color options8
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWoven burgundy red commercial fabric, treated for pilling and fade resistance
Seat internal paddingCold-cured high-resilience polyurethane molded foam
Structural support frame2.5mm thick cold-rolled steel tube with chrome-plated polished finish
Cantilever floor-mount legs2.5mm thick chrome-plated steel with pre-drilled floor anchor plates
Armrest structurePadded core with dark wood veneer top cap, 30mm thick profile
Fold-out writing tablet12mm thick rigid dark composite panel with anti-panic aluminum die-cast bracket
Seat return mechanismSteel spring with integrated damping cushion for silent, rebound-free operation
Seat internal supportSerpentine steel spring suspension under seat cushion for even weight distribution
Seam constructionReinforced stitched seams with 8mm stitch pitch for heavy commercial use
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up functionGravity and spring-assisted automatic return to upright position when unoccupied
Writing tablet operationFold-out arm-mounted tablet rotates 90 degrees to stow flush against armrest when not in use
Writing tablet ergonomicsDeployed tablet tilts 6.5 degrees upward to support writing on standard lap height
Row installation featureGanged steel connecting brackets lock adjacent seats into rigid continuous rows for fixed layout
Floor mountingPre-drilled leg bases secure to concrete or raised floors with expansion anchor hardware
Noise dampingIntegrated rubber buffers eliminate impact noise during seat and tablet return
Modular accessory compatibilityPre-punched mounting points support optional row number plates, cup holders, and under-seat book nets
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Shipping volume per two-seat unit0.36 CBM
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

University lecture hallsFixed row seating with writing tablets supports long-duration note-taking during classes
Corporate conference and assembly hallsFormal red upholstery suits professional meeting and presentation environments
Theater and performing arts venuesContoured back support and tip-up seats enable efficient patron ingress and egress
Government and institutional meeting roomsDurable fixed construction meets high-traffic public facility long-term use needs
Multi-purpose school auditoriumsFolding tablets stow flush to convert seating for performances and general events
Training centers for corporate and adult educationArm-mounted writing surfaces provide stable work area for training materials
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000Strength, durability and safety standard for fixed ranked auditorium seating
EN 1021-1:2014Upholstered furniture ignitability test for smoldering cigarette source
EN 1021-2:2014Upholstered furniture ignitability test for match flame equivalent source
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2020Performance standard for lounge and public seating applicable to structural load testing
ANSI/BIFMA X5.41-2020Sustainability standard for commercial furniture material and emissions requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture applicable to armrest and tablet wood components
GB/T 17657-2013Test method for surface finish durability applicable to armrest and tablet surfaces
GB 20286-2006Flame retardant requirements for public venue upholstered furniture, mandatory for assembly halls
GB/T 3922-1995Fabric color fastness testing standard for seating upholstery durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture applicable to armrest and tablet wood components;
2. GB/T 17657-2013:Test method for surface finish durability applicable to armrest and tablet surfaces;
3. GB 20286-2006:Flame retardant requirements for public venue upholstered furniture, mandatory for assembly halls;
4. GB/T 3922-1995:Fabric color fastness testing standard for seating upholstery durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-2SEAT-RED-TABLET-CANTI

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-2SEAT-RED-TABLET-CANTI

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-2SEAT-RED-TABLET-CANTI打开导出工具

页面快速操作

发布采购询价

产品描述

The LINGKEN AUD-2SEAT-RED-TABLET-CANTI ganged auditorium chair pair delivers purpose-built fixed seating for high-traffic public and commercial environments, with a streamlined cantilever silhouette designed for clean, uncluttered row layouts. Each two-seat unit is finished in rich burgundy red woven commercial fabric treated to resist pilling and fading, paired with polished chrome-plated steel framing and dark wood veneer armrest caps for a polished, professional aesthetic. The pair is engineered for permanent floor mounting, with ganged connecting brackets that lock adjacent units into rigid, aligned continuous rows for consistent, orderly space planning. Durable, heavy-use construction underpins every component of the seating pair. The structural frame and cantilever floor-mount legs are formed from thick cold-rolled steel with a polished chrome finish, fitted with pre-drilled anchor plates for secure attachment to concrete or raised floors. Seat and back cushions use cold-cured high-resilience molded polyurethane foam, with dense padding and serpentine steel spring suspension under the seat to distribute weight evenly across the seating surface. Reinforced, closely spaced stitched seams support long-term commercial use, while padded armrests with dark wood veneer tops add a refined, comfortable touch. The fold-out writing tablets are built from rigid dark composite panels mounted on anti-panic die-cast aluminum brackets, and the seat return mechanism uses steel springs with integrated damping cushions and rubber buffers to eliminate impact noise during operation. Designed for flexible functional use, the seats feature gravity and spring-assisted automatic tip-up return when unoccupied, creating clear aisle space to support smooth patron ingress and egress. The arm-mounted writing tablets rotate 90 degrees to stow flush against the armrest when not needed, and tilt slightly upward when deployed to create a stable, ergonomic surface for writing or supporting materials. Pre-punched mounting points accommodate optional accessories including row number plates, cup holders, and under-seat book nets for customized configuration. This seating pair is well suited for university lecture halls, corporate conference and assembly spaces, theater and performing arts venues, government institutional meeting rooms, multi-purpose school auditoriums, and corporate or adult education training centers, as the fixed, durable construction supports long-term high-traffic use, and stowable tablets allow quick conversion between note-taking, presentation, and event seating layouts. For procurement planning, each two-seat unit ships across two cartons, with straightforward on-site assembly. Procurement teams should note that expansion anchor hardware is required for floor installation, and select compatible accessories based on specific space needs to align with intended use patterns.
