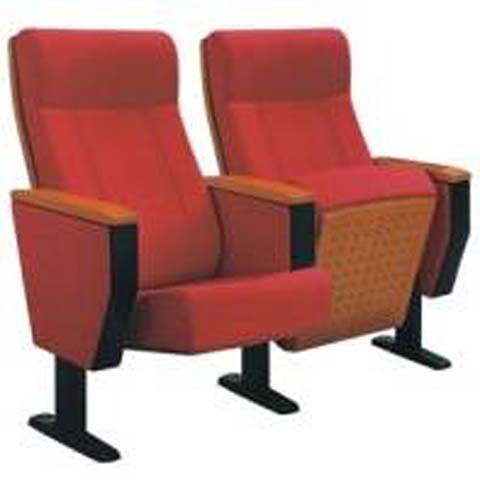

Double-Seat Fixed Floor-Mounted Auditorium Chair with Red Upholstery and Wood Armrests Specifications

AUD-RED-T2-WA

代码:DYSUF3V1
获取供应商报价
2026-08-23 21:15人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-RED-T2-WA

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall double-seat dimensions1140 x 770 x 1000 mm
Single-seat center distance570 mm
Seat height above finished floor440 mm
Seat usable width490 mm
Seat depth (tip-up open position)470 mm
Armrest height above finished floor620 mm
Wood armrest cap dimensions422 x 85 x 29 mm
Backrest total height from seat560 mm
Minimum recommended row spacing950 mm
Floor mount T-stanchion fixing hole pitch280 mm
Side upholstered panel thickness15 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single seat static load rating150 kg
Seat tip-up mechanism cycle life200000 cycles
Upholstery abrasion resistance (Martindale)50000 cycles
Seat foam density55 kg/m³
Backrest foam density45 kg/m³
Foam rebound rate55%
Net weight per single seat35 kg
Recommended annual service life under normal use5 years
Fabric flame retardant rating (optional upgrade)B1
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWoven polyester fabric with anti-abrasion finish
Armrest capsLacquered solid hardwood (beech/oak)
Floor support stanchions2.5mm thick cold-rolled steel with black powder coating
Seat/back cushion paddingCold-cure molded PU foam
Inner structural panels10mm thick multi-layer plywood
Structural outer shells3mm thick glass-fiber reinforced polypropylene
Side upholstered panels3mm thick MDF wrapped in matching red fabric
Seat pivot shaft45# carbon steel with high-strength nylon bushings
Return mechanism springsZinc-plated dual steel springs
Floor mounting fastenersGalvanized hex socket expansion bolts with plastic dust covers
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat return mechanismDual-spring automatic silent tip-up when unoccupied
Installation methodPermanent floor-fixed via expansion bolts to concrete substrates
Ganging configurationPre-aligned adjacent double-seat units for continuous row installation
Backrest ergonomicsFixed inclined contoured back with 100° torso angle for prolonged viewing
Seat operationCounterbalanced tip-up with 90° vertical fold to maximize row clearance
Perforated side panel ventilationTextured perforated back side panel for air circulation
Hardware corrosion protectionPowder-coated and zinc-plated metal components for indoor public venue use
Custom color compatibilityFabric color customizable to match venue Pantone specifications
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Knockdown packaging configuration2 double-seat units per export carton
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Lecture hall applicationFixed row installation for university/college lecture halls with continuous sightlines
Performance theater applicationGanged row seating for proscenium theaters and performing arts centers
Conference hall applicationPermanent seating for government and corporate assembly halls
Cinema applicationUpgradable fabric for independent cinemas requiring classic red seating
Church/auditorium applicationDurable fixed seating for religious assembly and community auditoria
Recommended installation noteRequires level concrete subfloor with pre-marked bolt positions for alignment
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

BS EN 12727:2001Applies to strength, durability and safety requirements for public seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-RED-T2-WA

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-RED-T2-WA

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-RED-T2-WA打开导出工具

页面快速操作

发布采购询价

产品描述

The model AUD-RED-T2-WA unbranded double-seat fixed floor-mounted auditorium chair delivers classic, purpose-built public assembly seating designed for continuous row configurations. Its visual profile features rich red woven fabric upholstery across seats, backrests and matching side panels, paired with warm lacquered solid wood armrest caps that contrast sharply with the matte black powder-coated steel T-stanchions supporting the structure. Each double-seat unit is pre-aligned to connect seamlessly with adjacent units, creating clean, uniform rows suited to spaces requiring unobstructed, consistent sightlines. Construction balances durability and comfort through carefully selected layered materials. The seat and back cushions rest on high-density cold-cure molded PU foam, supported internally by multi-layer plywood panels and encased in glass-fiber reinforced polypropylene structural shells. Seats pivot on high-strength carbon steel shafts fitted with nylon bushings, operated by zinc-plated dual steel springs that deliver silent, automatic return when seats are unoccupied. Metal components receive powder coating or zinc plating to resist corrosion during regular indoor public use, while the wood armrests have a smooth lacquered finish for long-wearing tactile comfort. Functional design supports high-traffic public use: the counterbalanced tip-up seat folds fully vertical to maximize row clearance for easy patron passage, while the fixed contoured backrest holds a 100° torso angle to support comfortable viewing over extended periods. Textured perforated back side panels promote air circulation to improve occupant comfort in densely occupied spaces. Each single seat supports a 150kg static load, with abrasion-resistant upholstery rated for heavy repeated use, and the tip-up mechanism engineered to withstand extensive operation cycles. This seating is suitable for a broad range of commercial and institutional spaces, including university lecture halls, proscenium theaters, corporate and government conference halls, independent cinemas seeking classic red seating aesthetics, religious assembly spaces, and community auditoria. It requires permanent installation to a level concrete subfloor using expansion bolts, with pre-marked bolt positions needed to maintain proper row alignment. Procurement teams should note that units ship in knockdown packaging, with each set requiring reference assembly time to install on prepared substrates. The upholstery may be upgraded for cinema applications, and units are designed to gang together to create custom row lengths tailored to specific venue layouts.
