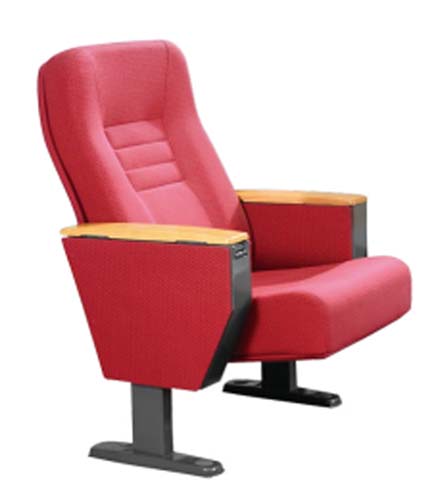

Fixed Floor-Mounted Ganged Red Upholstered Auditorium Chair with Hardwood Armrests Specifications

AUD-RED-WDARM-580

代码:EAD8LEV1
获取供应商报价
2026-08-23 20:49人气: 33
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-RED-WDARM-580

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (seat open)580 x 820 x 1015 mm
Seat height (top of cushion to floor)460 mm
Center-to-center seat pitch (ganged rows)580 mm
Depth with seat folded closed575 mm
Armrest top height above floor660 mm
Seat cushion usable width480 mm
Seat cushion usable depth450 mm
Backrest total height above seat555 mm
Side modesty panel height350 mm
Floor mounting plate length per pedestal320 mm
Pedestal column cross-section60 x 60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended static user load per seat150 kg
Seat mechanism cycle life100000 cycles
Foam density (seat cushion)55 kg/m³
Foam density (backrest cushion)45 kg/m³
Foam rebound rate60%
Net weight per seat28 kg
Upholstery fabric abrasion resistance50000 Martindale cycles
Standard minimum row layout5 seats
Warranty period for structural components5 years
Available upholstery color count12
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryHeavy-duty woven fabric, red finish, optional flame-retardant treatment
Seat cushion coreCold-molded high-flexibility polyurethane foam, 80mm thick
Backrest coreContoured cold-molded polyurethane foam, 60mm thick, horizontal channel segmentation
Armrest top surfaceNatural solid beech hardwood, clear varnish finish, smooth edge
Armrest side supportCold-rolled steel bracket, black electrostatic powder coat, fabric-upholstered side panel
Structural pedestal frameCold-rolled square steel tube, 2.0mm wall thickness, black powder coat
Floor mounting plates4mm thick hot-rolled steel, black powder coat, pre-drilled anchor holes
Internal support panels7mm thick high-density multilayer plywood, edge-sealed
Side modesty panelsFabric-upholstered plywood, red match upholstery
Seat return mechanismPneumatic damper with steel pivot pins, lubricated nylon bushings
Seam constructionHigh-tenacity polyester thread, 8 stitches per inch
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat operationGravity/pneumatic damped tip-up seat that folds automatically upright when unoccupied
Seat return behaviorSlow silent return with no sudden impact, damping prevents noise during seat closure
Installation methodPermanent floor-mounted via expansion anchors into concrete or raised venue flooring
Ganging capabilityPre-configured for continuous row installation with aligned armrests and shared side panels
Back support functionContoured segmented lumbar support with horizontal channel padding to reduce back fatigue
Armrest functionWide flat hardwood surface suitable for note-taking and resting arms during events
Noise reduction designDamped pivot, fabric upholstery and rubber bumper stops to minimize noise during use
Optional accessory compatibilityPre-drilled mounting points for row number plates, rear book nets and cup holders
Position fixationNon-swivel, non-reclining fixed seating position optimized for audience viewing
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Auditorium and lecture hall installationFixed ganged seating for universities, schools and corporate training venues with high daily traffic
Cinema and theater venue useQuiet damped tip-up seat and comfortable padding suited for movie and performance audiences
Conference hall and government assembly spaceFormal hardwood armrests and professional red upholstery suitable for official meeting environments
Church and community center installationDurable construction and easy row access suits weekly public gatherings and events
Courtroom and formal hearing room useFixed non-adjustable seating maintains orderly row layout for formal proceedings
Recommended installation surfaceLevel concrete or raised access venue flooring secured with expansion anchors
Cleaning and maintenance suitabilitySmooth fabric and wood surfaces allow regular vacuuming and wipe cleaning between events
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002Test methods for strength and stability of public seating, applicable for structural validation
EN 1021-1:2014Upholstered furniture flammability test for cigarette ignition resistance
EN 1021-2:2014Upholstered furniture flammability test for match flame ignition resistance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Standard for general-purpose office and public seating, applicable for static load and durability testing
ANSI/BIFMA X5.4-2012Standard for lounge and public seating durability and structural performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to hardwood armrest components
GB/T 3325-2017General technical requirements for metal furniture, applicable to steel pedestal frame
GB 20286-2006Flame retardant requirements for public venue furniture upholstery and components
GB/T 16799-2008Technical requirements for polyurethane foam used in furniture upholstery
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to hardwood armrest components;
2. GB/T 3325-2017:General technical requirements for metal furniture, applicable to steel pedestal frame;
3. GB 20286-2006:Flame retardant requirements for public venue furniture upholstery and components;
4. GB/T 16799-2008:Technical requirements for polyurethane foam used in furniture upholstery;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-RED-WDARM-580

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-RED-WDARM-580

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-RED-WDARM-580打开导出工具

页面快速操作

发布采购询价

产品描述

The Fixed Floor-Mounted Ganged Red Upholstered Auditorium Chair with Hardwood Armrests, model AUD-RED-WDARM-580, is an unbranded public seating solution designed for consistent, orderly row layouts in high-traffic spaces. Visually, it features a rich red heavy-duty woven fabric upholstery paired with smooth, clear-varnished natural solid beech hardwood armrest tops, framed by matte black powder-coated steel structural elements for a polished, professional appearance. Units are pre-configured for continuous ganged row installation, with aligned armrests and shared side panels that create clean, unbroken sightlines and uniform row spacing; the gravity-activated tip-up seat folds automatically to an upright position when unoccupied, maximizing clear aisle space between rows. Its construction balances durability and occupant comfort: the structural pedestal uses 2.0mm wall thickness cold-rolled square steel tube, secured to level concrete or raised access flooring via 4mm thick pre-drilled hot-rolled steel mounting plates, with edge-sealed high-density multilayer plywood forming internal support panels. Seating surfaces use cold-molded high-flexibility polyurethane foam, with an 80mm thick seat cushion and 60mm thick contoured backrest featuring horizontal channel segmentation for targeted lumbar support, all wrapped in abrasion-resistant fabric with optional flame-retardant treatment. Wide, flat hardwood armrests sit at a comfortable height for resting arms or taking notes, while damped pivot mechanisms, fabric upholstery, and rubber bumper stops eliminate sudden impact noise during seat return or use. This seating is well suited for a broad range of commercial and institutional spaces, including university and school lecture halls, corporate training rooms, cinemas, theaters, conference halls, government assembly spaces, churches, community centers, and formal courtrooms, where fixed, orderly seating and durable construction support regular high-volume use. Its quiet operation suits venues where noise disruption would interfere with events or proceedings, while its formal red upholstery and hardwood accents align with both traditional and contemporary formal space design. For procurement, stakeholders should note that each unit ships across two cartons, with a per-set assembly time of 40 minutes, and plan for permanent floor anchoring during installation. The ganged configuration requires advance row layout planning to match venue aisle and egress requirements, and buyers may select the optional flame-retardant upholstery treatment to align with specific venue safety policies. The product supports a recommended static user load of 150kg per seat, with tested mechanism cycle life and fabric abrasion resistance suited to daily repeated public use.
