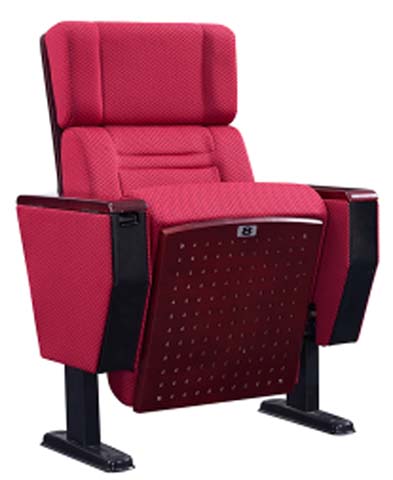

Fixed Floor-Mounted Burgundy Fabric Auditorium Chair with Dark Wood Armrests Specifications

AUD-FX-600RD-WD

代码:F0XAJVV1
获取供应商报价
2026-08-23 21:01人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FX-600RD-WD

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (single seat)600 x 760 x 1020 mm
Seat height from floor460 mm
Center-to-center seat spacing (row installation)600 mm
Seat cushion usable depth460 mm
Seat cushion foam thickness110 mm
Backrest foam thickness130 mm
Armrest surface width80 mm
Armrest height from floor640 mm
Recommended row spacing (aisle clearance)900 mm
Inner plywood seat panel thickness11 mm
PP structural shell thickness (back)5 mm
Cold-rolled steel support leg thickness2.5 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per single seat28 kg
Recommended static user load capacity260 kg
Seat foam density55 kg/m³
Back foam density45 kg/m³
Fabric abrasion resistance50000 cycles
Seat tip-up mechanism cycle durability100000 cycles
Steel frame static load rating1100 kg
Standard warranty period for commercial use5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBurgundy woven commercial fabric, fire-retardant treated
Cushion paddingCold-molded high-resilience polyurethane foam, shape-retentive
Armrest capsDark stained solid hardwood with smooth polyester paint finish
Armrest supports and side trimBlack impact-resistant polypropylene with matte finish
Support frame and legs2.5mm thick cold-rolled steel, black powder-coated rust-resistant finish
Under-seat modesty panelPerforated dark burgundy hard panel with acoustic perforations
Inner structural panels11mm thick multi-layer hot-pressed plywood for seat and back pans
Mounting hardwareGalvanized steel expansion floor anchors with black plastic dust covers
Seat number plate holderEmbedded ABS plastic plate with matte silver finish
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Floor mounting systemFixed double-post stilt base secured with 4 expansion anchors per seat, no movement
Seat tip-up mechanismSpring-loaded automatic return with quiet damping, folds vertically for aisle clearance
Lumbar supportSegmented contoured high back with built-in raised lumbar padding, fixed ergonomic curve
Writing tablet compatibilityArmrests pre-configured for optional concealed fold-out writing tablet installation
Seat numberingIntegrated recessed panel for custom seat/row number plate installation
Acoustic performancePerforated modesty panel provides sound absorption to reduce hall echo
Armrest utilityFlat wide wood armrest surface supports arm weight and optional cup holder accessory
Tip-up seat dampingReturn mechanism includes soft-close buffer to prevent slamming during automatic fold-up
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Auditorium and theater spacesFixed row installation for performance venues with acoustic panel performance
Lecture halls and conference centersOptional writing tablet compatibility supports note-taking during events
Corporate meeting rooms and board training roomsFormal ergonomic fixed seating for long-duration presentations
Cinema and screening roomsTip-up seat design maximizes aisle clearance between rows
School and university assembly hallsDurable steel frame and heavy-use fabric withstand high daily traffic
Church and public ceremonial venuesDark wood trim and formal burgundy finish suit traditional venue aesthetics
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000Strength and durability requirements for non-domestic fixed public seating
EN 1021-1:2014Upholstered furniture fire resistance (smouldering cigarette ignition)
EN 13501-1:2018Construction product fire classification for seating components
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 35450-2017Fixed public seating (auditorium/theater) safety, strength and durability requirements
GB 20286-2006Fire performance requirements for upholstered furniture in public venues
GB/T 19889.3-2005Acoustic performance measurement for seating in performance spaces
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 35450-2017:Fixed public seating (auditorium/theater) safety, strength and durability requirements;
2. GB 20286-2006:Fire performance requirements for upholstered furniture in public venues;
3. GB/T 19889.3-2005:Acoustic performance measurement for seating in performance spaces;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FX-600RD-WD

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FX-600RD-WD

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FX-600RD-WD打开导出工具

页面快速操作

发布采购询价

产品描述

The Fixed Floor-Mounted Burgundy Fabric Auditorium Chair (model AUD-FX-600RD-WD) is an unbranded public seating solution designed for high-traffic formal venues, presenting a polished, classic visual profile suited to both traditional and contemporary interior schemes. Its seating surfaces are finished in rich burgundy woven commercial fabric, paired with dark stained solid hardwood armrest caps that carry a smooth polyester paint finish for a refined, warm contrast. When installed in rows, seats align at consistent center spacing to create orderly, uncluttered seating layouts, with a perforated dark burgundy modesty panel positioned under each seat that integrates seamlessly with the upholstery tone while supporting room acoustic performance. Construction is built for long-term heavy use, anchored by a 2.5mm thick cold-rolled steel support frame finished with rust-resistant black powder coating, secured to floors via a fixed double-post stilt base with four galvanized steel expansion anchors per seat to eliminate unwanted movement. Seat and back pans use 11mm multi-layer hot-pressed plywood, padded with cold-molded high-resilience polyurethane foam that retains its shape over extended use; seat foam carries a higher density than back foam for supportive weight distribution, while armrest supports and side trim are formed from matte black impact-resistant polypropylene. The fire-retardant treated woven upholstery is engineered to withstand repeated abrasion from regular use, and all mounting hardware is fitted with black plastic dust covers for a clean, finished look. Functional design prioritizes user comfort and venue operational efficiency. A spring-loaded automatic tip-up seat mechanism with quiet damping folds vertically when not in use to maximize aisle clearance between rows, while the segmented contoured high back incorporates fixed built-in raised lumbar padding aligned to ergonomic curves for sustained comfort during long events. The perforated under-seat modesty panel absorbs sound to reduce hall echo, armrests are pre-configured to support optional concealed fold-out writing tablets and cup holder accessories, and an integrated recessed panel accommodates custom seat and row number plates for easy venue navigation. This chair is well suited for fixed row installation in auditoriums, theaters, and cinemas where acoustic performance and clear aisle access are priorities, as well as lecture halls, conference centers, corporate training rooms, and university assembly halls where durable, ergonomic seating supports extended presentations and note-taking. Its formal burgundy finish and dark wood trim also complement the traditional aesthetic of church and public ceremonial spaces. Procurement teams should note that each chair ships across two cartons, with reference assembly time of 40 minutes per unit; pre-installation planning should account for fixed floor anchoring requirements, and teams can coordinate optional add-on writing tablets or cup holders at the time of order to match venue functional needs. The robust steel frame and heavy-use upholstery are calibrated to withstand consistent high daily foot traffic across public and commercial settings.
