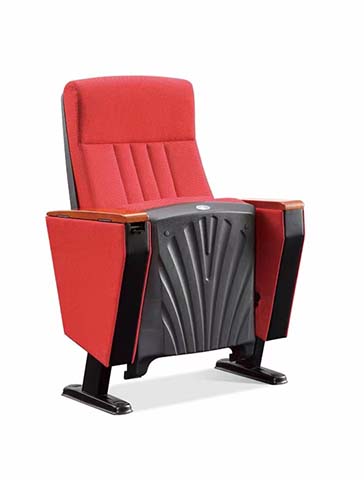

Fixed Floor-Mounted Auditorium Chair with Foldable Writing Tablet, Red Upholstery and Wood-Capped Armrests Specifications

AUD-FXRW-063

代码:FHDWHSV1
获取供应商报价
2026-08-23 19:15人气: 19
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FXRW-063

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall per-seat dimensions630 x 930 x 1040 mm
Seat height above finished floor450 mm
Seat usable depth460 mm
Seat inner usable width510 mm
Armrest top surface height645 mm
Armrest top surface width60 mm
Deployed writing tablet working height625 mm
Fully stowed depth (seat tipped up, tablet retracted)760 mm
Recommended minimum row spacing950 mm
Backrest vertical usable height715 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat net weight28 kg
Recommended maximum static user load150 kg
Seat cushion foam density60 kg/m³
Backrest foam density47 kg/m³
Seat cushion padding thickness97 mm
Backrest padding thickness125 mm
Seat return mechanism cycle life100000 operations
Upholstery fabric abrasion resistance50000 Martindale cycles
Standard product warranty period5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryRed woven commercial polyester fabric, vertical channel stitching on lower back
Seat and back paddingHigh-density cold-cure molded polyurethane foam, flame-retardant additive option
Armrest top capsPolished solid beech wood, clear lacquer finish
Armrest support frames2.0mm thick hot-rolled steel, matte black electrostatic powder coating, anti-rust treated
Floor support legs80 x 40 x 1.5mm rectangular steel tube, black powder coat, floor mounting base plates
Writing tablet housing panelMolded impact-resistant ABS plastic, decorative vertical ribbed texture
Writing tablet work surface18mm thick HDF core with fire-resistant laminate surface, rounded edges
Side modesty panelsPlywood core upholstered in matching red fabric, 3mm thickness
Internal seat pan structure15mm thick multi-layer plywood, fixed to steel seat frame with 4mm steel corner brackets
Seat return hardwareZinc-plated steel spring with damping buffer, anti-noise rubber pads
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up functionSpring-damped automatic quiet return to vertical stowed position when unoccupied
Writing tablet operationFold-out rotating mechanism from rear divider, locks in horizontal use position, stows flush when unused
Floor mounting systemFixed to concrete/raised floor with corrosion-resistant expansion bolts through base plates
Back support structureFixed non-reclining upright backrest with contoured vertical channel stitching
Egress clearance designAngled side panel geometry with tipped-up seat provides 300mm minimum passable aisle width per row
Noise damping featuresRubber anti-collision pads on seat frame and tablet pivot points to eliminate operation noise
Row alignment compatibilityStandardized leg base footprint allows continuous straight or curved row installation
Backrest fixed recline angle11 degrees
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Tiered lecture hall applicationInstalled in fixed rows for university and college classroom lecture seating
Public auditorium applicationUsed for theater, conference hall and government assembly venue fixed seating
Corporate training room applicationInstalled in multi-purpose training and presentation spaces
Cultural performance venue applicationSuitable for school auditoriums and cultural center event spaces
Recommended floor compatibilityInstalled on concrete, raised access or tiered wood flooring with appropriate anchor bolts
Customization compatibilityAvailable in alternate fabric colors and writing tablet configurations to match venue interior design
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000Strength, durability and safety requirements for fixed auditorium and public seating
EN 1022:2018Furniture seating stability test methods for fixed floor-mounted installations
EN 13501-1:2018Fire classification of construction products for upholstered public seating materials
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood armrest and panel components
GB/T 3325-2017General technical requirements for metal furniture, applicable to steel frame and leg components
GB 20286-2006Flame retardant requirements for public venue furniture upholstery and materials
GB/T 19001-2016Quality management system guidance for production and installation of public seating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood armrest and panel components;
2. GB/T 3325-2017:General technical requirements for metal furniture, applicable to steel frame and leg components;
3. GB 20286-2006:Flame retardant requirements for public venue furniture upholstery and materials;
4. GB/T 19001-2016:Quality management system guidance for production and installation of public seating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FXRW-063

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FXRW-063

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FXRW-063打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded AUD-FXRW-063 fixed floor-mounted auditorium chair is purpose-built for continuous row public seating, presenting a tailored, formal visual profile. Its upright tall back features vertical channel stitching on the lower section, trimmed with polished solid beech wood armrest caps finished in clear lacquer, and finished in rich red woven commercial polyester upholstery. When configured in straight or curved aligned rows, the chair maintains a cohesive, streamlined appearance; when seats tip up and writing tablets stow flush, the angled side modesty panels create consistent, unobstructed aisle clearances for smooth patron egress. Constructed for high-frequency public use, the chair is built around a rigid steel support system: 2.0mm thick hot-rolled steel armrest frames with matte black anti-rust powder coating connect to 80 x 40 x 1.5mm rectangular steel tube floor legs, fixed to flooring via corrosion-resistant expansion bolts through dedicated base plates. The seat and back rest on 15mm multi-layer plywood internal pans, padded with high-density cold-cure molded polyurethane foam at targeted densities (60 kg/m³ for the seat cushion, 47 kg/m³ for the backrest) for supportive, long-lasting comfort, with an optional flame-retardant additive for padding. The foldable writing tablet features an impact-resistant molded ABS housing with subtle vertical ribbed texture, paired with an 18mm HDF core work surface clad in fire-resistant laminate with rounded edges. Rubber anti-collision pads at all pivot points, paired with a spring-damped automatic quiet seat return mechanism rated for 100,000 operations, eliminate disruptive operational noise, while the tablet locks firmly in its horizontal deployed position for stable use. This seating solution is ideal for tiered university lecture halls, public auditoriums, conference and government assembly venues, corporate training rooms, school auditoriums, and cultural center event spaces, compatible with concrete, raised access, and tiered wood flooring. For procurement, note each chair ships in two cartons, requires 40 minutes of assembly per unit, and supports custom fabric color and writing tablet configuration adjustments to match venue interior schemes. The chair supports a maximum static user load of 150 kg, and standardized leg footprints enable flexible row layout alignment to match venue floor plans.
