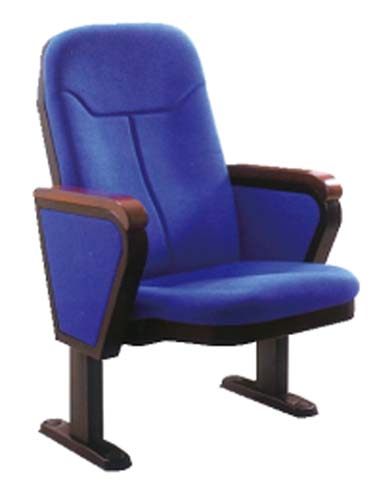

Fixed Floor-Mounted Blue Fabric Auditorium Chair with Solid Wood Armrests Specifications

AUD-FAB-BLU-2PED

代码:GH7W12V1
获取供应商报价
2026-08-23 18:56人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FAB-BLU-2PED

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall installed dimensions580 x 700 x 1010 mm
Seat height from finished floor460 mm
Seat cushion depth490 mm
Backrest total height from seat surface550 mm
Single armrest width90 mm
Armrest height from seat surface220 mm
Support pedestal footprint length per leg220 mm
Required minimum row-to-row spacing1000 mm
Seat cushion usable width between armrests470 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per chair net weight28 kg
Recommended static user load capacity150 kg
Seat foam density60 kg/m³
Backrest foam density55 kg/m³
Seat foam maximum crown thickness150 mm
Backrest foam maximum thickness140 mm
Fabric abrasion resistance (Martindale)50000 cycles
Seat return mechanism noise level25 dB
Standard product warranty5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBlue woven public-grade polyester fabric
Seat cushion coreCold-molded high-resilience polyurethane foam
Backrest coreContoured cold-molded polyurethane foam
Armrest top cap26 mm thick solid beech/oak with varnish finish
Armrest inner side panelFabric-upholstered multi-layer plywood
Support pedestal frame1.5 mm wall-thickness square steel tube, black powder coat
Floor mounting footplate2.0 mm thick cold-rolled steel plate
Seat/back inner structural panel7 mm thick curved pressed plywood
Seat return mechanismSteel spring with damping buffer
Upholstery seam stitch pitch8 mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Floor mounting systemPermanent bolting with 8x60 mm anti-rust expansion screws
Seat operationGravity/damped spring automatic tip-up return
Ergonomic back supportContoured molded back with built-in lumbar curve
Armrest functionFixed solid wood arm caps with upholstered side bolsters
Structural reinforcement40x20x1.2 mm cross-brace steel tube between pedestals
Acoustic performanceSound-dampening padded upholstery reduces echo
Customization optionUpholstery color and fabric treatment customizable
Optional accessory compatibilitySupports row number plates, cup holders, and under-seat book nets
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Large auditorium and theater seatingFixed row installation for permanent audience seating
University lecture hall seatingErgonomic contoured support for 2+ hour class and lecture use
Corporate conference and report hall seatingFormal wood-trim appearance matches professional meeting space design
Government and institutional meeting room seatingFixed installation meets public venue safety and stability requirements
Cinema and performance venue seatingPadded cushion and back reduce fatigue during long screenings
School multi-purpose hall seatingDurable steel and wood construction resists heavy daily student use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Furniture seating strength and stabilityEN 12520:2015
Upholstered furniture fire resistanceEN 1021:2014
Office and public seating ergonomic dimensionsEN 1335:2020
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Furniture structural strength for public seatingGB/T 3324
Upholstered furniture safety for public useGB 20286
Fixed metal furniture coating performanceGB/T 13667.1
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Furniture structural strength for public seating:GB/T 3324;
2. Upholstered furniture safety for public use:GB 20286;
3. Fixed metal furniture coating performance:GB/T 13667.1;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FAB-BLU-2PED

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FAB-BLU-2PED

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FAB-BLU-2PED打开导出工具

页面快速操作

发布采购询价

产品描述

This fixed floor-mounted auditorium chair, model AUD-FAB-BLU-2PED, delivers purpose-built public seating for high-traffic commercial and institutional spaces, with a refined, professional aesthetic balanced for long-term durability. Its streamlined form features integrated solid wood armrests that add warm, formal wood-trimmed detail to the cool, structured blue woven public-grade polyester upholstery, arranged for clean, aligned row installation with a required minimum row-to-row spacing of 1000 mm. Each unit measures 580 x 700 x 1010 mm when fully installed, with a 460 mm seat height from finished floor, 490 mm seat cushion depth, 550 mm backrest height from the seat surface, 90 mm wide armrests positioned 220 mm above the seat, and a 220 mm support pedestal footprint per leg for stable, unobtrusive placement. The chair’s robust construction pairs premium, wear-resistant materials for extended heavy use: seat and back cores use cold-molded high-resilience polyurethane foam, with 60 kg/m³ density seat foam reaching 150 mm maximum crown thickness and 55 kg/m³ density contoured back foam reaching 140 mm maximum thickness, shaped with a built-in lumbar curve for ergonomic support. Inner structural panels use 7 mm thick curved pressed plywood, with multi-layer plywood forming armrest inner sides upholstered to match seat and back surfaces. Armrest top caps are 26 mm thick varnished solid beech or oak, while the dual pedestal base uses 1.5 mm wall-thickness black powder-coated square steel tube, reinforced with a 40x20x1.2 mm cross-brace between pedestals, and 2.0 mm thick cold-rolled steel floor mounting footplates. The fabric carries a 50,000 cycle Martindale abrasion resistance rating, and the damped steel spring seat return mechanism enables quiet, automatic gravity-activated tip-up when unoccupied, with sound-dampening padded upholstery that reduces room echo. The chair supports a 150 kg recommended static user load, weighs 28 kg net per unit, and secures to floors with 8x60 mm anti-rust expansion screws for permanent stability. This seating is suited for large auditoriums, theaters, university lecture halls, corporate conference and report halls, government and institutional meeting rooms, cinemas, performance venues, and school multi-purpose halls, where its formal appearance matches professional design standards, ergonomic contours support comfort for multi-hour events, and heavy-duty steel and wood construction withstands constant daily use. Upholstery color and fabric treatment are available for customization to align with specific venue design schemes. For procurement, note each chair ships across 2 cartons, with 40 minutes of assembly time required per set, a packaged gross weight of 23 kg per set, 0.26 m³ carton volume per set, and a 135-set loading capacity for a 20GP container at 85% space utilization to plan delivery and installation timelines appropriately. The unbranded design allows flexible integration into diverse venue branding and decor frameworks without conflicting visual identity elements.
