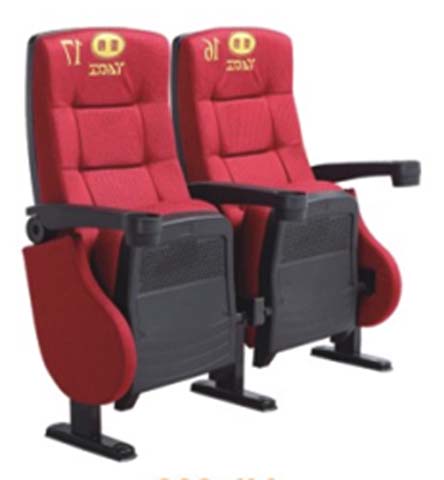

商品供应商2-Seat Ganged Fixed Commercial Cinema Auditorium Seating,Linen look Upholstery
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall unit dimensions (2-seat ganged) | 1200 x 800 x 1095 mm | |
|---|---|---|
| Armrest center-to-center spacing per seat | 600 mm | |
| Seat surface height from finished floor | 450 mm | |
| Seat cushion usable depth | 460 mm | |
| Clear individual seat width between armrests | 570 mm | |
| Armrest top height from finished floor | 630 mm | |
| Minimum required row-to-row pitch for egress | 900 mm | |
| End modesty panel height from floor | 720 mm | |
| Integrated cupholder inner diameter | 90 mm | |
| Floor mounting foot plate length | 180 mm | |
| Cushion thickness (compressed) | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Per-seat static load capacity | 1470 N | |
|---|---|---|
| Per-seat recommended user weight limit | 250 kg | |
| Seat tip-up mechanism cycle durability | 100000 cycles | |
| Seat foam density (seat cushion) | 65 kg/m³ | |
| Seat foam density (backrest cushion) | 57 kg/m³ | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Net weight per individual seat | 28 kg | |
| Structural warranty period | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat and back upholstery | Quilted red commercial flame-retardant polyester fabric | |
|---|---|---|
| Seat cushion core | Cold-molded high-resilience polyurethane foam | |
| Backrest cushion core | High-resilience polyurethane foam with lumbar contouring | |
| Internal seat support | S-shaped serpentine steel springs | |
| Armrest assembly | One-piece injection-molded high-impact black polypropylene | |
| Outer seat/back shell | Injection-molded impact-resistant polypropylene | |
| Support frame and stanchions | High-strength steel with electrostatic powder-coated black finish | |
| End row modesty panel | Fabric-upholstered curved hard substrate panel | |
| Mounting hardware | Zinc-plated steel expansion bolts for floor fixation | |
| Headrest embroidery | Gold/yellow woven thread for seat number and venue branding | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seat tip-up operation | Gravity counterweight automatic return to vertical position when unoccupied | |
|---|---|---|
| Floor mounting system | Fixed T-bar stanchion feet anchored to finished floor or riser for permanent row installation | |
| Armrest cupholder feature | Molded recess integrated into top of each shared armrest for stable beverage placement | |
| Backrest ergonomics | Fixed contoured upright back with segmented padding for forward viewing support | |
| Ganged row configuration | Shared armrests between adjacent seats to maximize row seating density | |
| Seat numbering integration | Embroidered seat number and venue logo positioned on upper headrest for visibility in low light | |
| Maintenance feature | Removable upholstered pads and replaceable plastic armrests/shells for on-site repair | |
| Acoustic performance | Upholstered padding provides incidental sound absorption to reduce venue echo | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Commercial cinema auditoriums | Permanent row installation with cupholders and view-optimized back angle for movie viewing | |
|---|---|---|
| Indoor private screening rooms | Quilted red finish with customizable embroidery for premium home or private theater spaces | |
| University lecture halls with screening capabilities | Fixed floor mounting and tip-up seats for efficient egress and long-duration seating | |
| Performing arts center screening venues | Durable construction and acoustic-friendly upholstery for multi-use public assembly spaces | |
| Standard row layout installation | 900mm minimum row pitch to ensure adequate legroom and ADA-compliant egress | |
| Replacement seating for existing cinema venues | Standard 600mm center spacing to match legacy riser and anchor mounting positions | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 12727:2016 | Strength, durability and safety requirements for fixed auditorium and cinema seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstery cigarette ignition resistance standard for public seating flammability | |
| EN 13722:2005 | Test methods for structural performance of fixed and folding auditorium chairs |
美国及加拿大家具标准
| ANSI/BIFMA X5.4-2020 | Safety and performance standard for public and lounge seating applicable to fixed cinema seats | |
|---|---|---|
| ANSI/BIFMA M7.1-2019 | Standard test method for furniture durability cyclic load testing |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements applicable to fixed wooden/metal furniture frames for public seating | |
|---|---|---|
| GB/T 35458-2017 | Safety, strength and durability requirements for public theater and auditorium seating | |
| GB 20286-2006 | Flame retardant performance requirements for upholstered furniture in public assembly venues |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements applicable to fixed wooden/metal furniture frames for public seating; 2. GB/T 35458-2017:Safety, strength and durability requirements for public theater and auditorium seating; 3. GB 20286-2006:Flame retardant performance requirements for upholstered furniture in public assembly venues; 最终交付参数、检测报告和验收标准以双方采购合同为准。
