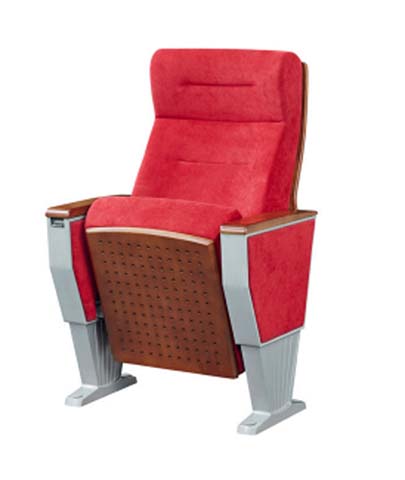

Red Fabric Fixed Floor-Mounted Auditorium Chair with Wood Trim and Aluminum Legs Specifications

AUD-FLX-580-RD

代码:RNU8EQV1
获取供应商报价
2026-08-23 20:29人气: 32
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FLX-580-RD

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (seat open)580 x 750 x 1080 mm
Seat center distance580 mm
Seat height (from finished floor)450 mm
Inner usable seat width490 mm
Armrest top height above floor620 mm
Armrest cap width80 mm
Seat foam thickness140 mm
Back foam thickness135 mm
Backrest height above seat630 mm
Seat depth (usable sitting surface)465 mm
Aluminum leg base footprint400 x 80 mm
Perforated modesty panel thickness15 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended static load per seat200 kg
Seat return mechanism cycle life100000 cycles
Net weight per seat32 kg
Cushion foam density40 kg/m³
Fabric upholstery abrasion resistance50000 Martindale cycles
Foam rebound rate45%
Metal component salt spray resistance18 h
Seam stitching pitch30 mm
Optional writing tablet static load55 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryRed commercial woven fabric, flame-retardant treated
Seat and back cushion fillingHigh-density cold-cured molded polyurethane foam
Armrest capsSolid oak wood with clear lacquer finish, metal edge trim
Support legs and arm framesDie-cast aluminum alloy, silver powder-coated, fluted column detail
Under-seat modesty panelPerforated beech veneer plywood with matte wood finish
Side panels between arms and seatPlywood core with matching red fabric upholstery
Internal support frame15mm thick multi-layer plywood with metal reinforcement brackets
Seat return mechanismSteel spring with hydraulic damper for quiet slow return
Floor mounting hardwareHex socket expansion bolts with plastic dust caps
Back outer trimWood veneer edge strip matching armrest finish
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up operationSpring-damper assisted automatic slow return to vertical when unoccupied
Floor installation methodPermanent bolt-down fixing via dual aluminum pedestal feet
Ergonomic back supportContoured molded back with built-in lumbar support indentation
Modesty panel acoustic functionPerforated wood panel provides sound diffusion and absorption
Optional accessory compatibilityArmrest-integrated retractable writing tablet available as add-on
Row alignment featureModular leg design supports straight or curved row installation
Seat damping functionHydraulic damper eliminates loud slamming during seat return
Surface maintenanceStain-resistant fabric finish allows spot cleaning for high-traffic use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Auditorium and theater hallsFixed row installation for extended viewing, acoustic panel improves audio performance
Conference and lecture hallsErgonomic support for all-day events, compatible with writing tablet accessories
Government and institutional assembly hallsFormal wood trim finish, durable heavy-duty construction for high-frequency public use
School and university auditoriumsStain-resistant fabric, quiet seat return for low-disruption learning environments
Church and performing arts venuesComfortable high-back design, modular layout fits custom curved or straight rows
Cinema venues (non-reclining)Tip-up seat maximizes aisle space, durable upholstery withstands high daily foot traffic
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002Audience seating - test methods and requirements for mechanical safety and durability
EN 1022:2018Furniture - seating - determination of stability, applicable to fixed installed seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emission of wood components
GB/T 3325-2017Metal furniture general technical requirements, applicable to metal frame strength and finish durability
GB 18583-2008Limit of harmful substances in adhesives, applicable to plywood and foam assembly adhesive emissions
GB 20286-2006Fire retardant products for public places, flame retardancy requirement for upholstery in assembly occupancies
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances in wood furniture, applicable to formaldehyde emission of wood components;
2. GB/T 3325-2017:Metal furniture general technical requirements, applicable to metal frame strength and finish durability;
3. GB 18583-2008:Limit of harmful substances in adhesives, applicable to plywood and foam assembly adhesive emissions;
4. GB 20286-2006:Fire retardant products for public places, flame retardancy requirement for upholstery in assembly occupancies;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FLX-580-RD

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FLX-580-RD

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FLX-580-RD打开导出工具

页面快速操作

发布采购询价

产品描述

The AUD-FLX-580-RD unbranded fixed floor-mounted auditorium chair pairs formal, purpose-built design with durable construction suited to high-traffic public gathering spaces. Visually, the chair features rich commercial red woven fabric upholstery across its contoured high back and seat, accented by warm wood trim details: solid oak armrest caps finished in clear lacquer with subtle metal edge detailing, and a matte perforated beech veneer modesty panel positioned under each seat. The fluted, silver powder-coated die-cast aluminum alloy legs lend a streamlined, professional appearance, while the modular leg design supports seamless alignment for both straight and custom curved row layouts. Construction prioritizes long-term durability and user comfort. The seat and back are padded with high-density cold-cured molded polyurethane foam, with a 40 kg/m³ cushion density and 45% rebound rate, sized to deliver consistent support across extended use. The internal support structure uses 15mm thick multi-layer plywood reinforced with metal brackets, while the steel spring seat return mechanism integrates a hydraulic damper to eliminate loud slamming, tested to 100,000 operating cycles. Upholstery is treated for flame resistance and rated to 50,000 Martindale abrasion cycles to withstand regular public use, and metal components carry 18 hours of salt spray resistance to resist corrosion over time. Permanent installation uses dual aluminum pedestal feet secured with hex socket expansion bolts capped with plastic dust covers. Key functional benefits include an automatic tip-up seat that returns slowly to vertical when unoccupied to maximize aisle clearance, an ergonomic contoured back with built-in lumbar support, and a perforated modesty panel that delivers sound diffusion and absorption to improve room acoustic performance. The chair is compatible with an optional armrest-integrated retractable writing tablet as an add-on accessory, supporting flexible use needs. This model is suited for a wide range of public venues, including auditoriums, theater halls, conference and lecture spaces, government assembly halls, school and university auditoriums, church and performing arts venues, and non-reclining cinema spaces, with a formal finish suited to institutional settings and quiet operation that minimizes disruption during events. For procurement, note each chair ships across two cartons, with 40 minutes of assembly time per unit, and 135 sets can fit in a 20GP container at 85% space utilization. Each seat supports a 200 kg static load, and purchasers should confirm row layout plans and optional accessory needs prior to order placement to align installation with venue requirements.
