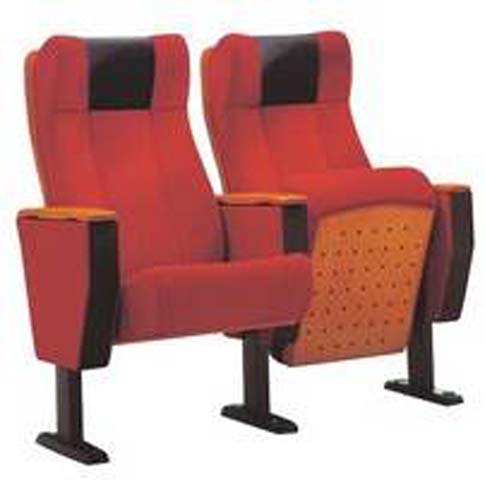

Ganged Floor-Mounted Auditorium Seating with Writing Tablet, Red Upholstery, Perforated Wood Side Panel Specifications

AUD-RD-WT-PS580

代码:RPA4G0V1
获取供应商报价
2026-08-23 21:18人气: 39
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-RD-WT-PS580

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions per seat (tablet open)580 x 785 x 1010 mm
Seat center-to-center spacing580 mm
Seat height above finished floor460 mm
Closed depth (tablet retracted, seat up)575 mm
Clear seat inner width490 mm
Backrest total height760 mm
Writing tablet deployed size290 x 283 mm
Writing tablet thickness18 mm
Armrest width80 mm
Mounting base plate length320 mm
Mounting hole center spacing225 mm
Perforated side panel thickness18 mm
Back foam thickness135 mm
Seat foam thickness150 mm
Seat cushion depth (usable)425 mm
Steel stanchion tube size40 x 80 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per seat28 kg
Recommended static user load150 kg
Writing tablet static load capacity50 kg
Seat auto-return cycle durability50000 cycles
Seat return operating noise8 dB
Perforated panel sound absorption coefficient0.5
Standard product warranty5 years
Standard available upholstery color count12
Seat return damper adjustment time1.5 seconds
Hardware salt spray resistance rating9Grade
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWear-resistant linen-blend fabric, 300g/m², optional flame-retardant treatment
Headrest upper panelBlack matte PU leather, abrasion-resistant, stain-resistant
Seat cushion foamHigh-density cold-cure PU foam, 55kg/m³ density, 40% rebound rate
Backrest foamHigh-density cold-cure PU foam, 60kg/m³ density, supportive contour molding
Structural support frame2.2mm thick cold-rolled steel, phosphated anti-rust, powder-coated black finish
Armrest top surfaceSolid beech wood, 25mm thick, 5-coat polyurethane lacquer finish
Side modesty/acoustic panel18mm thick multi-layer wood composite, perforated, wood veneer finish
Folding writing tablet18mm thick melamine-laminated steel core panel, integrated pen slot
Upholstery seam pitch30 mm
Mounting hardwareGalvanized steel expansion bolts, plastic decorative cover caps
Outer back panel18mm thick molded multi-layer hardboard, wood veneer matching side panels
Seat outer bottom panel13mm thick perforated multi-layer board, honeycomb acoustic holes
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat auto-return mechanismConcealed gravity-damper hinge, lifts seat to vertical when unoccupied
Writing tablet operationRotates 90 degrees from stored armrest position to horizontal writing surface
Floor mounting systemFixed to concrete slab via 4 expansion bolts per stanchion, no floor damage beyond holes
Ganged row alignmentModular connecting brackets align adjacent seats for uniform straight rows
Acoustic performance designPerforated side and seat panels reduce echo, 0.5 sound absorption coefficient
Soft-close seat returnAdjustable damper eliminates impact noise, 1.5s return time
Ergonomic back supportContoured high back with separate headrest zone supports full adult spine
Optional accessory compatibilityPre-drilled mounts for row number plates, cup holders, under-seat book nets
Tablet retraction lockPositive detent holds tablet flush in armrest when not in use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Academic lecture hallsFixed ganged layout with writing tablets supports note-taking during presentations
School auditoriums and assembly hallsDurable construction withstands daily student use, acoustic panels reduce echo
Corporate conference centersFormal professional appearance, uniform row alignment for large events
Small to mid-sized performance theatersComfortable upholstery for 3 hour events, clear sightlines from elevated seat position
Government meeting chambersFixed permanent installation, compliant with public procurement durability standards
Church sanctuary seatingAvailable in custom fabric colors, optional book net for hymnals and materials
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000Strength/durability requirements for ranked auditorium seating
EN 1021-1:2006Upholstered furniture cigarette ignition resistance, standard fire safety
EN 13722:2004Acoustic performance measurement for furniture in assembly spaces
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Standard for large public occupancy seating structural performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood panel components
GB 18584-2001Formaldehyde emission limit for wood-based furniture indoor materials, ≤1.5mg/L
GB/T 24821-2009General technical requirements for public venue seating, structural safety baseline
GB 20286-2006Flame retardant requirements for public place upholstered furniture, optional project spec
GB 18583-2008VOC limit for assembly adhesives, ≤110g/L for indoor use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood panel components;
2. GB 18584-2001:Formaldehyde emission limit for wood-based furniture indoor materials, ≤1.5mg/L;
3. GB/T 24821-2009:General technical requirements for public venue seating, structural safety baseline;
4. GB 20286-2006:Flame retardant requirements for public place upholstered furniture, optional project spec;
5. GB 18583-2008:VOC limit for assembly adhesives, ≤110g/L for indoor use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-RD-WT-PS580

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-RD-WT-PS580

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-RD-WT-PS580打开导出工具

页面快速操作

发布采购询价

产品描述

This ganged floor-mounted auditorium seating offers a polished, functional solution for high-traffic public and commercial gathering spaces, defined by its cohesive formal visual profile. Each unit features rich red fabric upholstery paired with warm solid beech wood armrest tops, contrasted by matte black structural framing and perforated wood-composite side panels finished in matching wood veneer. Modular connecting brackets ensure uniform, straight row alignment, creating a clean, ordered layout that supports clear sightlines across event spaces, while the high contoured back adds a tailored, ergonomic silhouette. The seat folds vertically when unoccupied, keeping aisle access open when the integrated writing tablet is retracted flush against the armrest. Construction prioritizes long-term durability and occupant comfort. The frame is built from thick cold-rolled steel treated for rust resistance and finished with a smooth black powder coating, while seat and back cushions use high-density cold-cure PU foam shaped to support the full adult spine, with a separate abrasion-resistant matte PU leather headrest panel. Wear-resistant linen-blend fabric covers the primary seating surfaces, with optional flame-retardant treatment available for code-compliant installations. The perforated multi-layer wood composite side panels are engineered to reduce ambient echo, supporting clearer audio for presenters and attendees. Practical features are integrated for seamless daily use. A concealed gravity-damper hinge provides soft, quiet auto-return for the seat when unoccupied, eliminating slamming impact, while the folding melamine-laminated writing tablet rotates 90 degrees from its stored position to a flat horizontal surface, complete with an integrated pen slot for note-taking. The floor mounting system secures each stanchion directly to concrete slabs, with no additional floor damage beyond required installation holes. This seating is well suited for a broad range of spaces, including academic lecture halls, K-12 and higher education school auditoriums and assembly halls, corporate conference centers, small to mid-sized performance theaters, government meeting chambers, and church sanctuaries, with custom fabric color options and an available book net accessory for faith-based use cases. Procurement teams should note the product carries a 5-year standard warranty, ships in two cartons per seat set with an per-set assembly time of 40 minutes, and is sold as an unbranded model. Custom flame-retardant upholstery and accessory add-ons should be confirmed at time of order, and loading plans for bulk orders can be aligned to standard 20GP container capacity for efficient shipping.
