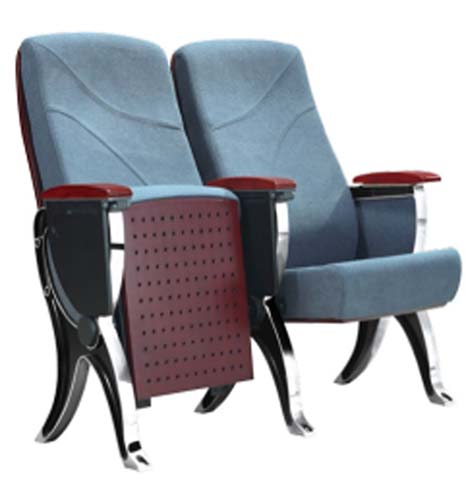

Ganged Fixed-Row Blue Fabric Auditorium Chair with Perforated Fold-Down Writing Tablet Specifications

AUD-FAB-WT-640

代码:TLBFT3V1
获取供应商报价
2026-08-23 17:51人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FAB-WT-640

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions (per seat)640 x 780 x 1040 mm
Seat center-to-center distance640 mm
Floor to finished seat surface height450 mm
Seat usable width (between armrests)505 mm
Seat usable depth (seat front to back)460 mm
Finished armrest top surface height630 mm
Armrest top surface width66 mm
Fold-down writing tablet usable depth250 mm
Overall depth with writing tablet fully deployed860 mm
Minimum required row-to-row spacing1000 mm
Backrest total height (seat surface to top)590 mm
Floor mount foot plate length180 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat net weight25 kg
Maximum recommended static user load per seat150 kg
Seat and back foam density60 kg/m³
Foam resilience (rebound rate)45%
Seat cushion padding thickness80 mm
Backrest padding thickness60 mm
Fabric upholstery abrasion resistance (Martindale)50000 cycles
Upholstery fabric thickness0.8 mm
Seat return mechanism cycle life100000 cycles
Structure static load rating per support leg800 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWoven polyester fabric, blue color, commercial grade
Seat cushion coreCold-molded high-density PU foam, 80mm thickness
Backrest cushion coreContoured cold-molded PU foam, 60mm thickness
Armrest topsSolid hardwood, red stained and lacquered finish
Support frame and legs2.0mm thick cold-rolled steel, black powder-coated finish
Writing tablet panel18mm thick perforated MDF, red lacquered finish
Tablet hinge hardwareZinc-plated steel hinge with polymer friction bushing
Seat return mechanismSteel torsion spring with rubber damping bumper
Seat/back inner support shellInjection-molded PP structural shell
Floor anchor fastenersGalvanized steel expansion bolts, M10 diameter
Seam constructionReinforced polyester stitching, 8 stitches per 30mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up operationGravity-activated automatic return to upright stored position when unoccupied
Writing tablet deploymentFold-down from stored vertical position between seats to horizontal working height
Tablet anti-panic releaseAutomatic upward fold if excess upward force is applied
Ganged row connectionRigid steel linking brackets between adjacent seats
Floor-mounted installationPermanent bolt-down fixing to venue floor, no movable casters
Upholstery maintenanceSurface-cleanable anti-stain fabric finish
Acoustic dampingRubber gaskets at all moving pivot points
Optional accessory mountingPre-drilled mounting points for seat number plates and cup holders
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

University lecture hallsFixed row seating with writing tablet supports note-taking and exam use
Corporate conference and training centersDurable commercial construction suits frequent multi-day event use
Theater and performing arts venuesErgonomic contoured back provides comfort for multi-hour performances
Government and public assembly hallsFixed floor installation meets public assembly safety and capacity requirements
School auditoriums and multi-purpose hallsGanged configuration maximizes seating capacity with clear aisle access
Cinema premium seating with note-taking needsUpholstered padding works for extended screen viewing sessions
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12727:2000Furniture - Seating for auditoriums, test methods and minimum strength requirements
EN 1021-1:2014Upholstered furniture flammability resistance to smoldering cigarette ignition
EN 1021-2:2014Upholstered furniture flammability resistance to match flame ignition
EN 13722:2004Furniture - Test methods for assessment of surface resistance to cold liquids
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood armrest components
GB/T 35607-2017Green product evaluation for furniture, applicable to formaldehyde and VOC limits
GB 20286-2006Flame retardant performance requirements for public venue upholstered furniture
GB/T 10357.3-2013Furniture mechanical performance test for seating, applicable to strength and durability testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood armrest components;
2. GB/T 35607-2017:Green product evaluation for furniture, applicable to formaldehyde and VOC limits;
3. GB 20286-2006:Flame retardant performance requirements for public venue upholstered furniture;
4. GB/T 10357.3-2013:Furniture mechanical performance test for seating, applicable to strength and durability testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FAB-WT-640

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FAB-WT-640

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FAB-WT-640打开导出工具

页面快速操作

发布采购询价

产品描述

The Yaqi Furniture AUD-FAB-WT-640 is a ganged fixed-row auditorium chair designed for high-traffic public and institutional seating environments, presenting a polished, coordinated aesthetic tailored to formal gathering spaces. Each unit features a blue commercial-grade woven polyester upholstered seat and back, paired with red stained and lacquered solid hardwood armrest tops and matching red lacquered perforated fold-down writing tablets, contrasted by a black powder-coated steel support frame for a cohesive, professional visual profile. Configured in rigidly linked continuous rows, the chairs install as permanent floor-mounted units with no movable casters, creating orderly, unobstructed aisle layouts that maximize usable venue capacity. Constructed for long-term commercial use, the chair’s frame and legs are formed from thick cold-rolled steel, while seat and back cushions sit on rigid injection-molded PP structural shells. Seat cushions use cold-molded high-density PU foam, with contoured cold-molded PU foam for the backrest, wrapped in linen-look, surface-cleanable anti-stain upholstery tested for heavy abrasion resistance. The fold-down writing tablet is made from thick perforated MDF, mounted on zinc-plated steel hinges with polymer friction bushings, while moving components incorporate rubber gaskets for acoustic damping, and a steel torsion spring with rubber damping bumper controls seat movement. Functional features support seamless venue operation: unoccupied seats use gravity activation to automatically tip up to an upright stored position, while writing tablets fold down from vertical storage between seats to a horizontal working height, with an anti-panic release that triggers automatic upward folding if excess upward force is applied. The padded, contoured backrest supports sustained comfort for multi-hour use, and the anti-stain fabric finish simplifies routine upkeep. This seating model is suited for a wide range of commercial and institutional spaces, including university lecture halls, corporate conference and training centers, performing arts theaters, government public assembly halls, K-12 school auditoriums and multi-purpose halls, and cinema spaces that support note-taking during screenings. For procurement planning, teams should note that each chair ships across two cartons, with a stated per-set assembly time for on-site installation. Loading data for standard 20-foot shipping containers is provided for 85% space utilization to support bulk order logistics, and the fixed bolt-down installation requires prepped venue floors to secure units permanently. The chair supports a maximum static user load per seat to accommodate diverse user groups across public access settings.
