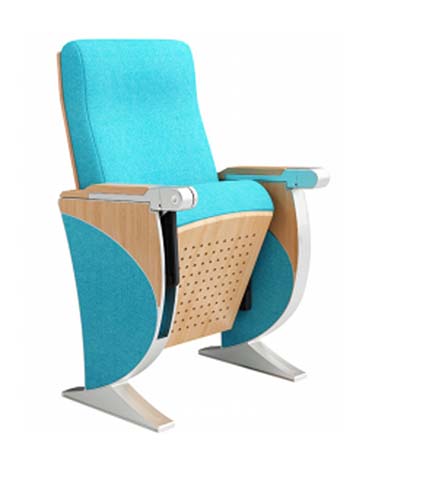

Turquoise Fabric Fixed Auditorium Chair with Perforated Wood Side Panels and Retractable Writing Tablet Specifications

AUD-FAB-WD700-TBL

代码:TNEN2YV1
获取供应商报价
2026-08-23 16:19人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-FAB-WD700-TBL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions (seat closed)700 x 740 x 1080 mm
Seat height from finished floor490 mm
Armrest height from finished floor700 mm
Seat usable depth470 mm
Backrest total height above seat830 mm
Perforated wood side panel thickness60 mm
Writing tablet stowed position depth470 mm
Writing tablet deployed working depth830 mm
Minimum recommended row spacing900 mm
Center-to-center seat width for ganged installation700 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Unit net weight28 kg
Recommended static user load capacity150 kg
Seat tip-up return cycle durability50000 cycles
Seat cushion foam density55 kg/m³
Backrest foam density45 kg/m³
Seat cushion foam thickness70 mm
Backrest foam thickness80 mm
Fabric abrasion resistance (Wyzenbeek double rubs)150000
Perforated panel noise reduction coefficient0.5
Seat return operating noise8 dB
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWoven commercial turquoise fabric, anti-fouling, anti-static treatment
Seat cushion coreCold-molded high-resilience PU foam, contoured for pressure distribution
Backrest coreLayered high-resilience PU foam, ergonomic lumbar contour
Outer side panelsCurved bentwood with perforated acoustic holes, natural light oak finish
Internal back support board9 mm thick multi-layer plywood, rigid backing for upholstery
Structural frame2.5 mm thick cold-rolled steel, powder-coated silver finish
Armrest top surfaceSolid hardwood with clear polyurethane finish, integrated tablet pivot
Writing tablet surfaceA3-sized melamine-faced composite board, 15 mm thick, anti-panic pivot
Floor mounting plates2.0 mm thick steel, anchored with expansion bolts
Seat return mechanismSteel spring with hydraulic damping cylinder, quiet automatic return
Upholstery seam stitching8 stitches per inch, reinforced high-tensile polyester thread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up operationGravity-assisted damped automatic return, 1.5 second soft close, no slam noise
Writing tablet operationArmrest-pivoted retractable design, rotates 90 degrees to stowed position, anti-panic release
Installation methodFloor-mounted fixed ganged row configuration, anchored to concrete/raised subfloor
Acoustic performancePerforated wood panels absorb reflected sound, reducing echo in large assembly spaces
Aisle alignmentGanged connecting brackets align adjacent seats, maintain consistent row spacing
Tablet load capacitySupports 10 kg static load for notebooks, documents, and personal devices
Customization optionFabric color and wood finish customizable to match venue interior design
Backrest fixed recline angle20 degrees
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Lecture hall applicationSuitable for tiered university and training room seating, supports note-taking via integrated tablet
Auditorium applicationIdeal for theater, conference center, and school auditorium fixed row installations
Cinema screening room applicationAppropriate for institutional screening rooms, with tip-up seats for clear egress
Public government assembly hall applicationMeets heavy-use requirements for council chambers and public meeting facilities
Recommended row configurationInstall with 900mm minimum row spacing for adequate legroom and emergency egress
Optional accessory compatibilitySupports row number plates, under-seat book nets, and aisle lighting accessories
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002Performance requirements for public seating used in auditoria and lecture halls
EN 1021-1:2014Upholstered furniture ignition resistance for smoldering cigarette source
EN 12727:2000Mechanical safety and strength requirements for ranked fixed seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General-purpose office chair safety and durability reference for seating components
ANSI/BIFMA X5.4-2020Lounge and public seating performance test reference for static and cyclic loads
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood panel components
GB/T 20247-2006Acoustic sound absorption coefficient testing for perforated panel performance verification
GB 20286-2006Fire performance requirements for upholstered furniture in public assembly venues
GB/T 10357.3-2013Furniture mechanical performance test for chair seat and back static/dynamic load
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood panel components;
2. GB/T 20247-2006:Acoustic sound absorption coefficient testing for perforated panel performance verification;
3. GB 20286-2006:Fire performance requirements for upholstered furniture in public assembly venues;
4. GB/T 10357.3-2013:Furniture mechanical performance test for chair seat and back static/dynamic load;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-FAB-WD700-TBL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-FAB-WD700-TBL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-FAB-WD700-TBL打开导出工具

页面快速操作

发布采购询价

产品描述

The Turquoise Fabric Fixed Auditorium Chair, model AUD-FAB-WD700-TBL, delivers purpose-built public seating for high-traffic assembly venues, with a cohesive visual design balancing soft textile and warm wood elements. Its silhouette features smoothly contoured seat and back forms, framed by curved light oak bentwood side panels with evenly spaced perforations that add textured visual interest while supporting acoustic performance. Configured in ganged fixed rows, units align precisely via integrated connecting brackets to maintain clean, consistent aisle sightlines and row spacing across installations. The silver powder-coated cantilever steel frame creates an open, uncluttered profile beneath the seating area, while solid hardwood armrests with clear polyurethane finish add a refined, durable touch at user contact points. Construction prioritizes long-term durability for heavy public use. The 2.5mm cold-rolled steel frame anchors to concrete or raised subfloors via 2.0mm steel mounting plates with expansion bolts, supporting a 150kg recommended static user load per seat. Seating surfaces are upholstered in commercial-grade turquoise woven fabric treated for anti-fouling and anti-static performance, padded with cold-molded high-resilience PU foam: 70mm thick 55kg/m³ foam for the contoured pressure-distributing seat cushion, and 80mm thick 45kg/m³ layered foam for the backrest, which features a built-in ergonomic lumbar contour. Perforated bentwood side panels are 60mm thick, paired with a 9mm multi-layer plywood internal back support board for rigid upholstery backing. The A3-sized writing tablet uses 15mm melamine-faced composite board mounted to an integrated armrest pivot. Core functional features support seamless venue operation. The tip-up seat uses gravity-assisted damped automatic return with a 1.5-second soft close to eliminate slam noise, with durability tested for 50000 tip-up cycles to support frequent use. The retractable writing tablet rotates 90 degrees to a flush stowed position, includes an anti-panic release mechanism, and supports a 10kg static load for notebooks, documents, and personal devices. The perforated wood side panels absorb reflected sound to reduce echo in large gathering spaces, while ganged brackets keep adjacent seats aligned for uniform row layout. Seats can be fitted with optional accessories including row number plates, under-seat book nets, and aisle lighting. Fabric color and wood finish may be customized to match specific venue interior design schemes. This chair is suited for tiered university lecture halls and corporate training rooms, where the integrated tablet supports active note-taking during sessions. It also works for fixed row installations in theaters, conference centers, K-12 and higher education auditoriums, institutional screening rooms, and government council chambers or public assembly halls, where tip-up seats maintain clear emergency egress paths. For optimal use, installations require a minimum 900mm row spacing to ensure adequate legroom and safe passage. Procurement teams should note that each unit ships in two cartons, with 40 minutes of assembly time required per set. When planning freight, a 20GP container holds 135 sets at 85% space utilization. Fixed floor mounting requires appropriate subfloor preparation to support anchored installation, and customization selections for fabric and wood finishes should be finalized prior to order placement to align with venue design timelines.
