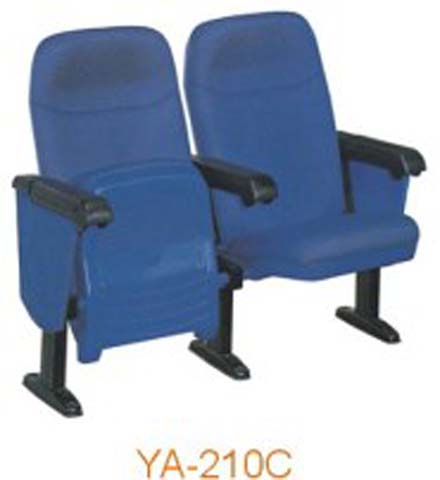

YA-210C Two-Seat Fabric Auditorium Seating Specifications

YA-210C

代码:UZSH77V1
获取供应商报价
2026-08-23 20:04人气: 38
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

YA-210C

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single seat static load capacity150 kg
Net weight per single seat18 kg
Recommended maximum occupancy per two-seat unit2 persons
Seat cushion rebound rate45%
Fabric abrasion resistance50000 cycles
Floor mount pull-out resistance800 kg
Standard warranty period5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBlue fire-retardant woven fabric
Internal seat/back cushion foam40mm thick medium-density polyurethane foam
Support frame and legs2mm thick powder-coated black steel
ArmrestsInjection-molded black hard polyurethane plastic
Floor mounting plates5mm thick black steel with pre-drilled anchor holes
Seat return mechanismGravity-tilt steel hinge with self-lowering function
Inner seat pan1.2mm thick perforated steel plate
Armrest support brackets3mm thick powder-coated black steel
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tilting functionGravity-operated self-return tip-up seat, 90-degree upfold for aisle clearance
Floor mountingFixed bolt-down installation to concrete or raised access floors
Modular row connectionAdjacent units connect via shared leg brackets for continuous row layout
Back support featureContoured high back provides full lumbar and upper back support for long events
Armrest functionFixed wide armrests support forearm weight during prolonged seating
Seat damping functionIntegrated buffer in hinge prevents slamming when seat returns to vertical
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Cinema and theater auditoriumsFixed row seating with tip-up seats optimizes aisle clearance for high-capacity screening venues
School and university lecture hallsDurable fixed construction withstands daily high-frequency student use
Corporate conference centersNeat uniform appearance and ergonomic support suits formal multi-hour events
Multipurpose public assembly hallsTip-up seat allows flexible space conversion for standing events between seated programs
Government and public council chambersFormal upholstered design meets professional public meeting space requirements
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Public seating durability recommendationEN 12727:2000, strength and durability for public seating, severity level 4 for high-traffic auditoriums
Upholstery flammability recommendationEN 1021:2014, cigarette ignition resistance for upholstered furniture
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Upholstery flammability recommendationGB 20286fire retardant grade B1 for public venue upholstered furniture
Structural safety recommendationGB/T 3326dimensional and structural stability requirements for furniture seating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Upholstery flammability recommendation:GB 20286fire retardant grade B1 for public venue upholstered furniture;
2. Structural safety recommendation:GB/T 3326dimensional and structural stability requirements for furniture seating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · YA-210C

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · YA-210C

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · YA-210C打开导出工具

页面快速操作

发布采购询价

产品描述

The YA-210C Two-Seat Fabric Auditorium Seating is a purpose-built row-mounted public seating solution designed for consistent performance across high-traffic gathering spaces. Visually, it presents a cohesive, formal aesthetic with deep blue upholstered seat and back surfaces paired with matte black structural elements, creating a clean, uniform look that aligns with professional and institutional design schemes. Modular in layout, adjacent two-seat units connect via shared leg brackets to form uninterrupted rows, with tip-up seats that fold fully vertical to maintain clear, accessible aisles between seating blocks. Built for long-term durability, the seating pairs blue fire-retardant woven fabric upholstery over medium-density polyurethane foam cushions, supported by a robust metal and plastic framework. The support structure uses powder-coated black steel for frames, legs, floor mounting plates, armrest brackets, and the perforated inner seat pan, with bent plywood forming the internal seat support board. Armrests are crafted from injection-molded black hard polyurethane plastic, and a gravity-tilt steel hinge with integrated damping controls seat movement, eliminating slamming during automatic return. All metal mounting components come with pre-drilled anchor holes for secure fixed bolt-down installation to both concrete and raised access floors. Functionally, the seating prioritizes ergonomic comfort for extended use, with a contoured high back that delivers full lumbar and upper back support, wide fixed armrests to bear forearm weight, and a 125-degree recline with three adjustable lock positions. The gravity-operated self-return seat folds 90 degrees upright when unoccupied to maximize aisle space, supporting flexible space conversion for standing events between seated programs. The durable fabric withstands repeated regular use, while the stable fixed structure holds static load per seat of 150 kg. This seating model is well suited for a wide range of commercial and public spaces, including cinema and theater auditoriums, school and university lecture halls, corporate conference centers, multipurpose public assembly halls, and government or public council chambers. For procurement teams, key considerations include its unbranded supply structure, 5-year standard warranty, packaged delivery as one set across two cartons requiring 40 minutes of on-site assembly per unit, and a recommended pairing with 2.4 m executive desks where integrated work surfaces are required. Fixed floor mounting requires pre-planned anchor point alignment with venue floor structures to support continuous, even row installation.
