基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 1400 × 750 × 420 mm | |
|---|---|---|
| Overall large table dimensions | 1400 x 750 x 420 mm | |
| Tabletop thickness | 20 mm | |
| Large table support panel height | 390 mm | |
| Small table support panel height | 320 mm | |
| Metal support panel wall thickness | 3 mm | |
| Small table nesting under-table clearance (large unit) | 330 mm | |
| Table edge profile radius | 15 mm | |
| Large table floor contact footprint | 1300 x 680 mm | |
| Small table floor contact footprint | 820 x 520 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Large table total weight | 80 kg | |
|---|---|---|
| Small table total weight | 45 kg | |
| Large table distributed static load capacity | 100 kg | |
| Tabletop Mohs surface hardness | 7 | |
| Tabletop heat resistance temperature | 1200 °C | |
| Frame rust resistance service life | 5 years | |
| Table weight capacity static load test point | 50 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准

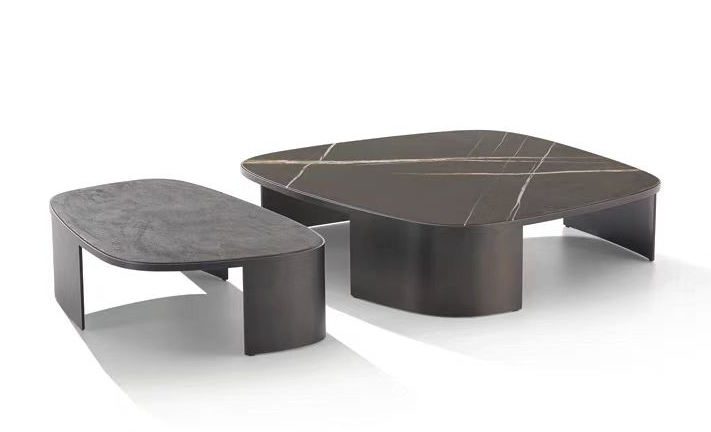

| Large table tabletop | Dark brown sintered stone with light linear veining, matte finish | |
|---|---|---|
| Small table tabletop | Dark grey textured sintered stone, matte finish | |
| Support panels | Brushed dark bronze finished stainless steel, curved monolithic form | |
| Tabletop underside backing | 10mm MDF reinforcement panel | |
| Floor contact pads | 8mm thick non-slip felt pads, pre-applied to base bottoms | |
| Connection hardware | M8 zinc-plated steel bolts and locking nuts | |
| Metal surface treatment | Brushed antique bronze PVD coating | |
| Tabletop edge treatment | Hand-polished rounded eased edge, no sharp corners | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Nesting storage function | Small table tucks 60% of its depth under the large table | |
|---|---|---|
| Separate use function | Two tables can be positioned independently in separate seating zones | |
| Surface stain resistance | Non-porous stone surface wipes clean with dry or damp cloth | |
| Anti-scratch surface performance | Hard stone surface resists scuffs from decor, trays and remote controls | |
| 3-point support stability | Three curved panel supports per table prevent wobble on uneven floors | |
| Floor protection | Felt base pads prevent scratching on hardwood, tile and polished stone floors | |
| Assembly structure | Knock-down design with base panels attached to tabletop via bolts | |
| Customization support | Table size, stone pattern and metal finish are customizable per order | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Primary use space | Modern luxury living rooms positioned in front of sofas and sectionals | |
|---|---|---|
| Secondary use space | Open-plan lounge areas, hotel lobbies and high-end residential reception spaces | |
| Suitable user groups | Design-focused residential homeowners, interior designers, premium furniture retailers | |
| Recommended layout (paired) | Position large table centered in front of main seating, small table offset to side for extra surface | |
| Recommended layout (separated) | Place large table in main seating area, small table beside a single accent chair | |
| Surface use case support | Holds coffee trays, decorative objects, books, candles and table lamps | |
| Space-saving benefit | Ideal for smaller luxury apartments where dual surface space is needed without extra footprint |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| Furniture surface resistance to cold liquids | EN 12720:2013 | |
|---|---|---|
| Furniture surface scratch resistance | EN 15186:2012 | |
| Domestic tables safety requirements | EN 12521:2015 | |
| Furniture strength and durability | EN 1730:2000 |
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| Tabletop stone performance | GB/T 35165 | |
|---|---|---|
| Metal furniture structural safety | GB/T 3324 | |
| Formaldehyde emission limits | GB 18584 | |
| Furniture mechanical stability | GB/T 10357.1 |
本产品须满足以下技术参数要求: 1. Tabletop stone performance:GB/T 35165; 2. Metal furniture structural safety:GB/T 3324; 3. Formaldehyde emission limits:GB 18584; 4. Furniture mechanical stability:GB/T 10357.1; 最终交付参数、检测报告和验收标准以双方采购合同为准。
