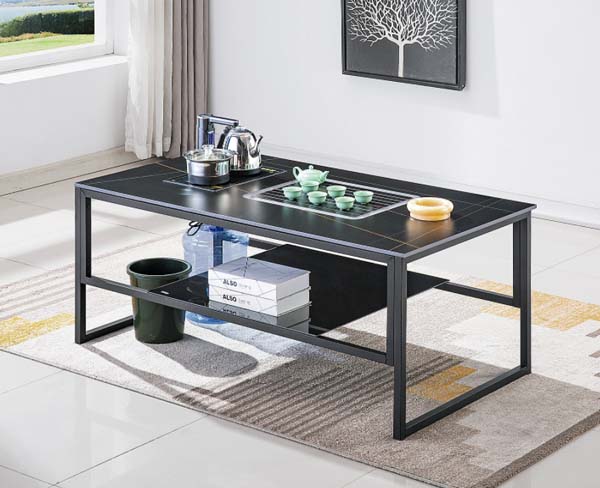

商品供应商Black Frame Stone Top Tea Coffee Table with Integrated Tea Drain,Aluminum Alloy
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1300 x 700 x 550 mm | |
|---|---|---|
| Tabletop thickness | 12 mm | |
| Lower shelf height from floor | 200 mm | |
| Vertical leg profile width | 40 mm | |
| Frame tube wall thickness | 1.2 mm | |
| Tea drain grate dimensions | 580 x 380 mm | |
| Lower shelf clearance under top frame | 290 mm | |
| Frame overhang around tabletop | 15 mm | |
| Lower shelf usable width between frame legs | 1180 mm | |
| Lower shelf usable depth between side frames | 600 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Net weight | 38 kg | |
|---|---|---|
| Tabletop static load capacity | 100 kg | |
| Recommended number of users for tea service | 6 | |
| Tabletop surface heat resistance | 180 °C | |
| Shelf edge impact resistance | 45 J | |
| Warranty period for frame and structure | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Primary tabletop | 12mm black sintered stone with fine gold linear veining, polished glossy finish | |
|---|---|---|
| Structural frame | Matte black powder-coated carbon steel square tube, welded open box frame construction | |
| Lower storage shelf | 8mm black tempered glass, fixed to steel cross supports via rubber anti-slip gaskets | |
| Integrated tea drain grate | Stainless steel slatted drain panel, recessed flush into tabletop for tea runoff drainage | |
| Tea appliance recessed pad | Heat-resistant textured melamine pad, recessed into tabletop to support electric kettle and sterilizer pot | |
| Frame foot pads | Non-marking TPE adjustable glide pads, fitted to bottom of each leg to protect flooring | |
| Powder coating finish | Epoxy-polyester matte powder coat, 60um average thickness, corrosion resistant for indoor use | |
| Assembly hardware | Zinc-plated M8 hex bolts with nylon lock nuts, 16 total fasteners for frame and shelf attachment | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Integrated tea service zone | Recessed heat-resistant pad and sloped drain grate on tabletop to hold boiling kettle, sterilizer pot and tea set, with routed drain outlet for wastewater to collection bucket | |
|---|---|---|
| Open lower storage shelf | Full-width flat tempered glass shelf for storage of water bottles, books and tea supplies, with unobstructed front access | |
| Stain-resistant tabletop surface | Non-porous sintered stone surface that resists tea stains, water rings and heat marks, requiring only wipe cleaning after use | |
| Open frame access clearance | 350mm front knee clearance between lower shelf and table apron to allow seated use without leg obstruction | |
| Adjustable floor glides | 10mm adjustment range on each leg foot pad to level the table on uneven carpet or tile flooring | |
| Wastewater routing capacity | Drain channel sized to connect to standard 10mm tea drain hose, directing spilled tea to a standard 18.9L water bottle wastewater reservoir | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 1 | |
|---|---|---|
| Shipping carton dimensions | 1380 x 780 x 170 mm | |
| Gross shipping weight | 44 kg | |
| Shipping volume per unit | 0.183 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft GP container loading quantity | 156 units | |
| 40ft HQ container loading quantity | 390 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm |
推荐空间 / 目标用户 / 使用方式
| Residential living room application | Positioned in front of sofas in home living rooms for daily tea service, casual drinks and small item display, with height optimized for seated use from standard sofas | |
|---|---|---|
| Office reception area application | Used in small office reception or lounge areas to serve tea to visiting guests, with durable scratch-resistant surface suited for high-traffic public use | |
| Tea room dedicated use | Installed in dedicated home or commercial tea rooms for gongfu tea preparation, with integrated drain design eliminating need for separate tea tray | |
| Small apartment dining alternative | Functions as a compact low dining table for studio apartments or tatami seating spaces, with load capacity sufficient for meals and laptop use | |
| Recommended accessory pairing | Pairs with 18.9L standard bottled water reservoirs, electric tea kettles and ceramic gongfu tea sets to form a fully functional tea station |
欧洲市场准入与化学品要求
| Furniture mechanical safety | EN 12521:2015 Furniture - Strength, durability and safety - Requirements for domestic tables, applicable for structural load and stability testing for household coffee tables | |
|---|---|---|
| Glass component safety | EN 12150:2015 Glass in building - Thermally toughened soda lime silicate safety glass, applicable for safety performance of the tempered glass lower shelf | |
| Surface emission limits | EN 16516:2017 Construction products - Assessment of release of dangerous substances - Determination of emissions into indoor air, applicable for VOC emission limits for indoor furniture |
适用于中国市场项目的标准
| Tabletop safety performance | GB/T 3324General technical requirements for wooden furniture, applicable for dimensional stability, surface finish and edge safety requirements for household tables | |
|---|---|---|
| Tempered glass safety | GB 15763.2Safety glazing materials in building - Part 2: Tempered glass, applicable for impact resistance and fragmentation requirements for the lower glass shelf | |
| Metal frame coating performance | GB/T 19001Quality management systems requirements, applicable for consistent powder coat adhesion and corrosion resistance of steel frame components | |
| Formaldehyde emission limits | GB 18584Indoor decorating and refurbishing materials - Limit of formaldehyde emission of wood-based furniture and finishing materials, applicable for any auxiliary wooden or adhesive components |
本产品须满足以下技术参数要求: 1. Tabletop safety performance:GB/T 3324General technical requirements for wooden furniture, applicable for dimensional stability, surface finish and edge safety requirements for household tables; 2. Tempered glass safety:GB 15763.2Safety glazing materials in building - Part 2: Tempered glass, applicable for impact resistance and fragmentation requirements for the lower glass shelf; 3. Metal frame coating performance:GB/T 19001Quality management systems requirements, applicable for consistent powder coat adhesion and corrosion resistance of steel frame components; 4. Formaldehyde emission limits:GB 18584Indoor decorating and refurbishing materials - Limit of formaldehyde emission of wood-based furniture and finishing materials, applicable for any auxiliary wooden or adhesive components; 最终交付参数、检测报告和验收标准以双方采购合同为准。
