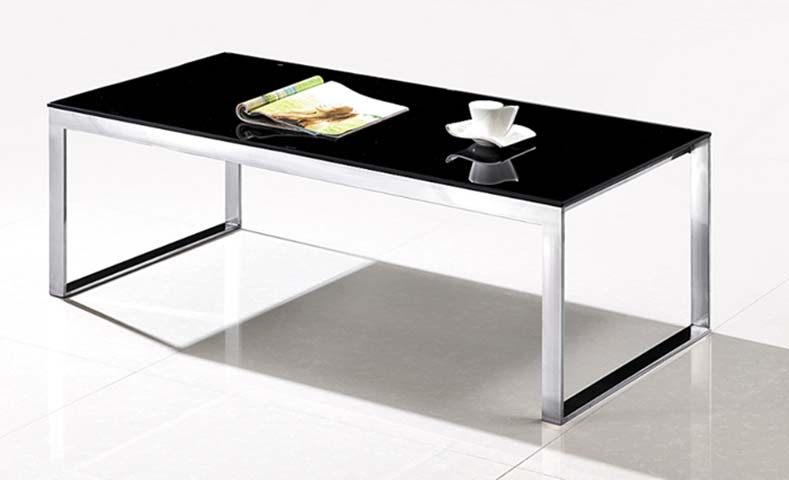

Modern Rectangular Glossy Black Glass Top Polished Chrome Open Frame Coffee Table Specifications

CT-BG-CH-UFRAME-1300

代码:GHHZ6SV1
获取供应商报价
2026-09-07 13:41人气: 17
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-BG-CH-UFRAME-1300

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1302 x 705 x 450 mm
Tabletop thickness23 mm
Frame tubing cross-section50 x 50 mm
Frame tubing wall thickness1.5 mm
Under-table floor clearance410 mm
Frame horizontal floor bar distance from edge60 mm
Inner open under-table width1202 mm
Inner open under-table depth605 mm
Tabletop overhang over front/back frame10 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight34 kg
Distributed static tabletop load capacity100 kg
Frame static vertical load rating150 kg
Glass surface impact resistance450 mm steel ball drop
Chrome plating salt spray resistance48 hours
Recommended number of users4 people
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

TabletopGlossy black tempered safety glass with smooth polished edges
Frame structurePolished chrome-plated cold-rolled steel rectangular tubing
Frame weld pointsGround and polished seamless welds at frame corners
Foot padsNon-marking TPE anti-slip adjustable levelers at frame base
Glass mountingConcealed EPDM rubber gaskets between glass and steel frame
Frame surface finishMulti-layer polished chrome plating over nickel undercoat
Assembly hardwareStainless steel hex socket cap screws and barrel nuts
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color CountRecommended 6top finishes and 3frame colors
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Assembly typeKnock-down assembly with included hex key, no special tools required
Leveling adjustmentAdjustable foot pads compensate for 10 mm floor unevenness
Surface functionGlossy non-porous glass top resists liquid spills and supports wipe-clean maintenance
Open under-table spaceUnobstructed open area allows foot clearance for seated users and under-table storage of baskets or books
Load distributionDual U-shaped end frames transfer load evenly to floor for stable placement on hard flooring
Edge protectionPolished glass edges eliminate sharp points for safe use in residential and reception spaces
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living roomPlaced in front of 3seat sofas for holding drinks, reading materials and decor
Office reception areaUsed in lounge or waiting areas for visitor seating and refreshment placement
Apartment open plan living spacesSuitable for compact urban homes with minimalist contemporary interior design
Commercial lounge spacesUsed in hotel lobbies, club lounges or coworking common areas for casual guest use
Recommended pairingMatches with modern chrome-frame sofas, fabric or leather lounge seating, and glossy black display furniture
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Glass furniture safety standardEN 12150:2015+A1:2019
Domestic furniture mechanical safety standardEN 1728:2012
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Glass safety standardGB 15763.2
Furniture structural stability standardGB/T 3324
Metal furniture coating standardGB/T 13667.1
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Glass safety standard:GB 15763.2;
2. Furniture structural stability standard:GB/T 3324;
3. Metal furniture coating standard:GB/T 13667.1;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-BG-CH-UFRAME-1300

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-BG-CH-UFRAME-1300

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-BG-CH-UFRAME-1300打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded modern rectangular coffee table, model CT-BG-CH-UFRAME-1300, features a refined minimalist low-profile design defined by clean cantilevered lines and an open frame layout. Its glossy black tempered safety glass tabletop, finished with smooth polished edges, sits atop a polished chrome open frame, creating a light, uncluttered visual presence that complements contemporary interior schemes without overwhelming surrounding decor. The table measures 1302 x 705 x 450 mm, with a 23 mm thick glass top supported by 50 x 50 mm polished chrome-plated cold-rolled steel rectangular tubing, constructed with ground and polished seamless welds at frame corners for a seamless, premium finish. A multi-layer polished chrome plating over a nickel undercoat protects the steel frame, while non-marking TPE anti-slip adjustable levelers at the base prevent floor scuffs and compensate for 10 mm of floor unevenness. The glass top mounts to the frame via concealed EPDM rubber gaskets, with stainless steel hex socket cap screws and barrel nuts securing all structural connections for long-term rigidity. The 34 kg table supports a 100 kg distributed static tabletop load, with frame static vertical load rating of 150 kg. The glass surface resists liquid spills and supports quick wipe-clean maintenance, with polished glass edges eliminating sharp points for safe everyday use. The dual U-shaped end frames transfer load evenly to the floor for stable placement on hard surfaces, while the 410 mm under-table floor clearance and unobstructed open under-table area provide ample foot room for seated users and space to store baskets, books, or small items, with built-in cable management capacity for 10 power or data cables supporting up to 10 kg of tray load. It is suited for placement in residential living rooms in front of 3-seat sofas to hold drinks, reading materials and decor; office reception waiting and lounge areas for refreshment placement; compact urban apartment open-plan living spaces; and commercial spaces including hotel lobbies, club lounges and coworking common areas for casual guest use. It pairs seamlessly with modern chrome-frame sofas, fabric or leather lounge seating, and glossy black display furniture. The knock-down assembly includes a hex key and requires no special tools, with a 40 minute reference assembly time; each set ships in 2 cartons with a 90 kg packaged gross weight. Procurement teams should note the product is unbranded, account for the 0.55 m³ packaging volume for delivery and storage planning, and confirm the design aligns with intended space aesthetics and 4-person seating capacity needs.
