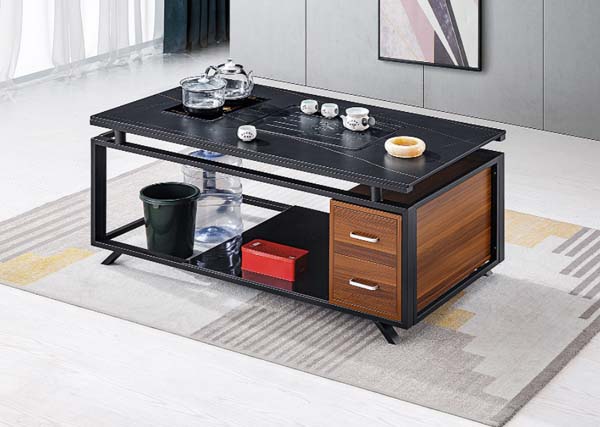

商品供应商Integrated Tea Brewing Coffee Table with Storage,Aluminum alloy
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1300 x 700 x 560 mm | |
|---|---|---|
| Tabletop thickness | 15 mm | |
| Lower open shelf clearance above floor | 120 mm | |
| Lower shelf usable depth | 380 mm | |
| Right storage cabinet dimensions | 400 x 650 x 420 mm | |
| Individual drawer internal dimensions | 320 x 350 x 120 mm | |
| Integrated tea tray cutout dimensions | 500 x 350 mm | |
| Water bottle storage zone width | 350 mm | |
| Steel frame tube profile | 40 x 20 mm | |
| Adjustable foot height | 10 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Tabletop static load capacity | 80 kg | |
|---|---|---|
| Product net weight range | 55 kg | |
| Recommended user capacity | 4 people | |
| Tabletop surface heat resistance | 120 °C | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended seated user capacity | 4 people | |
| Leveling foot maximum load per unit | 25 kg | |
| Powder coating adhesion rating | Grade 1 | |
| Wood veneer moisture content | 12% | |
| Top Static Load Reference | 150 kg uniformly distributed |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main tabletop | 15mm black fireproof sintered stone slab with woven edge trim | |
|---|---|---|
| Support frame | 40x20mm rectangular steel tube with matte black powder-coated finish | |
| Lower open shelf | 8mm black tempered glass panel | |
| Right cabinet side panel | 18mm MDF board with walnut wood grain veneer | |
| Drawer fronts | 15mm MDF with matching walnut veneer and horizontal groove detailing | |
| Drawer handles | Polished zinc alloy bar pulls, chrome finish | |
| Leveling feet | Nylon base with steel threaded stem | |
| Recessed tea tray section | Integrated sintered stone drainage channel with stainless steel drain fitting | |
| Edge trim on tabletop | Black PVC woven-texture edge banding | |
| Tabletop edge trim | Black PVC woven-texture edge banding, 2mm thickness | |
| Drawer slides | Cold-rolled steel 3-section side-mount slides with black electroplated finish | |
| Drainage pipe | 12mm diameter food-grade flexible PVC hose |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Integrated wet tea service station | Recessed stone drainage tray connects to hidden drain pipe, supports direct pouring of waste tea water without separate tea tray | |
|---|---|---|
| Bottled water storage zone | Open left lower shelf space fits standard 18.9L upside-down water dispenser bottle to feed electric tea kettles | |
| Two soft-close storage drawers | Stacked drawers on right cabinet front store tea cups, tea caddies and serving accessories, with 10kg load rating per drawer | |
| Open side storage compartment | Enclosed cabinet space behind walnut side panel holds wastewater bucket and electric tea boiler controls | |
| Leveling adjustment | Four threaded nylon feet adjust 10mm to compensate for uneven floor surfaces and stabilize the table | |
| Heat-resistant work surface | Sintered stone top withstands 120°C contact from boiling kettles without scorching or discoloration | |
| Multi-level storage layout | Combines tabletop serving area, middle frame support rail, lower open display shelf and enclosed cabinet storage to organize all tea service items | |
| Knockdown assembly design | Frame and cabinet components ship flat-packed with M6 bolt connectors, requiring 60 minutes for 2-person assembly without specialized tools | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 2 | |
|---|---|---|
| Largest carton dimensions | 1380 x 780 x 180 mm | |
| Second carton dimensions | 1280 x 720 x 220 mm | |
| Total shipping gross weight | 65 kg | |
| Total shipping volume | 0.4 CBM | |
| Required assembly time | 60 minutes | |
| 20ft GP container loading quantity | 105 units | |
| 40ft HQ container loading quantity | 260 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Residential living room | Placed in front of sofas for daily tea service, casual drinks and home entertaining, with hidden storage to reduce countertop clutter | |
|---|---|---|
| Office reception lounge | Used in meeting areas or executive lounges for serving guests tea and beverages, with durable heat-resistant surface for high-frequency use | |
| Private tea room | Dedicated tea service table with integrated drainage to eliminate separate portable tea trays, sized for 4-person tea tasting sessions | |
| Small apartment open plan space | Combines coffee table, storage cabinet and tea station functions to save floor space in compact living areas | |
| Complementary furniture pairing | Pairs with 450 mm seat height low stools or fabric sofas, with 560mm total table height optimized for seated beverage service | |
| Balcony casual seating area | Placed on enclosed balconies paired with low rattan stools for relaxed outdoor-adjacent tea service, with powder-coated frame resistant to minor humidity exposure |
欧洲市场准入与化学品要求
| EN 12521:2015 | Furniture - Strength, durability and safety - Requirements for domestic tables, applies to static load and stability testing for residential use | |
|---|---|---|
| EN 14749:2016 | Furniture - Storage units and worktops for domestic and kitchen use - Safety requirements and test methods, applies to drawer and cabinet storage components | |
| EN 1022:2018 | Furniture - Seating - Determination of stability, referenced for adjacent seating clearance around table perimeter | |
| EN 12150-2:2004 | Glass in building - Thermally toughened soda lime silicate safety glass, applies to tempered glass lower shelf for safety performance |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to veneered MDF cabinet components for dimensional stability and edge bonding quality | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applies to powder-coated steel frame for welding quality and coating adhesion | |
| GB 18584-2001 | Indoor decoration and refurbishment materials - limit of harmful substances in wood furniture, applies to MDF components for formaldehyde emission limits ≤1.5mg/L | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applies if cabinet substrate uses particleboard, requires internal bond strength ≥0.4MPa | |
| GB/T 28007-2011 | Tempered glass for furniture use, applies to 8mm lower shelf panel for impact resistance and breakage safety |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applies to veneered MDF cabinet components for dimensional stability and edge bonding quality; 2. GB/T 3325-2017:Metal furniture general technical requirements, applies to powder-coated steel frame for welding quality and coating adhesion; 3. GB 18584-2001:Indoor decoration and refurbishment materials - limit of harmful substances in wood furniture, applies to MDF components for formaldehyde emission limits ≤1.5mg/L; 4. GB/T 4897.3-2003:Particleboard for furniture use, applies if cabinet substrate uses particleboard, requires internal bond strength ≥0.4MPa; 5. GB/T 28007-2011:Tempered glass for furniture use, applies to 8mm lower shelf panel for impact resistance and breakage safety; 最终交付参数、检测报告和验收标准以双方采购合同为准。
