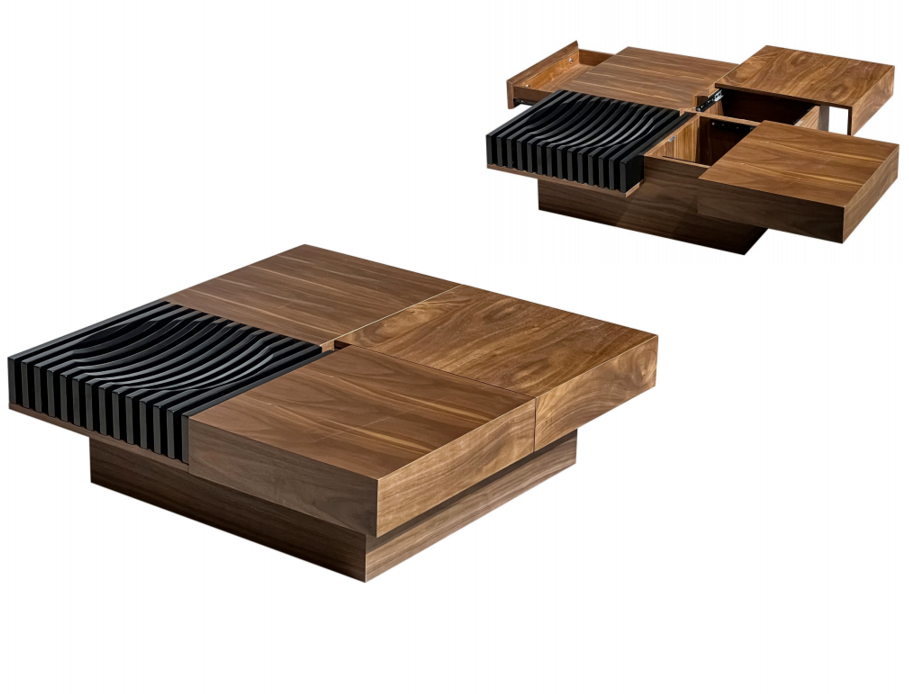

Square Block Sliding-Top Hidden Storage Coffee Table with Black 3D Slatted Accent Specifications

CT-SQ-1100-WAL-BLK-STOR

代码:M5EPVKV1
获取供应商报价
2026-09-11 12:55人气: 4
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CT-SQ-1100-WAL-BLK-STOR

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall closed dimensions1100 x 1100 x 360 mm
Maximum extended overall length with sliding panels open1160 mm
Tabletop panel thickness80 mm
Plinth base height100 mm
Black 3D slatted accent panel dimensions550 x 550 x 80 mm
Individual sliding wood panel dimensions550 x 550 x 80 mm
Concealed storage compartment depth180 mm
Plinth base setback from tabletop edge30 mm
Sliding panel maximum extension travel230 mm
Storage compartment internal clear height160 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Distributed static tabletop load capacity80 kg
Total concealed storage volume0.19 m³
Recommended maximum number of users4
Sliding hardware cycle life10000 open/close cycles
Product net weight48 kg
Surface water resistance ratingLevel 2 for liquid spills
Surface abrasion resistance2000 rubbing cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop core substrate18mm thick particleboard/MDF composite
Walnut sliding panel finishMatte walnut wood-grain melamine veneer
Decorative slatted panelMatte black painted engineered wood with sculpted wave profile
Plinth base construction18mm thick engineered wood with matching walnut veneer wrap
Storage compartment interior liningNatural wood-toned engineered wood panel
Sliding hardwareCold-rolled steel three-section full-extension drawer slides
Surface coatingMatte PU protective clear coat
Hardware fastenersZinc-plated steel confirmat screws and cam locks
Panel edge bandingMatching 2mm thick PVC edge banding
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Sliding top accessThree wood panels slide independently along steel rails to reveal four separate concealed storage compartments
Fixed accent panelOne black 3D slatted panel remains fixed, providing decorative texture without moving or accessing storage
Full extension slidingSliding panels travel 230mm outward to fully expose storage compartments without removing panels
Concealed storage designClosed tabletop presents a flush seamless square surface with no visible hardware or drawer pulls
Leveling supportHidden adjustable floor glides under plinth base compensate for uneven floor surfaces
Spill-resistant surfaceSealed matte finish resists short-term liquid penetration for easy cleaning with dry or damp cloth
Low-profile placement360mm overall height aligns with standard sofa seat heights for convenient access from all seating positions
Modular panel alignmentInterlocking panel edges maintain flush alignment when closed to prevent uneven surfaces or gaps
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Modern living room placementPositioned in front of sofas or sectionals as a central functional accent piece
Open concept lounge spacesSuits minimalist, contemporary, or Japandi style interiors with mixed wood and black finishes
Small item storageStores remote controls, magazines, coasters, blankets, and living room accessories out of sight
Residential living spacesDesigned for home use in apartments, lofts, or family rooms with standard seating heights
Low-height lounge configurationsWorks with floor cushions or low-profile modular seating in casual entertainment spaces
Show home and staging useSuitable for real estate staging and interior design showrooms as a sculptural focal furniture piece
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12521:2015Furniture – Strength, durability and safety for domestic tables, applicable for structural load and stability testing
EN 12720:2009+A1:2013Assessment of surface resistance to cold liquids, applicable for tabletop spill resistance verification
EN 717-1:2004Formaldehyde emission determination for wood-based panels, applicable for substrate emission testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for dimensional tolerance and surface quality inspection
GB 18584-2001Limit of formaldehyde emission for interior decoration materials, applicable for substrate emission verification
GB/T 4893.8-2013Test method for furniture surface wear resistance, applicable for tabletop finish durability acceptance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for dimensional tolerance and surface quality inspection;
2. GB 18584-2001:Limit of formaldehyde emission for interior decoration materials, applicable for substrate emission verification;
3. GB/T 4893.8-2013:Test method for furniture surface wear resistance, applicable for tabletop finish durability acceptance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CT-SQ-1100-WAL-BLK-STOR

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CT-SQ-1100-WAL-BLK-STOR

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-SQ-1100-WAL-BLK-STOR打开导出工具

页面快速操作

发布采购询价

产品描述

The Square Block Sliding-Top Hidden Storage Coffee Table is a low-profile, contemporary occasional table defined by its clean, block-form silhouette and mixed-material finish. Its closed form presents a flush, seamless square tabletop with no visible hardware or pulls, set atop a recessed plinth base that sits slightly set back from the tabletop edge. The surface is split into three independent sliding walnut wood-grain panels and one fixed matte black 3D slatted accent panel, arranged to create a balanced textural contrast between the warm wood tone and sculpted dark slat detail. When closed, the table maintains a tight, unified square profile; sliding panels travel outward to reveal storage below without requiring full panel removal. Constructed around an engineered wood core, the table features an 18mm thick particleboard and MDF composite substrate wrapped in a matte walnut wood-grain melamine veneer, finished with a matte PU protective clear coat and 2mm thick matching PVC edge banding on all panel edges. The fixed slatted panel uses matte black painted engineered wood with a sculpted wave profile, while the plinth base is clad in the same matching walnut veneer as the tabletop panels. Cold-rolled steel three-section full-extension slides support the moving panels, fastened with zinc-plated steel confirmat screws and cam locks, and hidden adjustable floor glides under the plinth compensate for uneven floor surfaces. The interior of the concealed storage compartments is lined with natural wood-toned engineered wood panels. Each sliding top panel moves independently along steel rails to expose four separate concealed storage compartments, offering enclosed space to stow remote controls, magazines, coasters, throw blankets, and other living room accessories out of sight. The sealed matte surface resists short-term liquid penetration, allowing easy cleaning with a dry or damp cloth, and supports a distributed static load suitable for regular use by up to four people. Its 360mm overall height aligns with standard sofa seat heights for comfortable access from all surrounding seating positions. This coffee table fits equally well in residential and light commercial settings: it works as a central functional accent in home living rooms, apartments, lofts, and family rooms, pairs with low-profile modular seating or floor cushions in casual entertainment spaces, and suits open-concept lounge areas styled with minimalist, contemporary, or Japandi design palettes. It also serves as a sculptural focal piece for real estate staging and interior design showrooms. Procurement teams and buyers should note the unit ships in two cartons per set, with a recommended assembly time of 40 minutes per unit. The fixed black slatted panel is non-moving and does not provide storage access, so layout planning should account for panel positioning relative to primary seating to ensure unobstructed access to sliding storage sections. The spill-resistant surface is rated for short-term liquid exposure only, so standing spills should be wiped promptly to preserve finish integrity.
