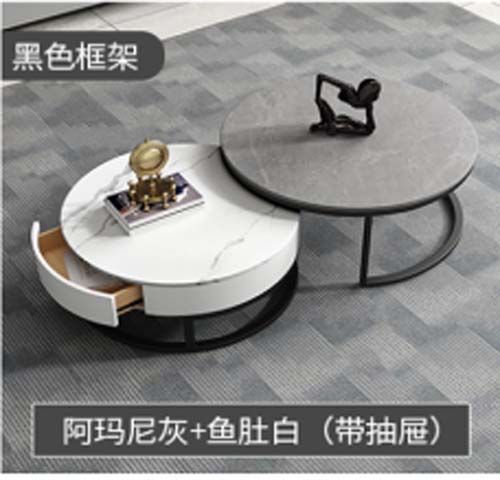

2-Piece Nested Round Coffee Table Set with Drawer, Sintered Stone Top, Black Metal Frame Specifications

NRC-GW-DR7050

代码:MYNQRAV1
获取供应商报价
2026-08-25 13:18人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

NRC-GW-DR7050

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set net weight29 kg
Large table distributed static load capacity100 kg
Sintered stone surface heat resistance1200 °C
Sintered stone surface Mohs hardness7
Frame finish salt spray resistance48 hours
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Large table top12mm Armani grey matte sintered stone, sealed edges
Small table top12mm fish belly white marble-look sintered stone, sealed edges
Structural frame1.5mm thick carbon steel, matte black powder-coated finish
Storage drawer frontWhite painted engineered wood panel, curved profile
Drawer interior liningLight brown wood grain engineered wood liner
Drawer slidesCold-rolled steel side-mount silent slides, 3/4 extension
Frame foot padsNon-slip scratch-resistant TPE rubber pads, 5mm thickness
Drawer hardware connectorsZinc-plated steel screws and cam locks, 16mm length
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Nested swivel arrangementSmall table rotates 360° around central axis to extend surface area
Built-in curved drawerPull-out curved storage compartment on small table for small items
Space-saving nestingSmall table slides fully under large table to reduce footprint
Easy-clean surfaceNon-porous sintered stone top resists stains and requires only damp wiping
Scratch-resistant work surfaceHard sintered stone finish resists scratches from decor and tableware
Floor protectionRubber foot pads prevent scratching hard floors and gripping carpet
Tool-assisted assemblyKnockdown design with included hardware for home assembly
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Small apartment living roomNested design saves floor space while providing expandable surface
Modern minimalist residential interiorsDual-tone stone and black frame match contemporary neutral decor
Open-plan lounge seating areasLow profile height is ideal for placement in front of 3-seat sofas
Home office casual reception areasProvides surface for drinks and reading materials in breakout zones
Rental property furnishingDurable scratch-resistant finish and stable frame suit high-turnover use
Studio apartment multi-use spaceNested layout adapts to small spaces and occasional guest use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12521:2015Furniture - Strength, durability and safety requirements for domestic tables
EN 13722:2004Furniture - Test methods for the strength and durability of storage components
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to drawer wood components
GB/T 4893.4-2013Surface abrasion resistance test for furniture finishes, applicable to painted and stone surfaces
GB/T 17657-2013Test methods for wood-based panels, applicable to drawer engineered wood substrate
GB 28007-2011Formaldehyde emission limit for interior wood furniture, applicable to drawer components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to drawer wood components;
2. GB/T 4893.4-2013:Surface abrasion resistance test for furniture finishes, applicable to painted and stone surfaces;
3. GB/T 17657-2013:Test methods for wood-based panels, applicable to drawer engineered wood substrate;
4. GB 28007-2011:Formaldehyde emission limit for interior wood furniture, applicable to drawer components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · NRC-GW-DR7050

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · NRC-GW-DR7050

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · NRC-GW-DR7050打开导出工具

页面快速操作

发布采购询价

产品描述

The NRC-GW-DR705 2-Piece Nested Round Coffee Table Set offers a modern, minimalist dual-tone silhouette anchored by a matte black powder-coated steel frame, pairing a large Armani grey matte sintered stone top with a smaller fish belly white marble-look sintered stone top, both with fully sealed edges. The set’s rotating nested structure allows the smaller table to swivel 360 degrees around its central axis to expand usable surface area, or slide fully beneath the larger table to cut down on occupied floor space. The smaller table integrates a curved-profile built-in drawer with a white painted engineered wood front and light brown wood grain engineered wood interior, supported by cold-rolled steel side-mount silent slides for quiet, smooth access. Tabletops are constructed from 12mm sintered stone, with a 45mm finished top thickness; the structural frame uses 1.5mm thick carbon steel, supported by 5mm thick non-slip scratch-resistant TPE rubber foot pads that protect hard flooring and grip carpet surfaces without shifting. The drawer is assembled with zinc-plated steel screws and cam locks, while all load-bearing surfaces use durable composite build-ups for long-term stability. The non-porous sintered stone surfaces resist stains for simple damp-wipe cleaning, resist scratches from everyday decor and tableware, and deliver high heat tolerance for regular household use. The frame finish is engineered to resist corrosion from regular exposure, and the drawer hardware supports reliable repeated use for storing small everyday items. A large open knee clearance makes the set well-proportioned for placement in front of standard seating, with a compact low profile that fits neatly in front of three-seat sofas. The 680mm high and 900mm wide knee clearance per main seating position ensures comfortable leg room for users, while an integrated 80mm diameter cable opening with 120mm deep cable tray supports convenient cord management for small devices placed on the table surface. The set is suited for small apartment living rooms, modern minimalist residential interiors, open-plan lounge seating areas, casual home office reception breakout zones, high-turnover rental properties, and multi-use studio apartment spaces, where its space-saving layout adapts to both daily use and occasional guest hosting. It ships knockdown across two cartons, with all required hardware included for at-home assembly that takes 40 minutes per set; the large table supports a 100kg distributed static load, with a total top static load reference of 150kg uniformly distributed, and the full set has a net weight of 29kg. Procurement teams should note the two-carton packaging, 0.55 cubic meter total packaging volume, and 90kg total packaged gross weight for shipping and storage planning, and account for the required assembly time when scheduling furnishing installation.
