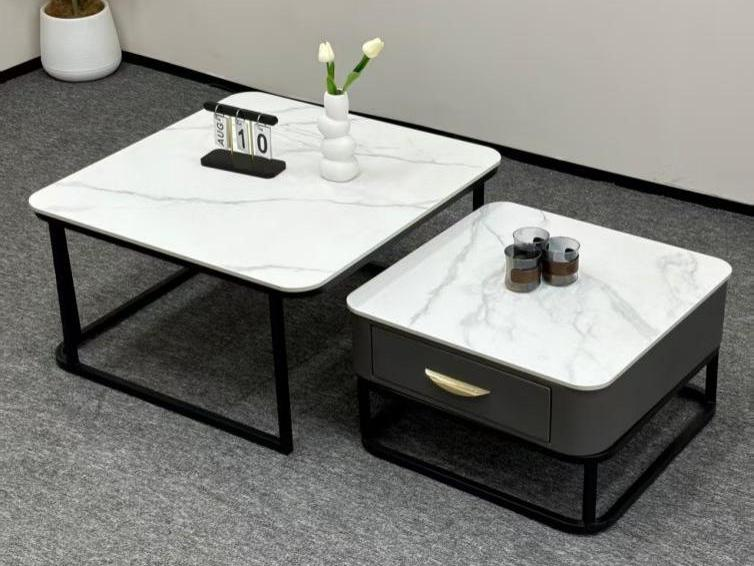

Modern Nesting Square Coffee Table Set with Storage Drawer Specifications

NST-SQ-8070-DR-BLK

代码:P292NSV1
获取供应商报价
2026-09-12 11:35人气: 8
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

NST-SQ-8070-DR-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Larger table overall dimensions800 x 800 x 420 mm
Smaller table overall dimensions700 x 700 x 380 mm
Tabletop thickness15 mm
Metal leg tube section25 x 25 mm
Metal frame wall thickness1.2 mm
Larger table under-top floor clearance380 mm
Smaller table under-top floor clearance180 mm
Drawer internal usable dimensions620 x 320 x 100 mm
Nested combined footprint800 x 800 x 420 mm
Table corner radius30 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set gross weight40 kg
Larger table distributed static load capacity50 kg
Tabletop surface abrasion resistance2000 cycles
Powder coated frame salt spray resistance48 hours
Recommended maximum seated users for adjacent use4
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Larger table tabletop15mm thick MDF substrate with white faux marble PVC veneer, rounded edge banding
Smaller table tabletop15mm thick MDF substrate with matching white faux marble PVC veneer, rounded edge banding
Structural frame for both tables1.2mm thick square carbon steel tube with matte black powder coating, sled-style closed base
Smaller table drawer body15mm thick dark grey matte laminated particle board, fully assembled box construction
Drawer handle120mm long curved brushed gold finished zinc alloy pull, centered on drawer front
Drawer slidesFull extension 3-section cold rolled steel side-mount slides, 300mm travel length
Frame foot pads5mm thick non-slip rubber pads at all frame floor contact points
Frame connection hardwareM6 hex socket bolt connectors with lock washers, 8 bolts per table
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Nesting slide functionSmaller table slides freely under larger table to save space when not in use
Drawer storage functionSingle full-width drawer on smaller table pulls open to store remote controls, coasters and small living room items
Surface wipe cleaning functionNon-porous faux marble tabletop resists water and common household stains, wiped clean with damp cloth
Floor protection functionRubber foot pads at all frame contact points prevent scuffs on hard flooring and carpet indentation
Independent use functionBoth tables can be used separately as side tables or placed adjacent to create a larger combined surface
Static leveling functionFrame construction maintains level surface on flat residential flooring without adjustable feet
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living room placementPositioned in front of sofas for holding drinks, decor, books and everyday living room items
Small apartment space saving useNested configuration reduces footprint when additional surface area is not required
Reception lounge placementUsed in small office reception areas or boutique waiting spaces for guest refreshments and decor
Flexible side table useSeparated smaller table can be used as an end table beside a seating or accent chair
Recommended matching furniturePaired with 3-seater upholstered sofas, minimalist TV consoles and light neutral tone area rugs
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12521:2015Furniture – Strength, durability and safety for domestic tables, applicable to structural performance
EN 13722:2004Furniture – Test methods for surface resistance to cold liquids, applicable to tabletop stain resistance
EN 1022:2005Furniture – Seating – Determination of stability, referenced for table stability test methods
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to tabletop and drawer components
GB/T 4893.8-2013Furniture surface test for abrasion resistance, applicable to tabletop finish quality
GB/T 17657-2013Test methods for wood-based panels, applicable to engineered wood drawer and top substrate
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to tabletop and drawer components;
2. GB/T 4893.8-2013:Furniture surface test for abrasion resistance, applicable to tabletop finish quality;
3. GB/T 17657-2013:Test methods for wood-based panels, applicable to engineered wood drawer and top substrate;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · NST-SQ-8070-DR-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · NST-SQ-8070-DR-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · NST-SQ-8070-DR-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

The Modern Nesting Square Coffee Table Set with Storage Drawer features a clean, light luxury modern aesthetic defined by its balanced square silhouettes and contrasting finish palette. The two square tables align visually when nested, with the smaller piece sliding fully beneath the larger unit to minimize footprint when extra surface space is not required; they can also be pulled apart for independent use or positioned adjacent to form an expanded contiguous surface, with a single drawer set flush into the front face of the smaller table accented by a warm brushed gold pull for a subtle elevated design detail. Each table is built with a 15mm thick MDF substrate tabletop finished with white faux marble PVC veneer and smooth rounded edge banding, mounted to a rigid sled-style closed base constructed from matte black powder-coated square carbon steel tubing. The smaller table’s storage drawer uses a fully assembled dark grey matte laminated particle board box, fitted with full-extension cold rolled steel side-mount slides and a curved brushed gold zinc alloy pull centered on its front. Non-slip rubber pads line every floor contact point of the metal frames, while connections are secured with hex socket bolts and lock washers for stable, rattle-free use. The non-porous faux marble tabletop resists water and common household stains, wiping clean easily with a damp cloth; the full-width drawer offers concealed storage for small living items like remote controls, coasters, and reading accessories, while integrated cable management capacity supports organized routing for power and data cords. The frame maintains a level surface on flat residential flooring without adjustable feet, and rubber foot pads prevent scuffs on hard flooring and indentation on carpeted surfaces. The larger table supports a 50kg distributed static load, with a uniform top static load reference of 150kg, and the set accommodates up to four seated users for adjacent use. This set suits both residential and light commercial spaces: it works well positioned in front of sofas in home living rooms, supports space-efficient layouts in small apartments when nested, serves guest refreshments and decor in small office reception areas or boutique waiting spaces, and the smaller table can function standalone as an end table beside accent or seating chairs. It pairs cohesively with 3-seater upholstered sofas, minimalist TV consoles, and light neutral tone area rugs. For procurement, note that each set ships in two cartons, with an 40 minutes of assembly time required per unit. The unbranded set carries model number NST-SQ-8070-DR-BLK, and offers a total distributed static load capacity aligned with regular everyday use for both domestic and light commercial lounge settings.
