PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1270 × 610 × 508 mm
Tabletop thickness	25 mm
Lower shelf clearance height	300 mm
Frame tube wall thickness	1.2 mm
Vertical slat width	20 mm
Slat spacing (left section)	60 mm
Lower shelf depth	560 mm
Floor clearance under lower shelf	10 mm
Side frame angle	10 degrees
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static load capacity	125 kg
Finish abrasion resistance	1000 cycles
Net product weight	40 kg
Recommended maximum placemat size	1200 x 550 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Structural frame	1.2mm thick steel tube with matte black powder-coated finish
Tabletop panel	25mm thick dark melamine-faced engineered wood
Lower storage shelf	15mm thick dark melamine-faced engineered wood
Frame slats	Solid 20mm wide steel bar with matching black powder coat
Connection hardware	Black zinc-plated steel bolts and barrel nuts
Floor protection pads	5mm thick non-marking rubber pads
Side support panels	Angled steel tube frame with transparent infill panel
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Storage configuration	Open dual-tier design with flat upper tabletop and full-width lower shelf
Frame construction	Fixed bolted assembly with no moving or adjustable components
Front slat design	Decorative vertical slat grid spanning the full front face
Floor protection	Padded contact points on all four frame base corners
Surface use suitability	Smooth non-porous top surface compatible with coasters, trays, and decor items
Assembly requirement	Knocked-down flat pack design requiring bolted assembly of frame and panels
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Living room seating area placement	Positioned in front of sofas or sectionals for serving drinks and displaying decor
Modern industrial interior schemes	Complements minimalist, loft, and monochrome decor styles with matte black finish
Small apartment open-plan spaces	Compact footprint and open lower shelf provide storage without visual clutter
Reception waiting area use	Suitable for office or lounge waiting zones for guest beverage and reading material placement
Recommended pairing	Matched with black metal or dark wood seating units for coordinated aesthetic

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CT-SLAT-1270BLK

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CT-SLAT-1270BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CT-SLAT-1270BLK打开导出工具

页面快速操作

发布采购询价

产品描述

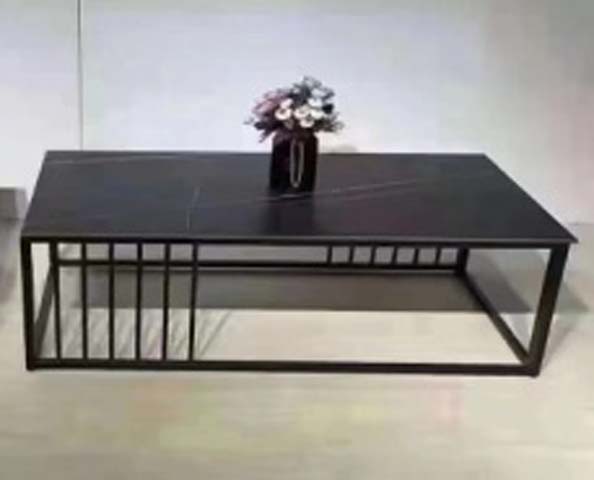

This black industrial rectangular two-tier coffee table features a bold, structured silhouette defined by its open slatted metal frame and clean horizontal lines. A full-width decorative vertical slat grid spans the front face, creating visual texture while maintaining an open, unobstructed feel between the upper tabletop and lower storage shelf. Angled steel side support frames with transparent infill panels add subtle geometric detail without weighing down the design, and the matte black finish of all metal components pairs seamlessly with dark engineered wood surfaces for a cohesive, understated industrial look. The fixed bolted frame construction eliminates moving or adjustable parts, supporting stable long-term use across regular traffic environments.
The table is built with a durable 1.2mm thick steel tube frame finished in matte black powder coating, with solid 20mm wide steel slats finished to match the frame. The upper tabletop uses 25mm thick dark melamine-faced engineered wood, while the lower shelf uses a slightly thinner dark melamine-faced engineered wood panel. All connections use black zinc-plated steel bolts and barrel nuts, and non-marking 5mm thick rubber pads line all four base corners to protect floor surfaces from scuffs or pressure marks. The smooth, non-porous top surface works reliably with coasters, serving trays, and decorative display items, while the full-width open lower shelf offers accessible, unenclosed storage. The design includes reference capacity for 10 power or data cables, and the static load capacity supports regular placement of household and lounge items. It ships as a knocked-down flat pack across two cartons, requiring bolted assembly with a reference assembly time of 40 minutes per set.
This piece fits equally well in residential and light commercial spaces. In residential settings, it works in living room seating areas positioned in front of sofas or sectionals for serving drinks and displaying decor, and suits small apartment open-plan layouts where its compact footprint and open shelf create storage without adding visual clutter. It complements minimalist, loft, and monochrome interior schemes, pairing best with black metal or dark wood seating units for a coordinated look. For commercial use, it is appropriate for office or lounge waiting zones to hold guest beverages and reading materials.
When procuring this model, note the fixed bolted construction has no adjustable features, and plan for appropriate assembly resources on delivery. Account for the two-carton packaging weight and volume when coordinating shipping and receiving, and select placemats aligned with the recommended maximum size to maintain a neat surface fit. The unbranded design allows flexible coordination with existing furniture collections without conflicting with established brand-specific aesthetic standards.

Black Industrial Rectangular Two-Tier Coffee Table with Slatted Metal Frame Specifications
