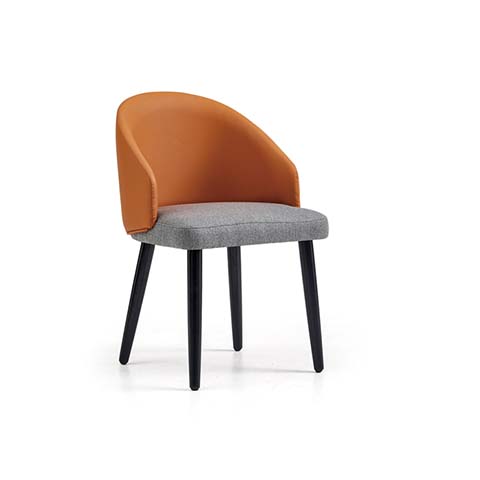

Two-Tone Curved Wrap-Back Upholstered Dining Armchair Specifications

DC-TT-001

代码:S4MWEHV1
获取供应商报价
2026-08-26 15:52人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

DC-TT-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions660 x 620 x 902 mm
Seat height521 mm
Seat width515 mm
Seat depth457 mm
Leg splay angle from vertical12 degrees
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair8.6 kg
Static weight capacity160 kg
Seat foam density45 kg/m³
Foam rebound rate60%
Recommended daily use duration8 hours
Leg static load per leg45 kg
Surface abrasion resistance (fabric seat)30000 Martindale cycles
Faux leather stain resistanceWipe-clean with damp cloth
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Back/arm shell upholsteryCaramel PU faux leather, 0.8 mm thickness
Seat upholsteryHeathered grey polyester-linen blend fabric, 0.6 mm thickness
Seat fillHigh-elastic polyurethane foam, 80 mm thickness
Back fill20 mm thick high-density foam layer over plywood form
Internal seat frame12 mm thick molded plywood
Support legs1.2 mm thick black powder-coated tapered steel tubes
Foot capsNon-marking black plastic glides, 5 mm thickness
Seam stitchingPolyester thread, 8 mm stitch pitch
Surface finish on legsMatte black powder coating
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating functionStatic upright dining posture, no recline or swivel
Integrated armrestsCurved wrap-around arm support continuous with backrest
Floor protectionNon-slip plastic glides prevent floor scratching
Cleaning functionWipe-clean faux leather back, spot-clean fabric seat
Stacking capabilityNon-stackable fixed leg design
Assembly requirementKnock-down leg attachment with included Allen key
Weight distributionFour outward-splayed legs provide lateral stability
Seat comfortPadded foam cushion reduces pressure during extended meals
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining roomPaired with standard 750mm height dining tables for daily family meals
Cafe and bistro seatingCompact footprint suits small commercial dining spaces
Office breakout areaCasual guest seating for meeting and break room spaces
Hotel guest room seatingCompact armchair for room corner or desk use in hospitality
Reception waiting areaLightweight guest seating for low-traffic reception spaces
Recommended table height760 mm standard dining table height for ergonomic seating
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Strength, durability and safety for domestic seating furniture
EN 1022:2018Stability test standard for non-domestic and domestic seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for seat frame plywood
GB/T 16799-2008Faux leather upholstery performance standard for furniture use
GB/T 19001-2016Quality management system reference for production consistency
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for seat frame plywood;
2. GB/T 16799-2008:Faux leather upholstery performance standard for furniture use;
3. GB/T 19001-2016:Quality management system reference for production consistency;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · DC-TT-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · DC-TT-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DC-TT-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Tone Curved Wrap-Back Upholstered Dining Armchair (model DC-TT-001, unbranded) features a streamlined modern silhouette defined by a continuous curved wrap-back structure that integrates seamlessly with matching armrests, creating a cohesive, enclosed seating profile. The two-tone finish pairs caramel-toned faux leather on the back and arm shell with heathered grey polyester-linen blend fabric on the seat, anchored by matte black tapered metal legs splayed 12 degrees outward from vertical for balanced visual proportion. Construction prioritizes durable, tactile materials: the 0.8mm thick PU faux leather back shell is molded over a plywood form padded with a 20mm high-density foam layer, while the seat uses a 12mm molded plywood internal frame topped with 90mm of high-elastic polyurethane foam. Tapered steel legs with 1.2mm wall thickness receive a matte black powder-coat finish, fitted with 5mm non-marking, non-slip black plastic glides at the base. Stitching uses durable polyester thread with an 8mm stitch pitch for consistent, long-lasting seam integrity. Designed for static upright dining posture with no recline or swivel function, the chair delivers targeted support via a 240mm high lumbar support zone, with seat foam density of 45kg/m³ and 60% rebound rate suited for up to 8 hours of daily use. The fabric seat offers 30,000 Martindale cycles of abrasion resistance; the faux leather back wipes clean easily, while the fabric seat supports spot cleaning. Each chair supports a static weight capacity of 160kg, with four outward-splayed legs delivering reliable lateral stability, and 45kg static load capacity per individual leg. This chair fits a range of settings: residential dining rooms paired with standard 750mm or 760mm height dining tables, compact cafes and bistros, office breakout areas, hotel guest room corners or desk nooks, and low-traffic reception waiting areas. Its fixed non-stackable design requires knock-down leg assembly with an included Allen key, with a reference assembly time of 40 minutes per set. Procurement teams should note each unit ships across two cartons, with a packaged gross weight of 23kg per set, and 135 sets fit a 20GP container at 85% space utilization. Overall dimensions measure 660 x 620 x 902mm, with a 521mm seat height, 515mm seat width, and 457mm seat depth to align with standard dining table ergonomics.
