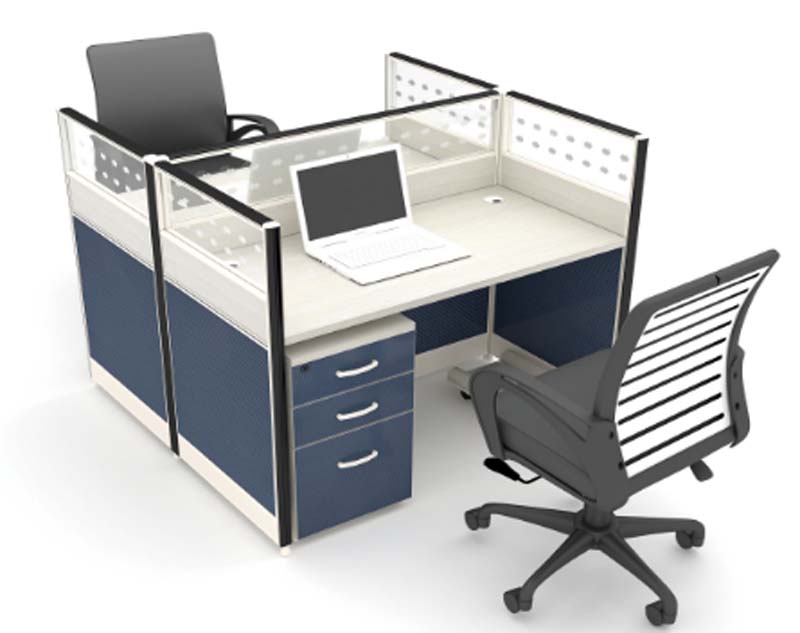

2-Person L-Shaped Office Cubicle Workstation with Drawer Pedestal Specifications

CUB-L2-3D-1050

代码:2RPNPSV1
获取供应商报价
2026-09-03 17:37人气: 22
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CUB-L2-3D-1050

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation dimensions2475 x 1425 x 1050 mm
Work surface height730 mm
Desktop thickness25 mm
Individual L-worktop side length1425 mm
Partition panel thickness32 mm
Under-desk knee clearance height650 mm
Knee clearance depth450 mm
Drawer pedestal dimensions400 x 500 x 650 mm
Cable grommet diameter60 mm
Lower fabric partition height750 mm
Upper perforated acrylic screen height300 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worktop static load capacity113 kg
Workstation net weight100 kg
Seating capacity2 users
Surface abrasion resistance2000 cycles
Frame static load rating400 kg
Adjustable foot leveler travel15 mm
Warranty period5 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface25mm E1 grade melamine faced MFC board
Edge banding2mm PVC edge trim
Lower partition panelsFabric-upholstered particleboard with blue finish
Upper privacy screensPerforated clear acrylic panel with black aluminum frame
Support framePowder-coated square steel tubing
Drawer pedestalMelamine faced board with 3 drawers and white curved handles
Drawer slidesFull-extension ball bearing metal slides
Cable managementABS plastic grommets and under-desk raceway
Leveling feetNylon base adjustable steel glides
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Privacy partition systemDual-material dividers separate adjacent workstations
Drawer storage3 integrated drawers per position including 1 file drawer
Cable managementSurface grommets and under-desk raceway route cords
Floor levelingAdjustable glides at each frame leg
Modular configurationKnock-down panel design supports layout expansion
Perforated screen ventilationPerforated acrylic upper panels allow air flow
Locking pedestal optionKey lock fitted to top drawer of pedestal
Work surface orientationCross-corner L-shaped layout per seat
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office areas2-person cluster design for staff in general administrative roles
Call center and back office spaceDividers reduce visual distraction for focused screen-based work
Startup and co-working spacesModular design supports flexible reconfiguration as teams change
Small business staff work areasIntegrated storage removes need for separate filing cabinets
Government and corporate administrative zonesNeutral blue-white finish matches standard office decor
Training and temporary project officesPortable knock-down design supports relocation between sites
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements
EN 1335-1:2020Office work chair dimensions (for paired seating)
EN 1023-2:2000Office storage furniture strength and durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products safety and performance standard
ANSI/BIFMA X5.9-2019Storage units performance standard
ANSI/BIFMA X5.1-2017Office chairs general purpose standard (for paired seating)
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB/T 4897.3-2003Particleboard for furniture use
GB 18584-2001Indoor decoration material formaldehyde emission limit
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB/T 4897.3-2003:Particleboard for furniture use;
3. GB 18584-2001:Indoor decoration material formaldehyde emission limit;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CUB-L2-3D-1050

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CUB-L2-3D-1050

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CUB-L2-3D-1050打开导出工具

页面快速操作

发布采购询价

产品描述

The 2-Person L-Shaped Office Cubicle Workstation with Drawer Pedestal is a modular office work surface designed to support structured shared workspaces with balanced privacy and collaborative accessibility. Its L-shaped layout positions two separate work zones at a right angle, creating a compact, space-efficient footprint suited for clustered staff deployment. Dual-material partitions form privacy boundaries between positions: lower panels have a blue fabric-upholstered finish, while upper screens are constructed from perforated clear acrylic set in black aluminum frames, allowing light transmission and air flow while blocking direct visual distraction between adjacent users. The workstation sits on a powder-coated square steel tube frame, finished with nylon-base adjustable steel glides to compensate for uneven floor surfaces. Work surfaces are crafted from E1 grade melamine-faced MFC board, sealed with 2mm PVC edge trim to protect against routine wear. Each work position includes an integrated three-drawer pedestal with white curved handles, fitted with full-extension ball bearing metal slides for smooth access; the top drawer supports an optional key lock for secure storage of personal or work materials, and one dedicated drawer accommodates file storage to eliminate the need for separate filing cabinets. Built-in cable management features include surface grommets and an under-desk raceway to route power and data cords for a tidy work surface. The knock-down panel design supports modular layout expansion and easy relocation, with assembly completed efficiently per unit. The worktop supports a static load of 113kg, with a frame static load rating of 400kg, and the surface delivers abrasion resistance rated for 2000 cycles of use. The unit is backed by a 5-year warranty. This workstation fits a wide range of commercial spaces: open plan offices for administrative staff, call centers and back-office environments requiring reduced distraction, startup and co-working spaces needing flexible reconfiguration, small business work areas, government and corporate administrative zones with standard decor schemes, and temporary training or project offices that require portable, re-locatable furnishings. For procurement, teams should account for two cartons per set, with a packaged gross weight of 120kg, and plan for assembly time per unit, noting that the modular design allows for scaled deployment as team sizes evolve. The neutral blue and white finish aligns with conventional office design palettes for consistent visual cohesion across large workspace installations.
