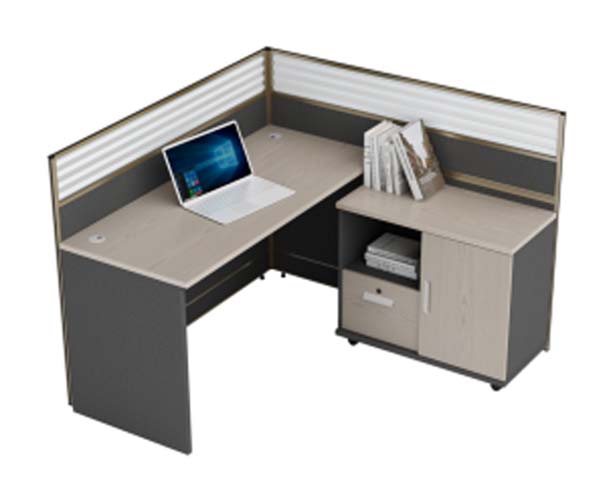

Single-Person L-Shaped Office Cubicle Workstation with Mobile Side Storage Cabinet Specifications

L-CUB-WS-1500-MOB

代码:SLMJXCV1
获取供应商报价
2026-08-13 16:21人气: 82
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

L-CUB-WS-1500-MOB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint (L x W x partition height)1500 x 1500 x 1200 mm
Desktop working height750 mm
Desktop panel thickness25 mm
Main desktop depth (work surface)700 mm
Knee clearance height under desk680 mm
Knee clearance width at center700 mm
Mobile storage unit dimensions (W x D x H)400 x 550 x 725 mm
Lower solid partition panel height600 mm
Upper translucent partition panel height600 mm
Partition frame profile width40 mm
Drawer internal usable dimensions320 x 480 x 150 mm
Open storage shelf internal height200 mm
Cable grommet diameter60 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop uniform static load capacity80 kg
Drawer slide open/close cycle life50000 cycles
Total product net weight100 kg
Formaldehyde emission limit0.124 mg/m³
Surface abrasion resistance (melamine finish)2000 revolutions
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Desktop substrate and finishE1 grade melamine-faced particleboard, 2mm PVC arc edge banding
Partition lower panel16mm thick melamine-faced particleboard in dark grey finish
Partition upper panelTranslucent ribbed PC light-diffusing panel in off-white finish
Partition frameAnodized aluminum alloy profile, 1.2mm wall thickness
Mobile storage unit carcass16mm thick melamine-faced particleboard in two-tone grey/light oak finish
Storage door and drawer front16mm thick melamine-faced board with integrated vertical pull handle
Drawer slides3-section cold-rolled steel ball-bearing silent slides
Storage casters50mm diameter swivel nylon casters, 2 with lock function
Cable grommetsABS plastic round desktop cable grommets with removable cap
Drawer lockZinc alloy keyed cam lock for drawer security
Modesty panel (desk rear)16mm thick melamine-faced panel matching lower partition finish
Desk support panels25mm thick melamine-faced structural side panels connecting desktop to floor
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable managementTwo desktop cable grommets route power and data cables from surface to under-desk area
Mobile storage mobilityStorage unit sits on four swivel casters, allowing repositioning under desk or alongside work surface
Storage configurationMobile unit provides 1 lockable lower drawer, 1 middle open shelf, 1 upper hinged door cabinet
Drawer operationThree-section full-extension slides allow full drawer access for file retrieval, with silent soft-close action
Partition privacyTwo-part partition provides lower seated privacy and upper light transmission without full sight block
Modular connectivityPartition frames accept connection to additional cubicle units for multi-station cluster layouts
Drawer securityKeyed lock secures lower drawer for confidential document storage
Caster lockingTwo lockable casters fix storage unit in position during use to prevent unintended movement
Under-partition cable routingAluminum under-partition cable tray organizes power strips and data cables below work surface
Door swing directionStorage cabinet door opens 110 degrees outward for full interior access, with magnetic catch to hold closed
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office individual workstationsProvides visual privacy and dedicated storage for employees in open office layouts
Small business staff work areasCompact footprint fits small offices without requiring custom built-in partitions
Call center and administrative staff zonesCable management and work surface size supports computer and phone equipment
Temporary project team workspacesModular design allows reconfiguration as team size and layout needs change
Government and institutional office spacesMeets standard procurement specifications for durable, functional office furniture
Home office dedicated work zonesProvides office-level privacy and storage for professional remote work setups
Startup open office fit-outsStandardized sizing allows bulk ordering and quick installation for new office spaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements for commercial office desk use
EN 14073-2:2004Office storage furniture safety requirements for mobile pedestal and cabinet units
EN 14074:2004Office furniture moving parts strength and durability for drawer slides and hinges
EN 13986:2004Wood-based panels formaldehyde emission limits for indoor furniture applications
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

北美市场选型与验收ANSI/BIFMA X5.5 办公桌及桌类产品
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk and storage panel construction
GB 18580-2017Formaldehyde emission limit for wood-based panels, minimum E1 grade requirement for indoor office use
GB/T 3327-2016Performance requirements for office desks, including worktop load and structural stability
GB/T 10357.1-2013Furniture mechanical performance test for table strength, durability and stability
GB/T 10357.5-2011Furniture mechanical performance test for storage unit strength and drawer durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk and storage panel construction;
2. GB 18580-2017:Formaldehyde emission limit for wood-based panels, minimum E1 grade requirement for indoor office use;
3. GB/T 3327-2016:Performance requirements for office desks, including worktop load and structural stability;
4. GB/T 10357.1-2013:Furniture mechanical performance test for table strength, durability and stability;
5. GB/T 10357.5-2011:Furniture mechanical performance test for storage unit strength and drawer durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · L-CUB-WS-1500-MOB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · L-CUB-WS-1500-MOB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · L-CUB-WS-1500-MOB打开导出工具

页面快速操作

发布采购询价

产品描述

The Single-Person L-Shaped Office Cubicle Workstation with Mobile Side Storage Cabinet (model L-CUB-WS-1500-MOB, unbranded) features a streamlined L-shaped layout with equal 1500mm side lengths, paired with a two-tone partition system that balances privacy and light flow. The 1200mm tall partitions use an anodized aluminum alloy frame with 1.2mm wall thickness, combining a 600mm tall dark grey lower solid panel made of 16mm melamine-faced particleboard with an off-white translucent ribbed PC upper panel that diffuses light while blocking direct overhead sightlines for seated users. The 25mm thick desktop is built from E1 grade melamine-faced particleboard, finished with 2mm PVC arc edge banding, set at a standard 750mm working height with 680mm of under-desk knee clearance and 700mm of central knee width. The 700mm deep main work surface supports an 80kg uniform static load, and the melamine finish resists abrasion through 2000 revolutions of contact. ABS plastic round cable grommets with removable caps are positioned on the desktop to route power and data cords neatly to the under-desk area. The included mobile storage unit is constructed from 16mm melamine-faced particleboard in a two-tone grey and light oak finish, fitted with four 50mm swivel nylon casters, two of which include locking mechanisms for stable positioning. The unit slides fully under the desk or sits adjacent to the work surface as needed, and offers three storage zones: a key-locked lower drawer for confidential documents, a middle open shelf that holds up to 30kg of distributed weight, and an upper hinged-door cabinet. The lower drawer runs on 3-section cold-rolled steel ball-bearing silent slides with soft-close action, supporting a 45kg load per pair with a 50000-cycle open/close lifespan, and extends fully for easy file access. The partition frames are designed for modular connection, allowing multiple units to be linked into multi-station clusters as needed. The unit’s compact footprint suits a wide range of spaces, including open-plan office individual work zones where visual privacy and dedicated storage are priorities, small business offices that lack space for custom built-in partitions, call center and administrative areas that support computer and phone equipment, temporary project team spaces that require flexible reconfiguration, government and institutional offices that follow standard functional furniture procurement guidelines, and dedicated home office setups for professional remote work. When procuring this unit, note that assembly takes 40 minutes per set, the product has a 100kg net weight, formaldehyde emission is limited to 0.124 mg/m³, and modular connection compatibility allows for future layout expansion without replacing existing units.
