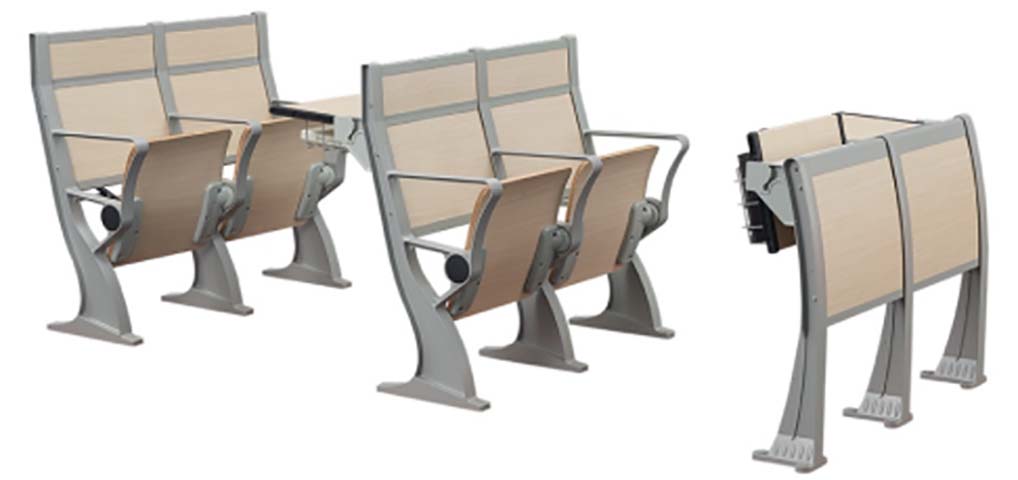

Floor-Mounted Folding Lecture Hall Auditorium Seating with Flip-Up Writing Tablet Specifications

LS-AUD-580FL

代码:3KSR8TV1
获取供应商报价
2026-08-23 14:56人气: 50
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LS-AUD-580FL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall per-seat dimensions580 x 750 x 1080 mm
Seat center-to-center distance600 mm
Seat height from floor450 mm
Deployed seat depth500 mm
Armrest height from floor660 mm
Folded unit depth (stowed seat)300 mm
Backrest height above seat630 mm
Flip-up writing tablet dimensions273 x 253 x 15 mm
Recommended row-to-row pitch950 mm
Minimum inner seat width between armrests480 mm
Writing tablet height from floor760 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat static load capacity200 kg
Seat net weight per unit28 kg
Writing tablet bracket static load55 kg
Damped seat return noise level20 dB
Back foam density55 kg/m³
Seat foam density50 kg/m³
Seat foam indentation rebound rate60%
Fabric surface abrasion resistance50000 cycles
Factory warranty period6 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Support stanchions and frame2.0 mm thick cold-rolled Q235 steel, electrostatic powder coated
Seat and back outer panels15 mm thick multi-layer plywood with light wood veneer, polyester paint finish
Armrest support frames2.0 mm thick stamped steel, gray powder coated
Armrest contact caps29 mm thick solid oak with PU clear paint finish
Seat and back padding130 mm thick high-density cold-cure PU foam at back, 110 mm at seat
Writing tablet surface15 mm thick high-density melamine-faced board with PVC edge banding
Writing tablet bracket14 mm thick aluminum alloy hinged folding mechanism
Floor mounting hardwareM10 hex expansion bolts with gray plastic dust caps
Seat return mechanismSteel torsion spring with polymer damping buffer
Side cover panels3 mm thick PP composite, gray matte finish
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat flip-up returnSpring-damped automatic return to vertical stowed position when unoccupied
Writing tablet operationHinged flip-up tablet stows flush between seats when not in use
Installation methodPermanent floor-mounted anchoring for tiered lecture hall flooring
Modular row configurationLinked shared-frame design supports custom row lengths per venue layout
Seat damping controlIntegrated rotary damper prevents slamming and reduces reset noise to ≤20dB
Aisle clearance when stowedFolded seat creates 450 mm clear aisle width for pedestrian passage
Tablet stowage lockPositive retention latch holds folded tablet in stored position during entry/exit
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Master carton dimensions (frame set)1150 x 650 x 420 mm
Master carton dimensions (panel set)1050 x 550 x 350 mm
Gross weight per 2-seat unit65 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Tiered university lecture hallsFixed layout, stowable seats and integrated tablets support academic teaching
Corporate conference and report hallsLow-noise return and durable build suit formal presentation events
Training center auditoriumsModular row design allows custom layout for multi-use training spaces
School multimedia classroomsErgonomic dimensions and writing surfaces suit long-duration classes
Government and institution meeting hallsDurable fixed installation supports high-traffic public assembly use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2003Applies to strength, durability and safety requirements for auditorium seating
EN 1022:2019Applies to stability testing for public seating furniture
EN 12520:2015Applies to mechanical safety requirements for seating furniture
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10802-2006Applies to quality requirements for flexible polyurethane foam used in seating
GB 18581-2020Applies to limit of harmful substances in solvent-based wood coatings for panels
GB/T 3324-2017Applies to general technical requirements for wooden furniture components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 10802-2006:Applies to quality requirements for flexible polyurethane foam used in seating;
2. GB 18581-2020:Applies to limit of harmful substances in solvent-based wood coatings for panels;
3. GB/T 3324-2017:Applies to general technical requirements for wooden furniture components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LS-AUD-580FL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LS-AUD-580FL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LS-AUD-580FL打开导出工具

页面快速操作

发布采购询价

产品描述

Yaqi Furniture introduces the LS-AUD-580FL floor-mounted folding lecture hall auditorium seating, a purpose-built public seating solution engineered for high-traffic assembly spaces. This seating line features a streamlined, space-conscious layout centered on a modular linked shared-frame design that supports custom row lengths aligned with venue floor plans. When seats are unoccupied, they automatically return to a vertical stowed position to create clear, unobstructed aisle access, while integrated flip-up writing tablets stow flush between adjacent seats when not in use for a clean, uniform visual profile across rows. Each seating unit is constructed with durable, commercial-grade materials to withstand frequent daily use. The support stanchions and main frame are fabricated from 2.0 mm thick cold-rolled Q235 steel with an electrostatic powder coated finish, while armrest support frames use 2.0 mm thick stamped steel with a gray powder coat. Seat and back outer panels consist of 15 mm thick multi-layer plywood finished with light wood veneer and polyester paint, paired with 29 mm thick solid oak armrest contact caps topped with a PU clear paint finish for comfortable, long-wearing arm support. Seat and back cushions use high-density cold-cure PU foam, with 130 mm thick padding at the back and 110 mm thick padding at the seat, upholstered to deliver consistent support across extended seating sessions. The flip-up writing tablet features a 15 mm thick high-density melamine-faced surface with PVC edge banding, mounted on a 14 mm thick aluminum alloy hinged folding mechanism. All units anchor permanently to tiered flooring via M10 hex expansion bolts with gray plastic dust caps, and the seat return mechanism uses a steel torsion spring paired with a polymer damping buffer. Functional design details support reliable, low-maintenance operation: the spring-damped seat return eliminates slamming, operating at a low noise level to reduce disruption during events, while the stowed seat position delivers 450 mm of clear aisle width for smooth pedestrian entry and exit. The writing tablet includes a positive retention latch to hold it securely in the stored position during patron movement, and delivers a stable surface for note-taking. Per-seat static load capacity reaches 200 kg, with the writing tablet bracket supporting a 55 kg static load for durable performance. This seating is suited for tiered university lecture halls, corporate conference and report halls, training center auditoriums, school multimedia classrooms, and government or institution meeting halls, where fixed, durable seating supports regular high-foot-traffic assembly, teaching, presentation, and training activities. For procurement, teams should note that units are delivered with one 2-seat set split across two cartons, with an average assembly time of 40 minutes per set, and layout planning should align with the 600 mm seat center-to-center distance to ensure proper row spacing and access across all venue configurations.
