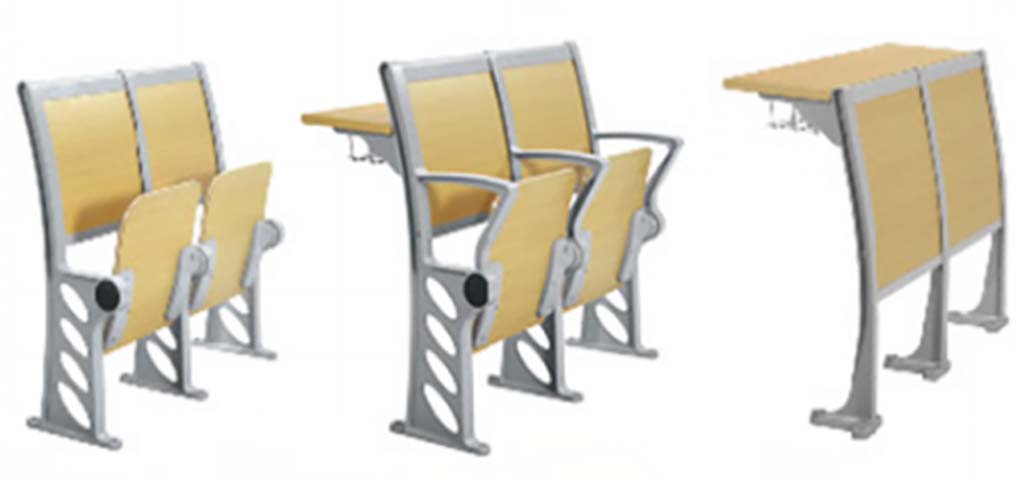

Fixed Ganged Auditorium Lecture Hall Seating with Rear Folding Writing Tablet Specifications

AUD-RT2-ALU

代码:8G5V5TV1
获取供应商报价
2026-08-22 18:01人气: 59
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-RT2-ALU

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (2-seat unit, tablet deployed)1160 x 860 x 1080 mm
Seat center-to-center spacing610 mm
Seat height above finished floor460 mm
Seat clear usable width505 mm
Seat cushion depth500 mm
Armrest height above finished floor660 mm
Backrest height above seat620 mm
Minimum required row-to-row pitch1000 mm
Deployed writing tablet usable surface300 x 500 mm
Aluminum floor mount base footprint380 x 80 mm
Writing tablet support tube diameter14 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Seat vertical static load capacity150 kg
Seat return mechanism operational cycle life100000 cycles
Unit net weight per seat position22 kg
Recommended occupant weight limit per seat120 kg
Product expected service life10 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
Caster Rolling Durability ReferenceAcceptance target 30000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Floor stand and side frameDie-cast aluminum alloy with electrostatic powder coating
Seat and back cushion padding60 kg/m³ high-resilience cold-cure PU foam
Seat and back upholsteryWear-resistant public-seat wool-linen blend fabric
Seat and back inner support pan15 mm thick high-density multi-layer hardwood plywood
Folding writing tablet surface12 mm thick painted multi-layer hardwood plywood
Armrest surface and supportsDie-cast polished aluminum with T2.0 mm cold-rolled steel bracket
Seat pivot mechanism19x14x2.0 mm oval steel tube with torsion spring and damper
Fasteners and mounting hardwareGalvanized hex socket expansion bolts with decorative dust caps
Upholstery seam stitching30 mm stitch pitch, reinforced high-tensile polyester thread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat tip-up operationSpring-assisted automatic return with hydraulic damper for silent, slow closing
Rear writing tablet deploymentFold-down mechanism that stows flush against seat back when not in use
Row ganging systemIntegrated aluminum side frames connect adjacent seats into rigid continuous rows
Floor mounting designFlanged base plates secured to concrete/raised floor via expansion bolts
Tablet integrated featuresMolded pen slot and cup holder recess on deployed writing surface
Egress clearanceUpright stowed seat provides minimum 300 mm clear aisle passage between rows
Surface maintenanceStain-resistant fabric finish and smooth powder-coated metal surfaces for wipe-down cleaning
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

University lecture hallsFixed row configuration with writing tablets supports continuous note-taking for classes
Corporate conference and training auditoriumsQuiet damper return and durable upholstery suits frequent corporate event use
School multi-purpose auditoriumsFloor-mounted construction and high load rating supports daily student assembly use
Government meeting hallsFormal appearance and stable ganged construction suits official public meeting spaces
Training center classroomsFold-up seats allow flexible egress between rows during multi-session training events
Cinema and community performance venuesContoured back support and ergonomic seat height suits long-duration seated events
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2007Furniture - Public seating, test methods and requirements for strength and durability
EN 1022:2018Furniture - Seating, determination of stability for fixed installation seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Standard for general-purpose office and public seating, applicable to large-user weight testing
ANSI/BIFMA X5.4-2022Standard for lounge and public seating strength and durability requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to plywood tablet and seat pan components
GB/T 35607-2017Technical requirements for public seating furniture, applicable to fixed auditorium seating performance
GB/T 19995.2-2005Performance requirements for upholstered furniture seating, applicable to seat and back padding
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to plywood tablet and seat pan components;
2. GB/T 35607-2017:Technical requirements for public seating furniture, applicable to fixed auditorium seating performance;
3. GB/T 19995.2-2005:Performance requirements for upholstered furniture seating, applicable to seat and back padding;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-RT2-ALU

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-RT2-ALU

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-RT2-ALU打开导出工具

页面快速操作

发布采购询价

产品描述

The Fixed Ganged Auditorium Lecture Hall Seating with Rear Folding Writing Tablet, model AUD-RT2-ALU, is an unbranded public seating solution designed for high-traffic shared gathering spaces. Its structured linear layout connects adjacent seats into continuous rigid rows via integrated aluminum side frames, with flanged base plates mounted directly to finished floors for stable, permanent placement. When not in use, the tip-up seats return to a stowed upright position, and the rear writing tablet folds flush against the seat back to preserve clear aisle passage between rows for smooth egress. For seating comfort, each unit features contoured, fabric-upholstered padded seat and back cushions, with polished die-cast aluminum armrests supported by cold-rolled steel brackets. The frame and floor stands use die-cast aluminum alloy finished with electrostatic powder coating, while the folding writing tablet is constructed from painted multi-layer hardwood plywood mounted on aluminum supports. Internal seat and back support pans use high-density multi-layer hardwood plywood, and the pivot mechanism incorporates a torsion spring and hydraulic damper paired with galvanized expansion bolt mounting hardware with decorative dust caps. Upholstery uses wear-resistant, stain-resistant wool-linen blend fabric stitched with reinforced high-tensile polyester thread, with high-resilience cold-cure PU foam padding for both seat and back cushions. The spring-assisted tip-up seat operates with slow, silent automatic return to minimize disruption during events. The deployed writing tablet includes molded recesses for a pen slot and cup holder to support note-taking and personal item placement, and the upright stowed seat provides sufficient clear passage between rows. Smooth powder-coated metal surfaces and stain-resistant fabric allow simple wipe-down cleaning for routine maintenance, with a rated service life for long-term regular use. This seating is well suited for university lecture halls, corporate conference and training auditoriums, K-12 multi-purpose school auditoriums, government meeting halls, dedicated training center classrooms, and community cinema or performance venues, supporting everything from extended seated events and daily student assemblies to official public meetings and multi-session training programs. For procurement planning, each 2-seat unit ships in two cartons, with straightforward on-site assembly. Buyers should confirm their space allows the required minimum row-to-row pitch to accommodate both deployed writing tablets and clear egress, select upholstery options aligned with expected daily traffic volumes, and coordinate mounting hardware compatibility with their existing floor type, whether solid concrete or raised access flooring, prior to installation.
