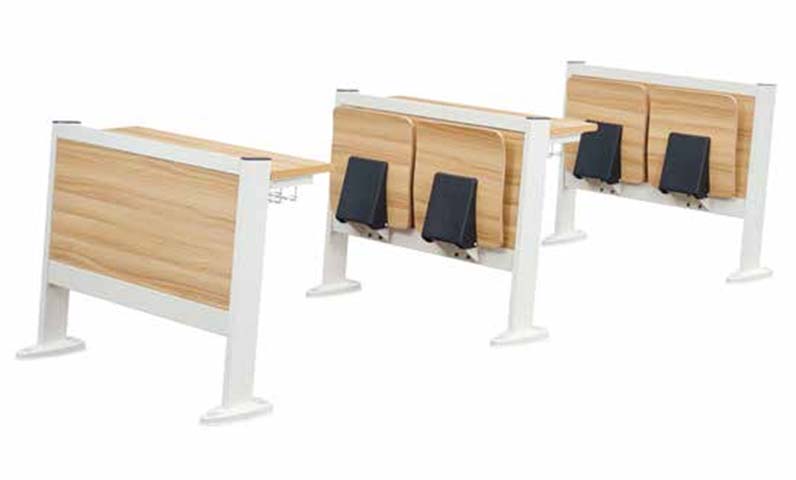

商品供应商Linked Modular Lecture Hall Desk-Chair Set, Folding Writing Tablets,multi-layer
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Finished Seat Cushion Thickness | 90 mm | |
|---|---|---|
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| single seat static load rating | 150 kg | |
|---|---|---|
| writing surface static load rating | 50 kg | |
| net weight per 2-seat module | 45 kg | |
| recommended continuous occupancy | 8 hours per day | |
| folding mechanism cycle life | 12000 cycles | |
| frame vertical load capacity | 600 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| support frame | 1.5mm thick cold-rolled steel with white epoxy powder coating | |
|---|---|---|
| writing tablet surface | 25mm thick E1 grade melamine laminated particleboard, wood grain finish | |
| seat/back panels | 18mm thick E1 grade melamine laminated particleboard, light oak finish | |
| folding mechanism brackets | 1.8mm thick stamped steel with black anti-corrosion coating | |
| leg base feet | Die-cast aluminum with anti-slip floor pads | |
| modesty panel core | 16mm thick particleboard with matching wood grain laminate | |
| seat buffer pads | Black injection-molded polypropylene impact pads | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel | |
| Five-star Base Material Thickness | Metal base wall 3.5 mm; diameter 700 mm |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| seat panel operation | Spring-assisted gravity fold-up, locks in vertical stored position when unoccupied | |
|---|---|---|
| bag storage hook | Under-table integrated metal hook for backpack and personal item storage | |
| module linking | End-to-end aligned connection for continuous row installation in lecture halls | |
| floor anchoring | Pre-drilled base plates for permanent bolt fixing to raised or solid floors | |
| writing surface use | Fixed horizontal work surface remains in place when seats are folded | |
| row alignment | Interlocking frame joints ensure consistent 550mm seat spacing across long rows | |
| noise damping | Integrated PP buffer pads eliminate impact noise when folding seats to stored position | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| university lecture halls | Installed in continuous rows to maximize seating density for large classes | |
|---|---|---|
| corporate training rooms | Suitable for multi-day training sessions with fold-up seats for easy cleaning | |
| exam venues | Fixed spacing prevents seat movement, providing standardized examination conditions | |
| conference centers | Used for seminar events requiring clear aisle access when seats are folded | |
| school multimedia classrooms | Durable construction supports daily use by secondary and tertiary students | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| educational furniture strength/stability requirement | EN 1729:2015 | |
|---|---|---|
| furniture vertical load test method | EN 1730:2011 |
适用于中国市场项目的标准
| general technical requirement for educational furniture | GB/T 3976 | |
|---|---|---|
| test method for furniture surface durability | GB/T 4893.1 | |
| limit of formaldehyde emission for wood-based panels | GB 18580 |
本产品须满足以下技术参数要求: 1. general technical requirement for educational furniture:GB/T 3976; 2. test method for furniture surface durability:GB/T 4893.1; 3. limit of formaldehyde emission for wood-based panels:GB 18580; 最终交付参数、检测报告和验收标准以双方采购合同为准。
