PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	580 × 680 × 1080 mm
Per-seat center distance	580 mm
Overall per-seat unit size	580 x 680 x 1080 mm
Seat height above finished floor	450 mm
Seat usable depth	460 mm
Backrest total height above seat	630 mm
Armrest height above seat	218 mm
Side writing tablet dimensions	268 x 238 x 15 mm
Minimum recommended row pitch	900 mm
Floor mounting foot plate dimensions	380 x 60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Per-seat static load capacity	200 kg
Writing tablet vertical static load	30 kg
Seat impact resistance rating	85 kg
Recommended per-seat user weight	150 kg
Seat return mechanism cycle life	50000 cycles
Net weight per individual seat	28 kg
Standard product warranty period	8 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Primary support frame	2.0mm thick cold-rolled steel, electrostatic powder-coated gray finish
Seat core panel	15mm thick fireproof HPL laminate over 11mm multi-layer plywood
Backrest core panel	15mm thick fireproof MDF panel with fabric upholstered inset
Seat cushion padding	110mm thick high-density cold-cure PU foam, 45kg/m³ density
Backrest padding	130mm thick high-density cold-cure PU foam, 40kg/m³ density
Upholstery fabric	Abrasion-resistant polyester fabric, 50000 Martindale cycles, breathable
Writing tablet	15mm thick HPL fireproof board with PVC edge banding, aluminum alloy support arm
Armrests	Integral molded PP caps over steel support brackets, matte gray finish
Seat return mechanism	Torsion spring with hydraulic damper for quiet slow seat return
Floor fixing hardware	M10 galvanized steel expansion bolts with plastic dust covers
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Automatic seat fold-up	Seat returns to vertical position via damped torsion spring when unoccupied, no manual operation required
Side swing writing tablet	Tablet rotates out from side arm to horizontal use position, locks in place for writing/laptop use
Floor-mounted fixed installation	Units are anchored to concrete tiered floors via expansion bolts, no movement after installation
Ganged row connection	Adjacent seats connect via shared steel cross beams for unified row rigidity
Rear modesty panel	Full-height rear panel acts as front barrier for the row behind, conceals under-seat space
Upholstered back support	Contoured padded backrest provides lumbar support for 90-minute seated lecture duration
Integral armrest separation	Dividing armrests between adjacent seats define individual seating spaces for occupancy comfort
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Tiered university lecture halls	Fixed row configuration with fold-up seats supports high-density scheduled class use
Multimedia training rooms	Integrated writing tablets support note-taking and laptop use during training sessions
Corporate conference auditoriums	Durable steel frame and easy-clean upholstery suit regular public event use
Government meeting halls	Fixed floor mounting provides secure, stable seating for official proceedings
School multimedia classrooms	Space-saving fold-up seats allow easy aisle access between class periods
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1729-1:2015	Furniture for educational institutions, seating strength and stability requirements
EN 1022:2018	Domestic and public seating stability test method
EN 12727:2000	Ranked seating for public venues mechanical performance requirements

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel components of seating
GB/T 3325-2017	General technical requirements for metal furniture, applicable to steel frame structure
GB 20286-2006	Fire performance requirements for public place furniture upholstery and panels
GB/T 10357.3-2013	Mechanical test methods for furniture seating strength and durability

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to panel components of seating；
2. GB/T 3325-2017：General technical requirements for metal furniture, applicable to steel frame structure；
3. GB 20286-2006：Fire performance requirements for public place furniture upholstery and panels；
4. GB/T 10357.3-2013：Mechanical test methods for furniture seating strength and durability；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · LHS-FW-580

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · LHS-FW-580

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LHS-FW-580打开导出工具

页面快速操作

发布采购询价

产品描述

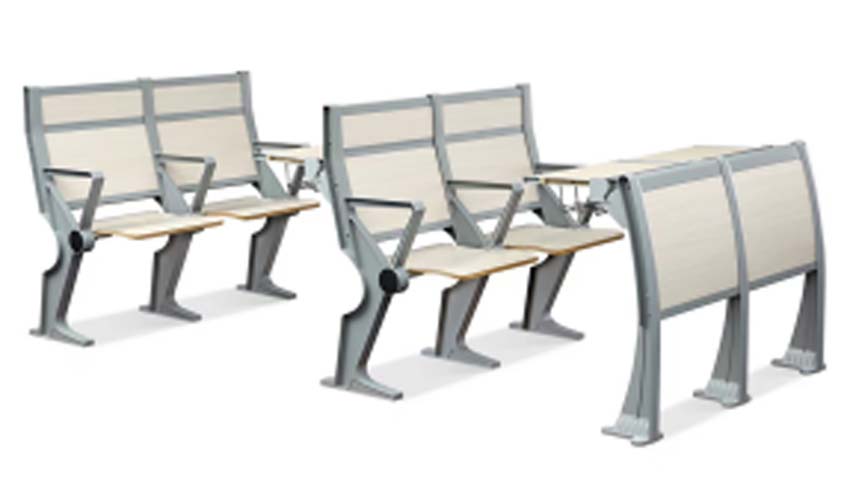

This unbranded fixed ganged floor-mounted folding lecture hall seating, model LHS-FW-580, presents a streamlined, cohesive row-based design tailored for structured, high-traffic seating layouts. Adjacent units connect via shared steel cross beams to form rigid, aligned rows, with contoured upholstered backrests, integrated dividing armrests, and a full-height rear modesty panel that conceals under-seat space and acts as a front barrier for the row behind. Each seat folds automatically to a vertical position when unoccupied, keeping aisle pathways clear, while side-mounted writing tablets swing out to a locked horizontal position for user access.
The seating is built on a 2.0mm thick cold-rolled steel frame with an electrostatic powder-coated matte gray finish, anchored securely to concrete tiered floors with expansion bolts for permanent, stable installation. Seat cores combine fireproof HPL laminate over multi-layer plywood, paired with 110mm thick high-density cold-cure PU foam cushioning, while backrests use fireproof MDF cores with 130mm thick contoured PU foam padding upholstered in abrasion-resistant, breathable polyester fabric. Armrests feature integral molded PP caps over steel brackets, and 15mm thick HPL writing tablets include PVC edge banding and aluminum alloy support arms. A torsion spring mechanism with hydraulic damper enables quiet, slow automatic seat return without manual operation. The contoured backrest delivers targeted lumbar support suitable for extended seated sessions, while the fold-up design supports smooth traffic flow between use periods.
This seating is well suited for tiered university lecture halls, multimedia training rooms, corporate conference auditoriums, government meeting halls, and school multimedia classrooms, supporting activities ranging from scheduled classes and training sessions to public events and official proceedings.
For procurement planning, note that each seat ships in two cartons, with a per-seat assembly time of 40 minutes. The minimum recommended row pitch for installation is 900 mm, and the product carries an 8-year standard warranty. Load ratings support a recommended per-seat user weight of 150 kg, with a writing tablet vertical static load capacity of 30 kg, and the abrasion-resistant upholstery is rated for 50000 Martindale cycles to withstand regular high-frequency use.

Fixed Ganged Floor-Mounted Folding Lecture Hall Seating with Side Writing Tablets Specifications
