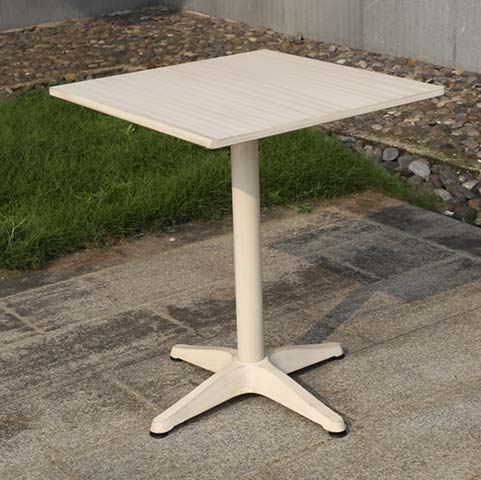

2-Seater Weatherproof Square Outdoor Patio Bistro Table with Cross Pedestal Base Specifications

OBT-SQ70-WH-CROSS

代码:11D2JGV1
获取供应商报价
2026-08-15 11:44人气: 33
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OBT-SQ70-WH-CROSS

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions700 x 700 x 760 mm
Tabletop thickness25 mm
Central support column diameter76 mm
Cross base total spread680 mm
Base foot width80 mm
Undertable knee clearance height720 mm
Tabletop edge overhang from column312 mm
Base foot height from ground30 mm
Tabletop drainage groove width8 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight15 kg
Static tabletop uniform load capacity100 kg
Recommended seating capacity2 people
Outdoor weather durability rating5 years
Surface stain resistanceGrade 5
Base slip resistance static coefficient0.6
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

TabletopMatte white weather-resistant HDPE resin with integrated parallel drainage grooves
Central support columnPowder-coated white aluminum alloy tube
4-prong cross baseDie-cast aluminum with matte white powder coat finish
Base foot padsBlack non-slip rubber pads attached to each foot end
Tabletop edge trimSmooth rounded integrated resin edge
Hardware fastenersStainless steel assembly bolts
Surface coatingUV-stabilized matte polyester powder coat
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Tabletop drainageIntegrated parallel surface grooves direct rainwater off tabletop to eliminate pooling
Stable freestanding placement4-prong cross base distributes weight evenly to prevent tipping on level paved surfaces
Unobstructed leg roomSingle central pedestal eliminates corner legs, allowing full 360-degree leg access for seated users
Tool-enabled assemblyKnock-down design connects tabletop, column and base with included hardware for on-site setup
Surface maintenanceNon-porous smooth surface wipes clean with mild soap and water, no sealing or painting required
Leveling compatibilityBase foot pads accommodate minor surface unevenness without separate adjustment glides
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Commercial outdoor cafe seatingPairs with two bistro chairs for sidewalk coffee shop or restaurant patio dining
Residential patio/balcony useCompact footprint fits small residential balconies, terraces or backyard patio spaces
Poolside leisure placementWeatherproof construction resists water splashes and humidity for poolside seating areas
Temporary event setupLightweight knock-down design suits pop-up markets, outdoor events and catering setups
Break area outdoor seatingAppropriate for office outdoor break zones or staff courtyard dining areas
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Outdoor furniture seating and table safety requirements for general public use
EN 581-3:2017Mechanical safety and structural performance test methods for outdoor tables
EN 1022:2018Domestic and contract furniture stability test methods for freestanding tables
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for resin-composite outdoor table structural stability testing
GB/T 4893.8-2013Surface wear resistance test method for furniture finishes, applicable for tabletop durability validation
GB/T 17657-2013Test methods for evaluating physical and chemical properties of wood-based panels, applicable for resin tabletop material performance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for resin-composite outdoor table structural stability testing;
2. GB/T 4893.8-2013:Surface wear resistance test method for furniture finishes, applicable for tabletop durability validation;
3. GB/T 17657-2013:Test methods for evaluating physical and chemical properties of wood-based panels, applicable for resin tabletop material performance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OBT-SQ70-WH-CROSS

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OBT-SQ70-WH-CROSS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OBT-SQ70-WH-CROSS打开导出工具

页面快速操作

发布采购询价

产品描述

The JINQIU 2-Seater Weatherproof Square Outdoor Patio Bistro Table (model OBT-SQ70-WH-CROSS) delivers a streamlined, functional seating solution purpose-built for outdoor use, with a cohesive matte white finish paired with black non-slip rubber foot pads for subtle visual contrast. Its layout centers on a square slatted tabletop supported by a single central column connected to a 4-prong cross pedestal base, eliminating obstructive corner legs to create unobstructed access from all sides. Constructed for long-term outdoor resilience, the table uses a matte white weather-resistant HDPE resin tabletop with integrated parallel drainage grooves and smooth rounded integrated resin edges. The central support column is made of powder-coated white aluminum alloy tubing, while the cross base uses die-cast aluminum finished with the same matte white UV-stabilized polyester powder coat as the column. All assembly hardware is stainless steel, with secure multi-point connections at major structural joints. Each prong of the cross base is fitted with a black non-slip rubber foot pad to grip paved surfaces. Practical functionality is tailored to outdoor use: the tabletop’s integrated parallel grooves channel rainwater off the surface to prevent standing water, while the 4-prong cross base evenly distributes weight to resist tipping on level paved surfaces. The single central pedestal delivers full 360-degree leg access with generous knee clearance for seated users. The non-porous tabletop surface wipes clean with mild soap and water, requiring no ongoing sealing or painting, and the fixed rubber foot pads accommodate minor surface unevenness without additional adjustment components. The knock-down design allows on-site assembly with standard tools using included hardware. The table is sized to seat two people, with a uniform static tabletop load capacity to support standard dining and leisure items, and a rated outdoor weather durability lifespan for consistent outdoor placement. This bistro table fits a broad range of settings. For commercial use, it pairs with two bistro chairs to create functional sidewalk seating for cafes and restaurant patios, works for poolside dining areas due to its splash and humidity resistance, supports temporary pop-up markets, outdoor events and catering setups, and fits neatly into office outdoor break zones or staff courtyard dining areas. For residential use, its compact footprint works well on small balconies, terraces, and backyard patio spaces. Procurement teams and individual buyers should note that each unit ships across two cartons, with on-site assembly required. A range of finish options is available to coordinate with existing space design schemes, making it easy to match adjacent seating or exterior decor palettes.
