PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1067 × 1067 × 737 mm
Overall table dimensions	1067 x 1067 x 737 mm
Tabletop diameter	1067 mm
Tabletop glass thickness	13 mm
Central umbrella hole diameter	57 mm
Table edge rim width	30 mm
Leg tube outer diameter	32 mm
Mid-height support ring diameter	450 mm
Central support column diameter	50 mm
Leg spread footprint diameter	1020 mm
Under-table knee clearance height	680 mm
Foot pad diameter	25 mm
Finished Top Thickness	45 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Distributed tabletop static load capacity	75 kg
Recommended seating capacity	4 persons
Product net weight	17 kg
Frame rust resistance service life	3 years
Tempered glass impact resistance rating	Class A safety glass
Maximum compatible umbrella pole diameter	48 mm
Leveling adjustment range per foot	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Tabletop	13 mm water-ribbed tempered safety glass
Table edge rim	1.2mm thick rolled steel tube with white powder coating
Leg assemblies	1.2mm thick bent steel tubular sections with white powder coating
Central support column	1.5mm thick welded steel tube with white powder coating
Mid-height support brace	1.0mm thick perforated steel ring with white powder coating
Foot pads	Injection-molded non-scuff polypropylene pads
Frame finish	80μm thick polyester powder coating over iron phosphate pre-treatment
Assembly hardware	Zinc-plated steel bolts and lock washers
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Umbrella pass-through	Central 57mm hole accepts standard patio umbrellas for dining shade
Leveling feet	Threaded adjustable feet compensate for up to 10mm of uneven patio slab surface
Knock-down assembly	Bolt-together construction requires only included hex key for full assembly
Wipe-clean surface	Smooth glass and powder-coated metal surfaces allow quick spill and debris removal
Weather-resistant construction	Sealed frame joints and powder coating resist rain, dew and UV exposure for outdoor use
Structural bracing	Mid-height steel ring connects legs to central column to reduce frame wobble
Non-marring contact	Plastic foot pads prevent scuffing and scratching on concrete, stone or wood patio surfaces
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 1100× 300 mm
Reference Packaged Gross Weight	90 kg/set in 2 cartons
Reference Packaging Volume	0.55 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential patio dining area	Sized to fit small balconies, concrete patios or deck spaces for casual outdoor meals
Bistro outdoor seating area	Compact round shape works for cafe, bistro or guesthouse outdoor patio seating zones
Poolside lounge area	Weather-resistant frame and easy-wipe glass surface tolerate splashes and humid pool environments
Garden lawn adjacent hardscaping	Stable splayed leg base sits securely on paved stone or concrete surfaces next to planting beds
Small urban balcony space	1067mm diameter footprint fits compact apartment balconies with space for 4 chairs
Temporary event seating	Quick assembly and stable design suits pop-up event, backyard party or catering outdoor setups

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017	Safety standard reference for outdoor residential patio furniture, covering general safety requirements
EN 581-3:2017	Mechanical safety requirement reference for outdoor dining tables, covering static load and stability
EN 12150-1:2015	Tempered soda-lime silicate safety glass standard reference for tabletop glazing

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements applicable for metal outdoor dining tables, covering dimensional stability and structural safety
GB 15763.2-2005	Safety requirement applicable for tempered glass used in furniture tabletop applications, covering break safety
GB/T 19001-2016	Quality management system reference for consistent manufacturing of finished outdoor furniture

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements applicable for metal outdoor dining tables, covering dimensional stability and structural safety；
2. GB 15763.2-2005：Safety requirement applicable for tempered glass used in furniture tabletop applications, covering break safety；
3. GB/T 19001-2016：Quality management system reference for consistent manufacturing of finished outdoor furniture；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · ODT-RND-GLS-WHT-1060

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · ODT-RND-GLS-WHT-1060

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ODT-RND-GLS-WHT-1060打开导出工具

页面快速操作

发布采购询价

产品描述

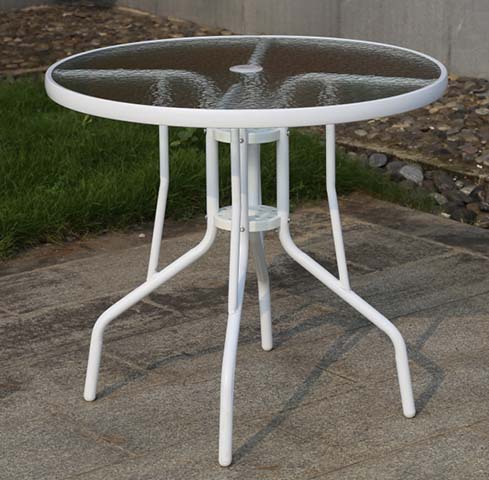

This round outdoor patio dining table features a clean, approachable silhouette defined by its seamless circular tabletop and splayed four-leg base layout. The form prioritizes open, accessible seating around its perimeter, with no sharp corners to impede movement around the dining space, and a central integrated umbrella hole positioned to deliver even shade across the table surface for guests.
The table is built for durable outdoor use, starting with a water-ribbed tempered safety glass tabletop, rated Class A for impact resistance, secured within a rolled steel edge rim. All structural frame components—legs, central support column, and mid-height perforated steel bracing ring—are steel finished in an 80μm thick white polyester powder coating applied over an iron phosphate pre-treatment to support weather resilience. The frame connects to zinc-plated steel bolts and lock washers for assembly, and rests on injection-molded non-scuff polypropylene foot pads. The table supports a distributed static load of 75 kg across its surface, with the mid-height bracing ring linking splayed legs to the central column to minimize wobble during use.
Functional design elements cater directly to outdoor dining needs. The central umbrella hole accommodates standard patio umbrella poles, while threaded adjustable leveling feet compensate for uneven patio surfaces to keep the table stable. The smooth glass and powder-coated metal surfaces wipe clean quickly to remove spills and debris, and sealed frame joints alongside the powder coat finish resist rain, dew, and UV exposure. Non-marring foot pads protect concrete, stone, and wood patio surfaces from scuffs and scratches. Knock-down bolt-together assembly requires only the included hex key, with a typical assembly time of 40 minutes per unit, and is delivered across two cartons per set.
This table seats four people comfortably, making it suited for a wide range of spaces. It fits compact residential settings including small urban balconies, concrete patios, wood decks, and paved garden areas adjacent to planting beds, as well as commercial bistro, cafe, and guesthouse outdoor seating zones. Its weather-resistant construction also makes it appropriate for poolside lounge areas where it tolerates splashes and humid conditions, and its quick, stable assembly supports temporary event use for pop-ups, backyard gatherings, and outdoor catering setups.
Procurement teams and residential buyers should note the 3-year rust resistance service life for the steel frame, and confirm umbrella pole diameter compatibility to match preferred shade accessories. The unit’s knock-down format supports streamlined transport and storage, and the white powder-coated finish coordinates with a broad range of outdoor seating material and color palettes.

Round Tempered Glass Top Outdoor Patio Dining Table with Umbrella Hole Specifications
