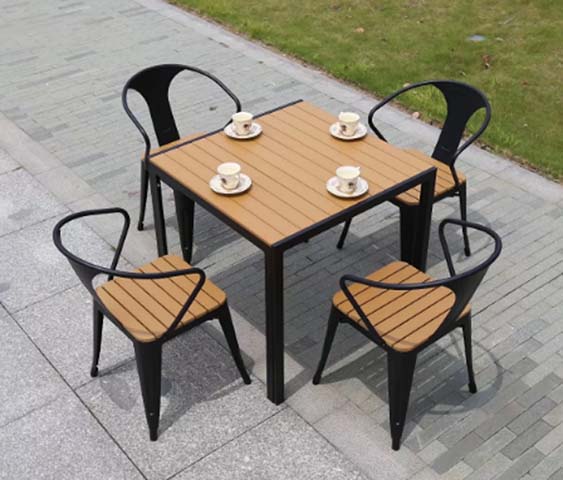

4-Person Square Outdoor Patio Dining Set with Faux Wood Slats and Black Metal Frame Specifications

ODS-SQ75-4PC-BLKFW

代码:AA8MF7V1
获取供应商报价
2026-08-14 18:42人气: 25
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ODS-SQ75-4PC-BLKFW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall table dimensions750 x 750 x 750 mm
Tabletop slat thickness30 mm
Table leg section40 x 40 mm square steel
Floor to table apron clearance680 mm
Per-chair overall dimensions560 x 560 x 890 mm
Chair seat height450 mm
Chair seat slat thickness25 mm
Chair backrest height above seat440 mm
Chair armrest height above seat220 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set net weight55 kg
Per-chair static load capacity136 kg
Seating capacity4 people
Frame coating abrasion resistance1000 cycles
WPC slat UV aging resistance300 hours
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement WarrantyStructure 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Table frame1.2mm thick powder-coated carbon steel
Table slatsExtruded wood-plastic composite, teak wood-tone finish
Chair frame1.0mm thick powder-coated carbon steel, integrated curved arm/back
Chair seat slatsExtruded wood-plastic composite, matching table finish
Frame fastenersStainless steel M6 bolts and nuts
Chair foot glidesHigh-density polyethylene non-slip caps
Surface coatingElectrostatic polyester powder coating, matte black
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color CountRecommended 6top finishes and 3frame colors
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Knock-down assemblyBolt-together construction with included hex key
Surface weather resistanceWaterproof, rust-resistant frame and slats
Stackable chair storageChairs stack vertically to 4 units high
Floor protectionIntegrated plastic glides prevent hard surface scratching
Surface maintenanceWipe clean with damp cloth and neutral detergent
Seating ergonomicsCurved integrated armrests support forearms during dining
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential patio useSuitable for home balconies, backyards, and garden dining areas
Commercial outdoor seatingSuitable for cafe, bistro, and restaurant sidewalk dining zones
Compact space installationFits small paved outdoor areas and narrow balcony spaces
All-weather useSuitable for year-round placement in temperate climate zones
Casual dining useDesigned for tea, coffee, and light meal service for four people
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Outdoor furniture safety and strength requirements for seating
EN 581-2:2017Outdoor furniture safety and strength requirements for tables
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for outdoor metal furniture
GB/T 24508-2009Performance requirements for wood-plastic composite decking/slats
GB 18584-2001Indoor decorating material furniture harmful substance limit
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for outdoor metal furniture;
2. GB/T 24508-2009:Performance requirements for wood-plastic composite decking/slats;
3. GB 18584-2001:Indoor decorating material furniture harmful substance limit;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ODS-SQ75-4PC-BLKFW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ODS-SQ75-4PC-BLKFW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ODS-SQ75-4PC-BLKFW打开导出工具

页面快速操作

发布采购询价

产品描述

This 4-person square outdoor patio dining set blends a cohesive, understated slatted design with durable, purpose-built construction for casual outdoor dining. The square table and four matching chairs feature warm teak-toned extruded wood-plastic composite slats paired with a matte black electrostatic polyester powder-coated steel frame, creating a balanced visual profile that fits both modern and classic outdoor design schemes. The compact 750 x 750 x 750 mm table is paired with 560 x 560 x 890 mm chairs that offer 450 mm seat height and 440 mm backrest height above the seat, with integrated curved arm and back frames that create a smooth, unbroken silhouette. The chairs stack vertically up to four units high, reducing footprint during off-season or non-use storage. The set uses 1.2 mm thick powder-coated carbon steel for the table frame with 40 x 40 mm square legs, and 1.0 mm thick matching powder-coated carbon steel for chair frames, secured with stainless steel M6 bolts and nuts. The frame coating resists abrasion across 1000 test cycles, while the WPC slats hold up to 300 hours of UV exposure; the frame and slats are both waterproof and rust-resistant for reliable outdoor placement. Each chair supports 136 kg static load, while the tabletop holds 150 kg uniformly distributed weight, with 30 mm thick table slats, 25 mm seat slats, and high-density polyethylene non-slip foot glides that prevent hard surface scratching. The curved integrated armrests support forearms for comfortable dining, and surfaces wipe clean easily with a damp cloth and neutral detergent. The bolt-together knock-down assembly includes a hex key for setup, with an 40 minute assembly time per set, and features built-in cable management with capacity for 10 power or data cables on a tray supporting 10 kg. Sized to fit compact paved outdoor areas and narrow balcony spaces, the set works equally well for residential patios, home balconies, backyards, and garden dining areas, as well as commercial sidewalk seating for cafes, bistros, and restaurants. It is rated for year-round placement in temperate climate zones, designed specifically for tea, coffee, and light meal service for four people. When procuring, note the set ships as one unit across two cartons, with a total packaged gross weight of 90 kg and 0.55 cbm packaging volume, and verify site access can accommodate the 2100×1100×300 mm package dimensions before delivery.
