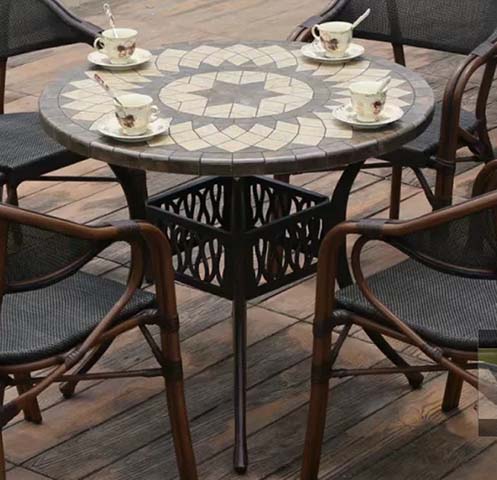

4-Seat Round Radial Mosaic Tile Top Outdoor Patio Dining Table with Lattice Lower Shelf Specifications

OUT-RDT-MOS-1070

代码:DLSULWV1
获取供应商报价
2026-08-15 10:00人气: 25
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OUT-RDT-MOS-1070

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1070 x 1070 x 750 mm
Tabletop thickness30 mm
Lower shelf dimensions450 x 450 x 20 mm
Knee clearance height670 mm
Central pedestal pole diameter60 mm
Splayed leg spread diameter1020 mm
Tabletop edge lip thickness15 mm
Lower shelf vertical clearance above floor380 mm
Apron height under tabletop80 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight22 kg
Distributed static tabletop load capacity75 kg
Rated seating capacity4 people
Frame coating rust resistance service life3 years
Mosaic tile surface UV stability5 years
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
Recommended Procurement WarrantyCarcass 5 years; hardware 3 years; finish 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop surface10mm thick ceramic mosaic tiles with radial sunburst geometric inlay
Tabletop backing panel18mm thick fiber cement board
Tabletop edge trim2mm thick powder-coated steel band
Frame and leg structure1.5mm wall thickness powder-coated carbon steel
Lower storage shelf1.2mm thick steel lattice with open crisscross weave
Central support pedestal2mm wall thickness tubular steel
Fastener hardwareZinc-plated steel bolts and connectors
Floor contact glides10mm diameter non-marking plastic glides
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Outdoor weather suitabilityRain and UV resistant construction, designed for uncovered patio use
Lower shelf storageOpen lattice mid-height shelf holds small dining items, napkins or table accessories
Stable pedestal supportFour splayed legs anchor central pedestal to tabletop rim to prevent tipping
Flat tabletop dining surfaceSmooth level mosaic surface supports full place settings, drinkware and serving dishes
Partial on-site assemblyFrame and legs attach to pre-assembled tabletop with included hardware
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential patio and deck diningSuits open outdoor decks, balconies and garden patios for casual family meals
Small café and bistro outdoor seatingAppropriate for boutique café al fresco seating areas with four guest capacity
Four-person casual dining configurationPairs with four standard height patio dining chairs for balanced seating layout
Seasonal outdoor use setupRecommended for use with a weather cover during off-season wet or cold periods
Mixed material outdoor living spacesComplements wicker, metal and wood patio furniture collections
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Outdoor furniture seating and table safety requirements, general safety benchmark
EN 581-3:2017Mechanical safety requirements for outdoor tables, structural load testing reference
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable for frame strength and finish inspection
GB 18584-2001Limit of harmful substances in indoor furniture, recommended for material emission screening
GB/T 19995.2-2005Performance requirements for outdoor furniture metal surfaces, applicable for coating durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable for frame strength and finish inspection;
2. GB 18584-2001:Limit of harmful substances in indoor furniture, recommended for material emission screening;
3. GB/T 19995.2-2005:Performance requirements for outdoor furniture metal surfaces, applicable for coating durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OUT-RDT-MOS-1070

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OUT-RDT-MOS-1070

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OUT-RDT-MOS-1070打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded 4-seat round outdoor patio dining table, model OUT-RDT-MOS-1070, delivers a structured, decorative option for open-air dining setups. Its circular tabletop features a radial sunburst geometric inlay of ceramic mosaic tiles, creating a refined visual focal point that anchors surrounding seating arrangements. The central pedestal support connects to four splayed legs, creating an open, unobstructed layout that allows comfortable seating for four guests without awkward leg positioning, while the open lattice lower shelf sits at mid-height to add functional visual depth without cluttering the table’s silhouette. The table is built for sustained outdoor use, with a 30mm thick tabletop constructed from 10mm ceramic mosaic tiles set on an 18mm fiber cement backing panel, trimmed with a 2mm powder-coated steel edge band. Its frame, central pedestal, splayed legs, and lower shelf are fabricated from powder-coated carbon steel with black rust-resistant coating, rated for 3 years of rust resistance, while the mosaic tile surface offers 5 years of UV stability. The 1.2mm thick open crisscross steel lattice shelf sits 380mm above the floor, and zinc-plated steel bolts secure all connections. Non-marking 10mm plastic glides line the leg bases to protect floor surfaces, with an overall table height of 750mm delivering 670mm of knee clearance. Functionally, the smooth, level mosaic surface supports full place settings, drinkware, and serving dishes with a 75kg distributed static load capacity, while the lower lattice shelf holds small dining items, napkins, and table accessories with a 30kg distributed load capacity. The four splayed leg design anchors the central pedestal to prevent tipping, and the rain and UV resistant construction is engineered for uncovered patio use. Partial on-site assembly is required, with included hardware, and assembly takes 40 minutes per set. This table is well suited for residential patios, open decks, and balconies for casual family meals, as well as boutique café and bistro al fresco seating areas. It pairs seamlessly with standard-height patio dining chairs, and complements wicker, metal, and wood outdoor furniture collections. Use of a weather cover is recommended during off-season wet or cold periods. For procurement, note that units ship across multiple cartons per set, with a total packaged gross weight of 100kg and total packaging volume of 0.65 cubic meters per set. The table accommodates four guests, making it ideal for small-scale outdoor dining configurations.
