PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	800 × 800 × 750 mm
Overall set footprint	1650 x 1650 mm
Table glass top thickness	5 mm
Table central leg diameter	50 mm
Table circular footrest diameter	520 mm
Chair seat dimensions	480 x 450 mm
Chair seat height	450 mm
Chair armrest height	635 mm
Chair backrest height	440 mm
Seat cushion thickness	50 mm
Chair leg tube diameter	25 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total set net weight	32 kg
Table static load capacity	91 kg
Seating capacity	4 adults
UV fade resistance rating	1000 hours
Frame rust resistance	500 hours salt spray
Warranty period	3 years
Color option count	5
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Frame construction	Powder-coated aluminum, faux bamboo finish
Seating and back weave	UV-stabilized PE rattan, blue-white dot pattern
Tabletop	Clear tempered safety glass
Table base	Powder-coated aluminum central column
Joint bindings	Synthetic woven cord, white finish
Chair foot glides	Hard nylon non-marking glides
Cushion fabric	230gsm polyester, water-repellent
Cushion fill	High-resilience polyurethane foam
Hardware	Stainless steel 304 fasteners
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Stacking storage	Chairs stack 4 units high
Table assembly	Knock-down central leg attachment
Cushion removal	Slip-on cushion covers
Surface drainage	Perforated woven seat design
Floor protection	Non-marking foot glides
Weather resistance	Waterproof, UV-resistant materials
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential patio use	Small backyards, balconies and garden patios
Commercial cafe seating	Sidewalk cafes, bistro patios and rooftop bars
Poolside dining	Chlorine and splash-resistant materials
Sunroom/conservatory use	Lightweight, classic French bistro styling
Small balcony dining	800mm table diameter fits tight urban outdoor spaces

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017	Outdoor furniture safety requirements for domestic use
EN 581-2:2019	Mechanical safety requirements for outdoor seating
EN 12520:2015	Furniture strength, durability and safety for domestic seating

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for metal furniture
GB 28007-2011	Safety requirements for children's furniture if used in public family spaces
GB/T 17657-2013	Test methods for surface finishes

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for metal furniture；
2. GB 28007-2011：Safety requirements for children's furniture if used in public family spaces；
3. GB/T 17657-2013：Test methods for surface finishes；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OD-BISTRO-4S-RND-WB-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OD-BISTRO-4S-RND-WB-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OD-BISTRO-4S-RND-WB-01打开导出工具

页面快速操作

发布采购询价

产品描述

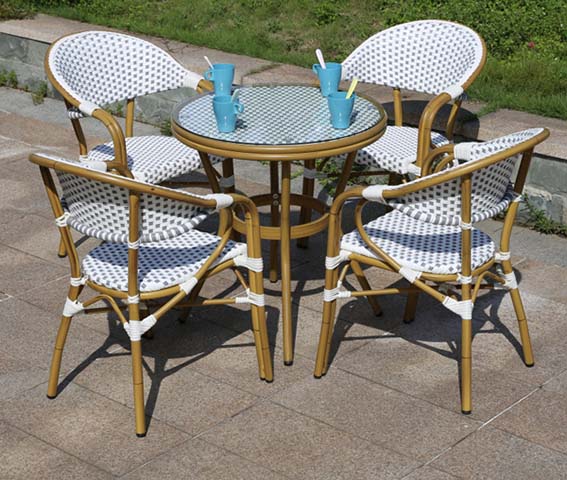

This 4-seat round glass-top PE rattan outdoor bistro dining set, model OD-BISTRO-4S-RND-WB-01, is an unbranded outdoor bistro patio dining set that balances classic French bistro styling with durable outdoor performance. Arranged in a symmetric circular layout, the set occupies a 1650 x 1650 mm footprint, anchored by an 800 mm diameter, 750 mm tall table surrounded by four matching chairs to create an intimate, cohesive seating group. The design features a blue-white dot woven pattern on seating and back surfaces, paired with a faux bamboo finish on structural frames for a light, timeless visual appeal, and it is offered in 5 color options to match varied exterior design palettes. Constructed for long-term outdoor use, the set uses UV-stabilized PE rattan for woven chair components, set atop powder-coated aluminum frames with a faux bamboo finish. The table features a 5 mm thick clear tempered safety glass top, supported by a powder-coated aluminum central column with a 50 mm diameter and a 520 mm diameter circular footrest. Joints are secured with white synthetic woven cord, while 304 stainless steel fasteners connect all structural elements. Chairs include hard nylon non-marking foot glides, water-repellent 230gsm polyester slip-on cushion covers filled with high-resilience polyurethane foam, and perforated woven seats for surface drainage. The set holds a 1000-hour UV fade resistance rating, 500 hours of salt spray rust resistance for frames, and carries a 3-year warranty. Functional design supports flexible, low-effort use: up to four chairs stack vertically for compact storage, the table uses knock-down central leg attachment for simplified transport, and removable cushion covers simplify routine cleaning. The table supports a 91 kg static load, and each chair is sized to comfortably seat one adult, for a total capacity of four adults, with a 450 mm seat height aligned to standard dining comfort. This set fits a broad range of spaces: it works for residential small backyards, balconies, garden patios, and sunrooms, as its 800 mm table diameter fits tight urban outdoor spaces. It also suits commercial settings including sidewalk cafes, bistro patios and rooftop bars, and is suitable for poolside dining due to its chlorine and splash-resistant materials. Procurement teams should note that the set ships in two cartons per unit, with a packaged gross weight of 120 kg and 0.8 m³ packaging volume, requiring 40 minutes of assembly per set. The total net weight of the fully assembled set is 32 kg, so teams should plan for appropriate receiving, storage, and installation labor to match project timelines.

4-Seat Round Glass-Top PE Rattan Outdoor Bistro Dining Set Specifications
