All-Weather Woven Outdoor Patio Conversation Sofa Set with Oval Coffee Table Specifications

OUT-CONV-4PC-WVN-001

代码:MSXZLDV1
获取供应商报价
2026-08-14 16:32人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OUT-CONV-4PC-WVN-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall set footprint (arranged cluster)2750 x 2400 mm
Three-seat sofa exterior dimensions2100 x 810 x 760 mm
Two-seat loveseat exterior dimensions1620 x 810 x 760 mm
Single lounge armchair exterior dimensions790 x 810 x 760 mm
Oval coffee table exterior dimensions1200 x 700 x 450 mm
Seat height with cushion installed430 mm
Seat height without cushion280 mm
Seat cushion thickness150 mm
Back cushion thickness120 mm
Seat usable depth650 mm
Backrest height from seat surface380 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total seating capacity6 people
Per-seat static load capacity160 kg
Set total net weight145 kg
Frame weather durability ratingUV-resistant, rust-proof for permanent covered outdoor use
Cushion fabric water repellency ratingResists light rain, requires cover for prolonged exposure
Standard structural warranty3 years
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference130 kg/seat
Upholstery Seam Pitch4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Structural frame1.5 mm thick powder-coated steel tube
Seating outer woven surfaceUV-stabilized PE synthetic rattan, hand-woven perforated pattern
Seat cushion core38 kg/m³ high-density polyurethane outdoor foam
Cushion upholstery fabric280 g/m² solution-dyed polyester outdoor fabric
Cushion cover constructionZippered, removable for machine washing
Coffee table top18 mm thick walnut-look wood-composite weatherproof board
Coffee table leg basePowder-coated black steel sled frame with cross-brace support
Armrest constructionIntegral woven rattan wrapped over metal frame, padded top edge
Leveling feetNon-marking plastic adjustable feet for uneven deck surfaces
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating layoutFace-to-face clustered orientation centered on coffee table for group conversation
Cushion installationRemovable cushions with tie-down fasteners to prevent slipping on frame
Leveling adjustmentEach leg includes 15 mm height adjustment to adapt to uneven outdoor flooring
Surface maintenanceWoven rattan and table top wipe clean with damp cloth, no special treatment required
Storage recommendationCompatible with standard outdoor furniture covers for off-season protection
Assembly requirementKnock-down assembly with bolted leg attachments, no special tools required
Floor protectionPlastic foot caps prevent scratching on wood, tile or stone terrace surfaces
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Covered coastal terraceSuitable for seaside resort patios with salt-air resistant construction
Residential backyard patioIdeal for family outdoor leisure and small group gatherings
Hotel poolside loungeAppropriate for hospitality pool seating areas with all-weather durability
Rooftop outdoor loungeWorks for elevated urban rooftop spaces with stable sled base design
Open-air café seatingSuitable for light commercial outdoor café and bistro seating arrangements
Balcony leisure areaFits large covered residential balconies for relaxed outdoor seating
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Outdoor furniture seating and tables safety requirements, general use
EN 581-2:2019Outdoor seating mechanical safety and strength test requirements
EN 581-3:2017Outdoor tables mechanical safety and strength test requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable to frame structural strength
GB/T 28007-2011Technical requirements for outdoor leisure furniture, applicable to weather durability
GB 18584-2001Indoor decorating materials limit of harmful substances, applicable to cushion foam
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to frame structural strength;
2. GB/T 28007-2011:Technical requirements for outdoor leisure furniture, applicable to weather durability;
3. GB 18584-2001:Indoor decorating materials limit of harmful substances, applicable to cushion foam;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OUT-CONV-4PC-WVN-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OUT-CONV-4PC-WVN-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OUT-CONV-4PC-WVN-001打开导出工具

页面快速操作

发布采购询价

产品描述

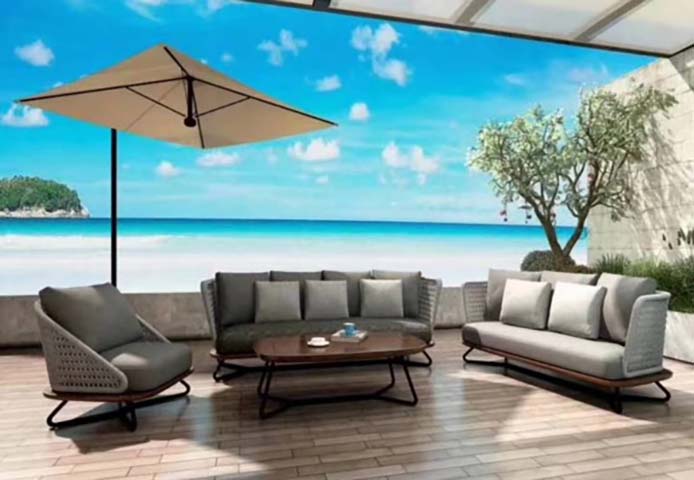

The JINQIU All-Weather Woven Outdoor Patio Conversation Sofa Set with Oval Coffee Table, model OUT-CONV-4PC-WVN-001, is a cohesive four-piece seating collection designed for relaxed group interaction across outdoor settings. The set is arranged in a face-to-face clustered layout centered on the oval coffee table, with consistent seat back heights across all seating modules for a unified, streamlined visual profile, paired with open woven surfaces that carry a light, casual aesthetic. It includes one three-seat sofa, one two-seat loveseat, one single lounge armchair, and the oval coffee table, with a total clustered footprint sized to accommodate comfortable movement around the seating group. The structural frame is built from powder-coated steel tube, wrapped in hand-woven UV-stabilized PE synthetic rattan in a perforated pattern for a textured, breathable surface. Armrests are integrally formed from the same woven rattan over the metal frame, finished with a padded top edge for comfort. The coffee table features a walnut-look wood-composite weatherproof top, supported by a powder-coated black steel sled frame with cross-brace reinforcement for stability. All seating pieces come with removable cushions fitted with tie-down fasteners to prevent shifting; cushion cores use high-density polyurethane outdoor foam, upholstered in solution-dyed polyester fabric that repels light rain, with zippered covers that are removable for machine washing. Non-marking plastic adjustable leveling feet are fitted to every leg, offering height adjustment to adapt to uneven outdoor flooring, while plastic foot caps prevent scratches on wood, tile, or stone surfaces. Woven surfaces and the table top wipe clean easily with a damp cloth, requiring no specialized maintenance, and the set is compatible with standard outdoor furniture covers for off-season storage. The set supports up to six people total, with frame properties that deliver UV resistance and rust protection for permanent covered outdoor use. It is suited for a wide range of spaces, including covered coastal resort terraces with salt-air exposure, residential backyards for family leisure and small gatherings, hotel poolside lounge zones, elevated urban rooftop lounges, light commercial open-air café seating, and large covered residential balconies. Procurement teams and residential buyers should note the set ships in two cartons, requires knock-down bolted assembly with no special tools, and includes a standard 3-year structural warranty. For prolonged exposure to heavy or extended rain, additional protective covers are recommended for the cushions, and the sled base design offers reliable stability on hard, level outdoor surfaces.
