6-Seater Black Slatted Outdoor Patio Dining Set Specifications

ODS-6S-BLK-SLT-01

代码:TGQPEEV1
获取供应商报价
2026-08-14 17:28人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ODS-6S-BLK-SLT-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall set footprint1674 x 820 x 754 mm
Dining table dimensions1659 x 829 x 754 mm
Table slat width70 mm
Table slat gap for drainage8 mm
Table leg profile60 x 60 mm square
Center umbrella hole diameter66 mm
Armchair overall dimensions600 x 620 x 880 mm
Armchair seat height450 mm
Armchair seat depth480 mm
Armchair armrest height above seat200 mm
Armchair slat thickness22 mm
Chair leg profile30 x 30 mm square
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Tabletop static load capacity150 kg
Set total net weight72 kg
Seating capacity6 adults
Finish UV fade resistance3000 hours
Surface stain resistance ratingGrade 5
Hardware corrosion resistance1000 hours salt spray
Limited warranty period2 years
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
Recommended Procurement WarrantyStructure 5 years; hardware 3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Table and chair frame1.2mm thick powder-coated steel tube
Tabletop slats22mm thick weather-resistant HDPE/WPC composite
Chair seat and back slats20mm thick HDPE/WPC composite slats
Surface finishMatte black polyester powder coating
Fasteners and hardware304 stainless steel bolts, nuts and caps
Chair armrestsIntegrated steel frame with matching composite slat top
Foot padsNon-slip adjustable PE plastic foot caps
Surface textureFine embossed matte texture
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Tabletop drainageEven slat gaps allow rainwater runoff
Center umbrella openingPre-drilled center hole accepts standard patio umbrellas
Fixed chair structureWelded steel frame with fixed 105° back angle
Stackable chair designChairs stack vertically for off-season storage
Surface maintenanceSmooth non-porous slats wipe clean with damp cloth
Leg level adjustmentAdjustable foot pads compensate for uneven deck surfaces
Weather performanceFull set is waterproof, rustproof and UV resistant
Fastener installationPre-drilled holes with included hex wrench assembly
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential patio/deck useSuitable for backyard, balcony or terrace outdoor dining for 6 people
Commercial outdoor seatingApplicable for cafe, restaurant, or bistro sidewalk outdoor dining areas
All-weather placementDesigned for year-round exposed outdoor use without covered storage
Recommended seating layout2 chairs placed along each long table side, 1 chair at each short end
Compatible accessoryPair with standard patio umbrella for sun shading through center table hole
Surface compatibilitySafe for use on composite decking, stone tile or concrete patio surfaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Outdoor furniture safety requirements for seating and tables, general use
EN 581-2:2019Mechanical safety requirements for outdoor seating, applicable to chair load rating
EN 581-3:2019Mechanical safety requirements for outdoor tables, applicable to table stability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to WPC components
GB/T 24543-2009Safety requirements for outdoor leisure furniture, applicable to structural stability
GB/T 1732-2020Paint film impact resistance test, applicable to powder coated steel surfaces
GB/T 1766-2008Paint and varnish weathering rating, applicable to outdoor finish durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to WPC components;
2. GB/T 24543-2009:Safety requirements for outdoor leisure furniture, applicable to structural stability;
3. GB/T 1732-2020:Paint film impact resistance test, applicable to powder coated steel surfaces;
4. GB/T 1766-2008:Paint and varnish weathering rating, applicable to outdoor finish durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ODS-6S-BLK-SLT-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ODS-6S-BLK-SLT-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ODS-6S-BLK-SLT-01打开导出工具

页面快速操作

发布采购询价

产品描述

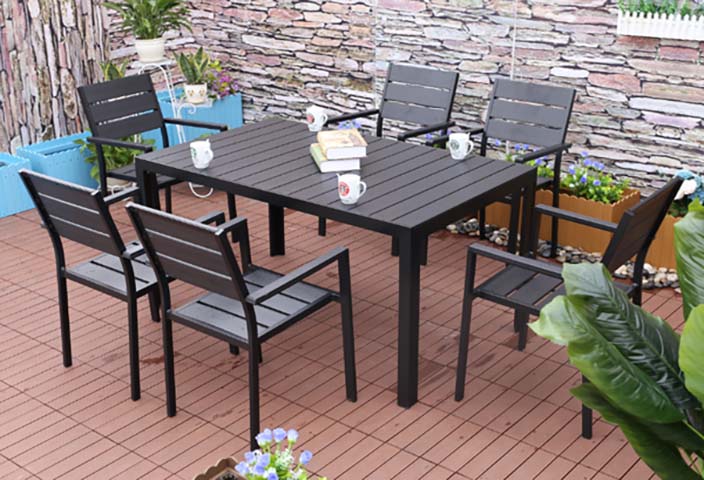

The JINQIU 6-Seater Black Slatted Outdoor Patio Dining Set, model ODS-6S-BLK-SLT-01, is purpose-built for year-round exposed outdoor dining use, delivered with a coordinated, streamlined matte black aesthetic that blends seamlessly with a range of exterior design palettes. The set follows a classic dining-height layout, arranged to seat six adults with two armchairs positioned along each long edge of the rectangular table, and one armchair at each short end. Slim, uniform slats form both the tabletop and chair seats and backs, paired with square-profile table legs and gently angled fixed chair backs to create a clean, structured visual profile that feels understated and functional. Its construction balances durable, weather-ready materials for long-term exterior performance. The table and chair frames are fabricated from powder-coated steel tube, with tabletop slats cut from thick weather-resistant HDPE/WPC composite, and slightly slimmer composite slats forming chair seats, backs, and the top surface of integrated steel armrests. All metal surfaces carry a fine embossed matte black polyester powder coating, while fasteners use 304 stainless steel hardware to resist corrosion, and non-slip adjustable PE plastic foot caps cap every leg. Even gaps between table slats enable consistent rainwater runoff to prevent standing water, and a pre-drilled center hole in the table accommodates standard patio umbrellas for customizable sun shading. Each chair uses a welded fixed frame with a set reclined back angle for consistent seating support, and chairs stack vertically to reduce required footprint during off-season storage. The non-porous slat surfaces wipe clean easily with a damp cloth for simple upkeep, and adjustable foot pads compensate for uneven surfaces across deck, stone tile, or concrete installation sites. The set is tested to support reliable tabletop static load, resist UV fading and surface staining, and hold up to extended moisture and salt exposure without rust or water damage, backed by a 2-year limited warranty. This set fits equally well in residential settings including backyards, balconies, and terraces, and commercial outdoor seating zones such as cafe sidewalks, restaurant patios, and bistro outdoor dining areas, with no requirement for covered storage between uses. Procurement teams should note the set ships across two cartons, requires on-site assembly, and works with standard patio umbrellas as a compatible add-on to meet guest or resident shading needs.
