基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 550 × 550 × 500 mm | |
|---|---|---|
| Tabletop diameter | 550 mm | |
| Tabletop thickness | 10 mm | |
| Upper drum base diameter | 450 mm | |
| Lower flared base diameter | 480 mm | |
| Upper drum height | 220 mm | |
| Lower base height | 230 mm | |
| Floor contact pad diameter | 480 mm | |
| Under-table clearance | 0 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Net product weight | 12 kg | |
|---|---|---|
| Static tabletop load capacity | 40 kg | |
| Tip resistance load | 15 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Tempered glass impact resistance | 1020 mm drop | |
| Warranty period | 1 year | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准

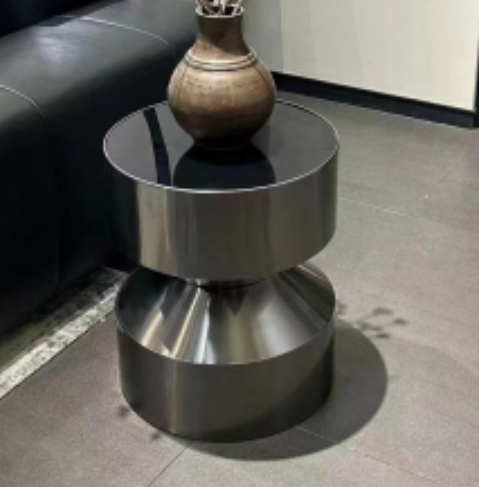

| Tabletop | 10mm black tempered glass with polished smooth edge | |
|---|---|---|
| Upper pedestal drum | 1.5mm thick brushed 304 stainless steel, satin finish | |
| Lower flared pedestal | 1.5mm thick brushed 304 stainless steel, tapered conical section | |
| Internal support structure | 1.2mm thick steel internal frame connecting top to base | |
| Floor protection pads | 5mm thick non-slip EVA rubber pads at base bottom | |
| Metal surface finish | Brushed satin stainless steel with clear anti-fingerprint lacquer | |
| Joint construction | TIG welded seamless joints between base sections | |
| Glass edge treatment | Flat polished perimeter edge, no sharp corners | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Assembly requirement | Fully assembled delivery, no on-site hardware installation required | |
|---|---|---|
| Floor leveling | Non-adjustable fixed base with pre-applied EVA grip pads | |
| Surface use | Smooth non-porous glass and metal surfaces, wipe-clean with damp cloth | |
| Mobility | Lightweight freestanding design, repositionable by lifting without disassembly | |
| Storage integration | No built-in shelves, drawers, or cable management features | |
| Placement orientation | Symmetric round design, no specific front/back orientation for flexible arrangement | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Living room sofa side placement | Position adjacent to sofas or armchairs to hold drinks, remote controls, and decorative objects | |
|---|---|---|
| Bedroom nightstand use | Place beside beds as a compact nightstand for lamps, phones, and bedtime items | |
| Lounge and reception area accent | Use in hotel lobbies, lounge areas, or office reception zones as a sculptural accent piece | |
| Small entryway hall table | Place in entryways to hold keys, mail, and small entry decor | |
| Balcony semi-outdoor use | Suitable for covered balconies with stainless steel corrosion-resistant base |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 12521:2015 | Strength, durability, and safety requirements for domestic furniture tables, applicable for structural load testing | |
|---|---|---|
| EN 14073-2:2004 | Office and domestic storage furniture safety, applicable for tip stability verification | |
| EN 1036:2007 | Safety requirements for glass in furniture, applicable for tempered glass tabletop compliance |
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden/metal furniture, applicable for dimensional and structural stability checks | |
|---|---|---|
| GB 15763.2-2005 | Safety requirements for tempered glass used in furniture, applicable for tabletop impact and breakage safety | |
| GB/T 4893.9-2013 | Surface abrasion resistance test for furniture finishes, applicable for metal base durability assessment |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden/metal furniture, applicable for dimensional and structural stability checks; 2. GB 15763.2-2005:Safety requirements for tempered glass used in furniture, applicable for tabletop impact and breakage safety; 3. GB/T 4893.9-2013:Surface abrasion resistance test for furniture finishes, applicable for metal base durability assessment; 最终交付参数、检测报告和验收标准以双方采购合同为准。
