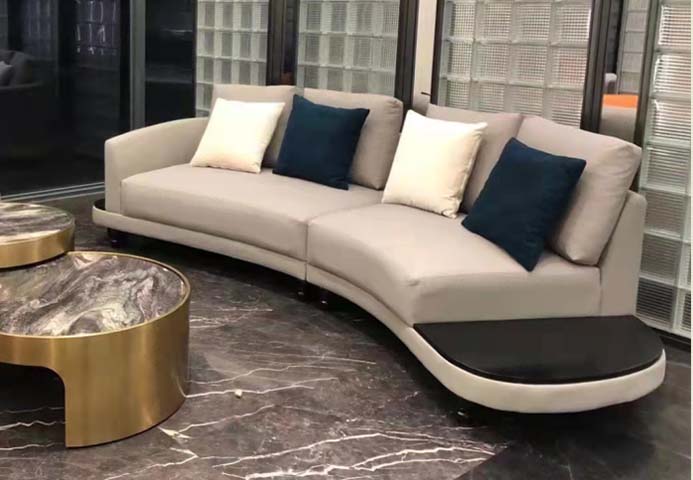

Beige Fabric Curved Modular Sectional Sofa with Integrated Black End Table Specifications

CURV-SEC-3400-BEI

代码:F5D1RQV1
获取供应商报价
2026-09-16 13:50人气: 3
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

CURV-SEC-3400-BEI

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (arc length x maximum depth x total height)3400 x 1650 x 880 mm
Seat height from floor to cushion top480 mm
Seat cushion thickness180 mm
Seat depth at deepest curved section700 mm
Back cushion height above seat surface400 mm
Integrated end table surface dimensions (arc length x width)800 x 600 mm
Support foot height50 mm
Throw pillow dimensions500 x 500 mm
Armrest height above seat surface200 mm
Clearance between sofa base and floor30 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity480 kg
Net product weight220 kg
Seating capacity4 people
Seat foam density45D
Fabric abrasion resistance50000 double rubs
Seat foam rebound rate65%
Product warranty period3 years
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference130 kg/seat
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Upholstery fabricSoft matte beige woven polyester blend fabric
Internal frameKiln-dried solid hardwood and 15mm thick plywood frame
Seat support structure8-gauge sinuous steel springs with 50mm elastic webbing
Cushion filling45D high-resilience polyurethane foam wrapped with 30mm down blend layer
Back cushion fillingHollow conjugated siliconized fiber fill
Support feetMatte black coated steel cylindrical feet
Integrated end table top18mm thick black matte engineered stone surface
End table edge trimMatching beige fabric wrapped upholstered trim
Seam stitchingHigh-tenacity polyester thread with 8 stitches per 30mm pitch
Modular connection hardwarePowder-coated steel interlocking brackets
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular configurationTwo interlocking curved seating modules with attached end table unit
Stationary designFixed non-reclining seating structure with no moving mechanism parts
Integrated accent table functionLevel black surface at chaise end for holding drinks, books or decor
Cushion maintenanceRemovable seat and back cushion covers with hidden zipper closures
Mobility assistanceFour small hidden casters at module corners for easier repositioning
Throw pillow configurationFour included decorative throw pillows (two cream, two navy)
Floor protectionFelt pads installed on base bottom to prevent scratch damage to hard flooring
Assembly requirementMinimal on-site assembly only requiring attachment of support feet and connection of modules
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living roomSuitable for open-plan modern living spaces 25㎡ or larger with minimum 4m wall width
High-end apartment loungeIdeal for luxury apartment reception areas as statement lounge seating
Executive office receptionAppropriate for informal executive lounge or visitor waiting areas with upscale aesthetic
Showroom displaySuitable for furniture showroom or design studio display as contemporary curved seating exhibit
Hotel VIP loungeApplicable for boutique hotel VIP guest lounge areas requiring comfortable statement seating
Open concept lounge spaceWorks as central seating anchor for open-plan lounge areas paired with round nesting coffee tables
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture - Strength, durability and safety for domestic seating, applicable to residential sofa performance testing
EN 1021-1:2014Furniture - Assessment of ignitability of upholstered furniture, cigarette ignition resistance standard
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood frame structural quality inspection
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applies to formaldehyde emission limits
GB/T 1952.1-2012General technical requirements for sofas, applicable to structural strength, durability and dimensional stability testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood frame structural quality inspection;
2. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applies to formaldehyde emission limits;
3. GB/T 1952.1-2012:General technical requirements for sofas, applicable to structural strength, durability and dimensional stability testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · CURV-SEC-3400-BEI

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · CURV-SEC-3400-BEI

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CURV-SEC-3400-BEI打开导出工具

页面快速操作

发布采购询价

产品描述

The Beige Fabric Curved Modular Sectional Sofa with Integrated Black End Table (model CURV-SEC-3400-BEI) is an unbranded stationary contemporary seating solution defined by its smooth arcing silhouette. Its layout comprises two interlocking curved seating modules paired with a built-in end table at the chaise end, creating a cohesive, flowing form anchored by matte black cylindrical steel support feet. The 800mm long integrated end table features an 18mm thick black matte engineered stone surface, edged with matching beige fabric-wrapped trim to harmonize with the upholstery. Four coordinating throw pillows—two cream, two navy—complete the refined visual profile. Built for lasting durability, the sofa’s frame combines kiln-dried solid hardwood and 15mm thick plywood, with a seat support structure of 8-gauge sinuous steel springs and 50mm elastic webbing. Upholstered in soft matte beige woven polyester blend fabric tested to 50000 double rubs for abrasion resistance, the unit uses high-tenacity polyester thread stitched at 8 stitches per 30mm pitch for secure seams. Seat cushions hold 45D high-resilience polyurethane foam wrapped in a 30mm down blend layer, with a 65% rebound rate, while back cushions use plush hollow conjugated siliconized fiber fill. Four hidden casters at module corners enable easy repositioning, and felt pads on the base prevent hard floor scratches. The sofa seats four people with a 480kg total static load capacity, with seat height set at 480mm and a maximum curved seat depth of 700mm. The level integrated end table holds drinks, books, or decor, and removable seat and back cushion covers with hidden zippers simplify routine maintenance. This piece suits open-plan residential living rooms of 25㎡ or larger with a minimum 4m wall width, high-end apartment lounges, executive office reception areas, boutique hotel VIP lounges, furniture showrooms, and open-concept lounge spaces when paired with round nesting coffee tables. For procurement, note the unit ships in two cartons, requires 40 minutes of assembly per set, carries a 3-year product warranty, and has a net weight of 220kg. Confirm space dimensions align with required clearances before installation to accommodate the curved footprint.
