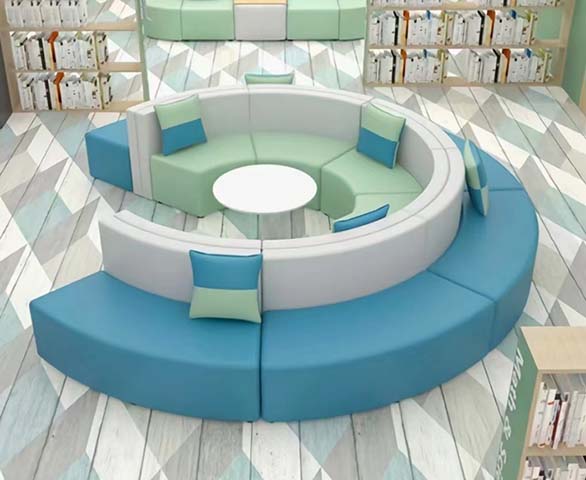

商品供应商Modular Curved Circular Lounge Seating Set with Center Table,Fabric
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Finished Seat Cushion Thickness | 90 mm | |
|---|---|---|
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Seating capacity | 10 users | |
|---|---|---|
| Total set weight | 280 kg | |
| Single seat static load capacity | 150 kg | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Foam density (seat cushion) | 40 kg/m³ | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg | |
| Caster Rolling Durability Reference | Acceptance target 30000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat internal frame | Solid pine wood frame, 30mm thick members | |
|---|---|---|
| Seat cushion padding | High-resilience polyurethane foam, 120mm thick, 40kg/m³ density | |
| Backrest padding | Medium-density polyurethane foam, 80mm thick, 30kg/m³ density | |
| Upholstery fabric | Polyester woven fabric, 0.8mm thick, stain-resistant finish | |
| Center table top | 18mm thick MDF with matte white thermofoil laminate | |
| Center table base | Powder-coated steel column base, 100mm diameter | |
| Module connecting hardware | Heavy-duty steel connection brackets | |
| Throw pillow covers | Matching polyester fabric with hidden zipper closure | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Modular configuration | Interlocking wedge-shaped units that can be re-arranged into curved or circular layouts | |
|---|---|---|
| Seating access gap | 600mm wide open entry gap on one side of the outer ring | |
| Two-tier seating arrangement | Dual concentric curved seating rings with inner ring oriented to face outward and outer ring oriented to face inward | |
| Backrest support | Continuous upholstered backrest along all seating positions to provide upright back support | |
| Module connection | Sliding steel bracket connectors between adjacent units to prevent shifting during use | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Largest carton dimensions | 900 x 700 x 500 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Recommended Matching Desk Size | 2.4 m executive desk | |
|---|---|---|
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 | Strength, durability and safety requirements for non-domestic seating, applicable for commercial public space use | |
|---|---|---|
| EN 13722:2004 | Test methods for assessment of upholstery furniture static load and fatigue performance |
美国及加拿大家具标准
| ANSI/BIFMA X5.4-2020 | Standard for lounge seating, specifying durability and load testing requirements for public areas |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame and table components | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fabric upholstery furniture, applicable for procurement acceptance |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to internal frame and table components; 2. GB 20400-2006:Limit of harmful substances in leather and fabric upholstery furniture, applicable for procurement acceptance; 最终交付参数、检测报告和验收标准以双方采购合同为准。
