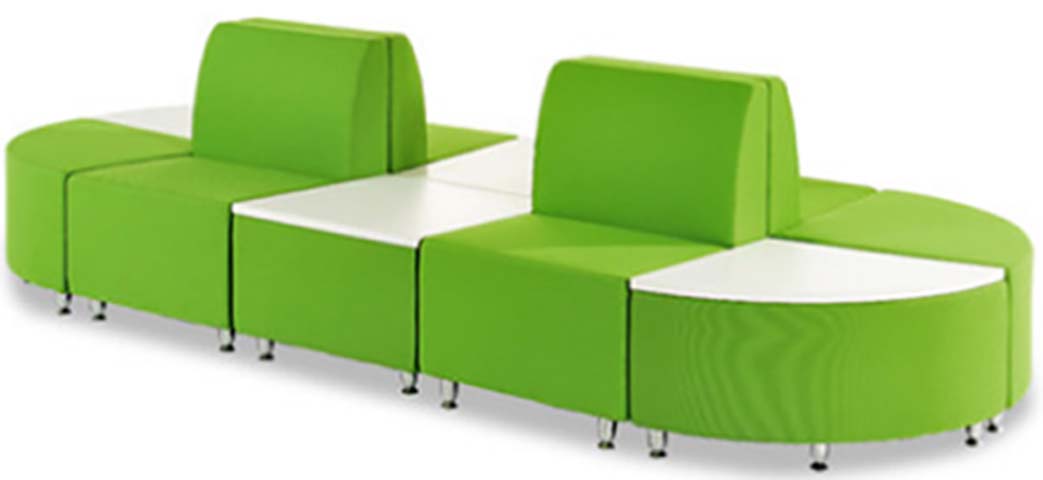

商品供应商Curved Modular Lounge Seating with Integrated Table Tops,Fabric
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall assembled dimensions | 4200 x 1200 x 900 mm | |
|---|---|---|
| Seat unit width | 700 mm | |
| Seat depth | 600 mm | |
| Seat height | 450 mm | |
| Backrest height above seat | 450 mm | |
| Backrest thickness | 180 mm | |
| Integrated table top width | 700 mm | |
| Curved end table top radius | 600 mm | |
| Table top height | 650 mm | |
| Leg height | 120 mm | |
| Unit module count | 8 modules | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Seat static load capacity | 150 kg per seat unit | |
|---|---|---|
| Total system weight | 120 kg | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Seat foam density | 40 kg/m³ | |
| Backrest foam density | 30 kg/m³ | |
| Total set net weight | 120 kg | |
| Upholstery fabric abrasion resistance | 50000 Martindale cycles | |
| Upholstery seam strength | 200 N per 50 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat and backrest upholstery | Woven polyester fabric in bright green | |
|---|---|---|
| Internal seat frame | Plywood and solid wood composite frame | |
| Seat padding | High-resilience polyurethane foam | |
| Backrest padding | Medium-density polyurethane foam | |
| Table tops | White high-pressure laminate (HPL) on particle board substrate | |
| Support legs | Chrome-plated steel tubular legs with black plastic floor glides | |
| Module connectors | Plastic or metal interlocking fasteners | |
| Internal seat and back frame | 15 mm thick plywood and solid wood composite frame with glued and stapled joint construction | |
| Seat cushion padding | High-resilience polyurethane foam with 40 kg/m³ density, wrapped in non-woven fabric liner | |
| Integrated table tops | 1 mm thick white high-pressure laminate (HPL) face bonded to 25 mm thick particle board substrate with PVC edge banding | |
| Module support legs | Chrome-plated carbon steel tubular legs with 30 mm outer diameter, fitted with black polyethylene floor glides | |
| Module connection hardware | Nylon and zinc-plated steel interlocking buckle fasteners |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Modular reconfiguration | Units can be rearranged into multiple layouts including straight rows, S-curves, and partial circles | |
|---|---|---|
| Integrated work surfaces | Built-in table units placed between seat modules provide space for laptops, documents, and beverages | |
| Floor protection | Black plastic glides on each leg prevent scratching of hard floor surfaces and allow minor leveling | |
| Back-to-back seating option | Double-sided backrest units support seating on both sides in open-plan spaces | |
| Contract-grade durability | Constructed for high-traffic commercial environments with reinforced frame and abrasion-resistant upholstery | |
| Tool-free assembly | Modules connect via interlocking hardware without required on-site tools | |
| Modular layout reconfiguration | Units connect via interlocking fasteners to form multiple layouts including straight rows, S-curves, partial circles, and standalone islands | |
| Integrated casual work surfaces | Fixed-height table units installed between seat modules provide flat surfaces for laptops, documents, and beverage containers | |
| Double-sided seating support | Central backrest modules have padded upholstery on both front and rear faces to accommodate back-to-back seating arrangements | |
| Hard floor protection and minor leveling | 20 mm diameter polyethylene glides fixed to each leg bottom reduce floor scratching and allow ±2 mm of vertical adjustment on uneven floors | |
| Curved edge safety design | All end modules and table units have rounded curved edges with minimum 300 mm radius to eliminate sharp corners in high-traffic public spaces | |
| Tool-free module assembly | Pre-installed interlocking buckle hardware allows on-site module connection without specialized tools |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Packaging configuration | 8 individual cartons, one per module | |
|---|---|---|
| Total gross weight | 140 kg | |
| Total shipment volume | 3.6 CBM | |
| Total gross weight of full set | 140 kg | |
| On-site assembly time | 60 minutes | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
推荐空间 / 目标用户 / 使用方式
| Office reception and waiting areas | Suitable for corporate lobbies and visitor waiting zones, providing casual seating with integrated work surfaces for short stays | |
|---|---|---|
| Open-plan office breakout zones | Ideal for informal team discussions and impromptu meetings in flexible work environments | |
| Educational facility common areas | Appropriate for university libraries, student lounges, and study commons with mixed seating and work requirements | |
| Public building waiting rooms | Suitable for healthcare clinics, government service halls, and transit station passenger areas | |
| Co-working space lounge areas | Fits flexible co-working layouts that alternate between relaxation, focused work, and group interaction | |
| Corporate office reception and waiting areas | Suitable for company lobbies and visitor waiting zones, providing casual seating with integrated work surfaces for short stays of 30 minutes | |
| Exhibition and event venue rest zones | Suitable for temporary rest areas in trade shows, museums, and event halls | |
| Recommended Matching Desk Size | 2.4 m executive desk |
欧洲市场准入与化学品要求
| Furniture safety - upholstered seating | EN 1728:2012 | |
|---|---|---|
| Flammability of upholstered furniture | EN 1021:2006 | |
| Strength, durability and stability of seating furniture | EN 1728:2012 | |
| Ignition resistance of upholstered furniture - cigarette test | EN 1021:2006 |
美国及加拿大家具标准
| Seating durability and stability | ANSI/BIFMA X2020 | |
|---|---|---|
| Lounge seating performance standard | ANSI/BIFMA X2020 |
适用于中国市场项目的标准
| Upholstered furniture flammability | GB 20286 | |
|---|---|---|
| Formaldehyde emission for wood-based panels | GB 18580 | |
| Upholstered furniture flammability for public places | GB 20286 | |
| Formaldehyde emission limit for wood-based panels | GB 18580 |
本产品须满足以下技术参数要求: 1. Upholstered furniture flammability:GB 20286; 2. Formaldehyde emission for wood-based panels:GB 18580; 3. Upholstered furniture flammability for public places:GB 20286; 4. Formaldehyde emission limit for wood-based panels:GB 18580; 最终交付参数、检测报告和验收标准以双方采购合同为准。
