PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	3700 × 1350 × 770 mm
Overall assembled dimensions	3700 x 1350 x 770 mm
Seat height	450 mm
Seat depth	500 mm
Low backrest height	320 mm
Individual seating module width	800 mm
Per-segment curved module depth	800 mm
Accent end panel thickness	50 mm
Seat cushion thickness	100 mm
Visible joint gap between modules	5 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total seating capacity	6 people
Per-seat static load capacity	150 kg
Total product weight	280 kg
Backrest static load rating	75 kg
Recommended continuous occupancy duration	45 minutes
Foam density (seat cushion)	45 kg/m³
Foam density (backrest)	35 kg/m³
Seam stitch pitch	8 stitches per 30mm
Structural warranty period	3 years
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Inner support frame	Solid pine + 15mm beech plywood skeleton
Seat core padding	45kg/m³ high-resilience polyurethane foam
Backrest padding	35kg/m³ polyurethane foam
Seating upholstery	Stain-resistant polyester woven fabric
Accent outer/end panels	Matte peach/beige lacquered MDF panel
Module connection hardware	Zinc-plated steel locking brackets
Base floor contact pads	10mm thick non-slip mute rubber feet
Upholstery surface treatment	Anti-fouling, anti-bacterial fabric coating
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular assembly system	Curved segments splice via steel brackets to form continuous S-layout
Backrest configuration	Asymmetrical low backrest along inner curve for lumbar support
Accent seating zones	Outer curved end panels provide backless flexible overflow seating
Floor leveling adjustment	Built-in rubber foot pads compensate for 5mm uneven floor surfaces
Color customization support	Upholstery and accent panel colors customizable per project requirement
No moving adjustment features	Fixed seat position, no recline, swivel or height adjustment mechanisms
Module reconfiguration support	Segments can be rearranged into alternate curved or linear layouts
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Commercial office lobbies	Multi-seat curved layout fits open reception spaces for visitor waiting
Shopping mall rest zones	Durable upholstery and flexible seating supports high pedestrian traffic
Exhibition hall public areas	Freeform S-shape creates visual interest for public circulation spaces
School and training center waiting areas	Smooth, easy-clean surfaces suit high-use public educational environments
Hospital outpatient waiting zones	Stain-resistant, anti-bacterial upholstery meets public space hygiene requirements
Hotel and airport lounge spaces	Low-profile design maintains open sightlines while providing casual seating

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013	Furniture – Strength, durability and safety for non-domestic seating
EN 1021-1:2014	Upholstered furniture ignitability test for smouldering cigarette sources

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2021	Standard for lounge and public seating safety and durability
ANSI/BIFMA M7.1-2020	Standard test method for VOC emissions from office furniture systems

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame structural safety
GB/T 35607-2017	Green product evaluation for furniture, applicable to formaldehyde and VOC limits
GB 20286-2006	Flame retardant requirements for public venue furniture, applicable to upholstery materials
GB/T 17657-2013	Test methods for surface physical and chemical properties of wood-based panels

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to frame structural safety；
2. GB/T 35607-2017：Green product evaluation for furniture, applicable to formaldehyde and VOC limits；
3. GB 20286-2006：Flame retardant requirements for public venue furniture, applicable to upholstery materials；
4. GB/T 17657-2013：Test methods for surface physical and chemical properties of wood-based panels；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · MWB-SC-06

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · MWB-SC-06

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MWB-SC-06打开导出工具

页面快速操作

发布采购询价

产品描述

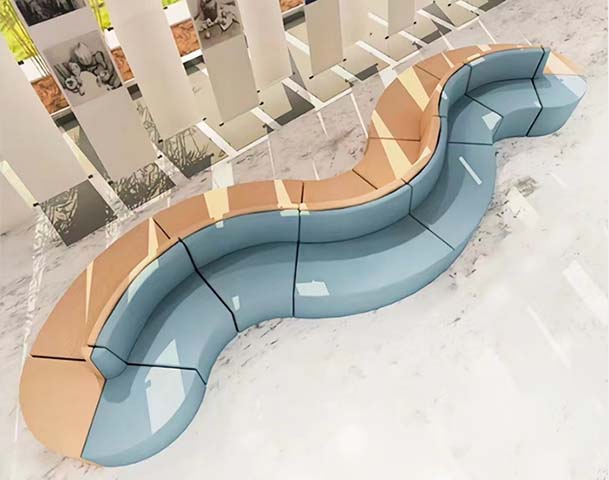

The Modular S-Curve Upholstered Public Waiting Bench (model MWB-SC-06, unbranded) is a segmented public seating solution designed with a distinctive two-tone finish combining light blue upholstered seating surfaces and matte peach/beige accent side panels. Its signature continuous S-curve layout is formed by interlocking curved segments, each fitted with a low, asymmetrical integrated backrest positioned along the inner curve to deliver targeted lumbar support. Armless by design, the bench features backless flexible overflow seating zones at its outer curved end panels, with a low-profile structure that preserves unobstructed sightlines across open spaces. Fully assembled, the bench measures 3700 x 1350 x 770 mm, with a 450 mm seat height, 500 mm seat depth, 320 mm low backrest height, 100 mm thick seat cushions, 50 mm thick accent end panels, and 800 mm wide individual seating modules, supporting a total capacity of 6 users.
Constructed for heavy public use, the bench’s inner support frame combines solid pine and 15mm beech plywood, reinforced by zinc-plated steel locking brackets at joints, with M6-M10 connectors providing a minimum of two fixing points per major joint. Seat cushions are padded with 45 kg/m³ high-resilience polyurethane foam, while backrests use 35 kg/m³ polyurethane foam, all upholstered in stain-resistant polyester woven fabric treated with an anti-fouling, anti-bacterial coating. Matte peach/beige lacquered MDF forms the accent end panels, and 10mm thick non-slip mute rubber feet at the base compensate for 5mm of uneven floor surface to maintain stable placement. Each seat supports 150 kg of static load, with a 75 kg static load rating for the backrest, and the design is optimized for a recommended continuous occupancy duration of 45 minutes. The modular system allows segments to be rearranged into alternate curved or linear layouts, with no moving adjustment mechanisms such as recline, swivel, or height adjustment for long-term durability. Upholstery and accent panel colors can be customized to match specific project requirements.
This bench is suited for a wide range of high-traffic public spaces, including commercial office lobbies where its curved layout fits open reception areas for visitor waiting, shopping mall rest zones that require durable, flexible seating for high pedestrian flow, exhibition hall public areas where its freeform S-shape adds visual interest along circulation routes, school and training center waiting areas with easy-clean surfaces for high-use educational environments, hospital outpatient waiting zones where its anti-bacterial, stain-resistant upholstery supports public hygiene needs, and hotel and airport lounge spaces where its low profile maintains open sightlines for casual, accessible seating.
For procurement, note that one set ships in 2 cartons with a packaged gross weight of 120 kg and total packaging volume of 0.8 m³, requiring 40 minutes of assembly time per set; the fully assembled product weighs 280 kg, so installation teams should plan for appropriate handling support. Color customization requests should be confirmed prior to order placement, and layout planning should account for the bench’s modular reconfiguration capability to adapt to future space adjustments.

Modular S-Curve Upholstered Public Waiting Bench Specifications
