PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	4200 × 2800 × 780 mm
Overall set footprint	4200 x 2800 x 780 mm
Single modular seat width	700 mm
Seat depth	600 mm
Seat height from floor	450 mm
Backrest height above seat	330 mm
Armrest height above seat	200 mm
Armrest width	120 mm
Metal leg height	120 mm
Square coffee table dimensions	800 x 800 x 450 mm
Side accent table dimensions	500 x 500 x 550 mm
Clear floor space under seats	100 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Seating capacity	7 people
Per-seat static load rating	150 kg
Total sofa set weight	210 kg
Coffee table static load capacity	50 kg
Foam compression set resistance	70% retention after 50000 cycles
Upholstery abrasion resistance	50000 double rubs
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat
Upholstery Seam Pitch	4 mm

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat and back upholstery	Woven polyester-blend fabric in olive green and black, upholstered over foam padding
Seat core padding	High-density polyurethane foam, 100 mm thick at cushion center
Backrest padding	Medium-density polyurethane foam, 80 mm thick, with fabric taut back construction
Internal frame	Engineered wood composite (particleboard or plywood) with solid wood blocking at stress points
Support base legs	Chrome-plated steel sled-style legs, rectangular tube profile, with plastic floor glides
Articulation joints between modules	Plastic or metal connecting brackets under seat deck for alignment and stability
Coffee table top	White smooth-finish engineered stone or high-pressure laminate on composite substrate
Coffee table base	Brushed or polished stainless steel cylindrical column with floor plate
Side table top	Dark tinted tempered glass with polished edge
Side table legs	Chrome-plated steel tubular legs, four per table, with floor glides
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular reconfiguration	Seven independent units (two arm end units, four armless seats, one corner) can be rearranged into U-shape, L-shape, or straight line layouts using under-seat connecting hardware
Fixed seat and back position	Non-reclining, fixed-angle backrest and stationary seat cushion designed for upright guest seating
Floor protection glides	Plastic glide pads fitted to each sled leg base to prevent floor scratching and allow minor position adjustment
Under-seat cleaning access	100 mm open clearance below the seat frame allows mop or vacuum access for commercial facility maintenance
Two-tone visual zoning	Alternating olive green and black upholstery visually divides seating zones and complements modern office interiors
Integrated side table placement	Compact glass-top side table fits between seat modules to hold laptops, drinks, or documents without occupying floor space outside the seating footprint
Cushion Service Configuration	Recommended 2 removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Total number of packages	9 packages
Standard seat module carton dimensions	850 x 750 x 650 mm
Total gross weight of full set	260 kg
Total shipment volume (CBM)	5.2 CBM
Assembly time per set	90 minutes
20-foot GP container loading quantity	8 sets
Packaging type	Corrugated carton with foam edge protectors and polyethylene wrap per module
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Corporate office reception areas	Ideal for office lobbies and visitor waiting zones, providing structured group seating with integrated table surfaces for guest use
Co-working lounge and breakout spaces	Suitable for informal team discussions, casual meetings, and touchdown work, with side tables for laptops and notebooks
Hotel and serviced apartment lounges	Appropriate for lobby seating and pre-function areas, with modern two-tone upholstery that complements contemporary interior design schemes
Exhibition and showroom visitor areas	Works as display or rest seating in trade show booths and product showrooms due to clean lines and modular flexibility
University and library study lounges	Suitable for group study and collaborative work in academic facilities, with central table space for books and devices

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Seat strength and durability	EN 16139:2013 Furniture - Chairs - Strength, durability and stability
Flame retardancy of upholstered furniture	EN 1021:2014 Furniture - Assessment of the ignitability of upholstered furniture - Part 1: Ignition source: Smouldering cigarette

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Seating durability for commercial use	ANSI/BIFMA X2017 General Purpose Office Chairs
Furniture formaldehyde emissions	ANSI/BIFMA X2011 Standard for Formaldehyde and VOC Emissions from Office Furniture Systems and Seating

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Seating structural strength	GB/T 3324 General technical requirements for wooden furniture
Upholstered furniture safety	GB 20286 Fire-retardant products and components in public places - Requirement of flame retardant performance and labels
Formaldehyde emission	GB 18580 Formaldehyde emission limits for interior decoration and finishing materials - Wood-based panels and products

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Seating structural strength：GB/T 3324 General technical requirements for wooden furniture；
2. Upholstered furniture safety：GB 20286 Fire-retardant products and components in public places - Requirement of flame retardant performance and labels；
3. Formaldehyde emission：GB 18580 Formaldehyde emission limits for interior decoration and finishing materials - Wood-based panels and products；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · MOD-U-SOFA-07

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · MOD-U-SOFA-07

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MOD-U-SOFA-07打开导出工具

页面快速操作

发布采购询价

产品描述

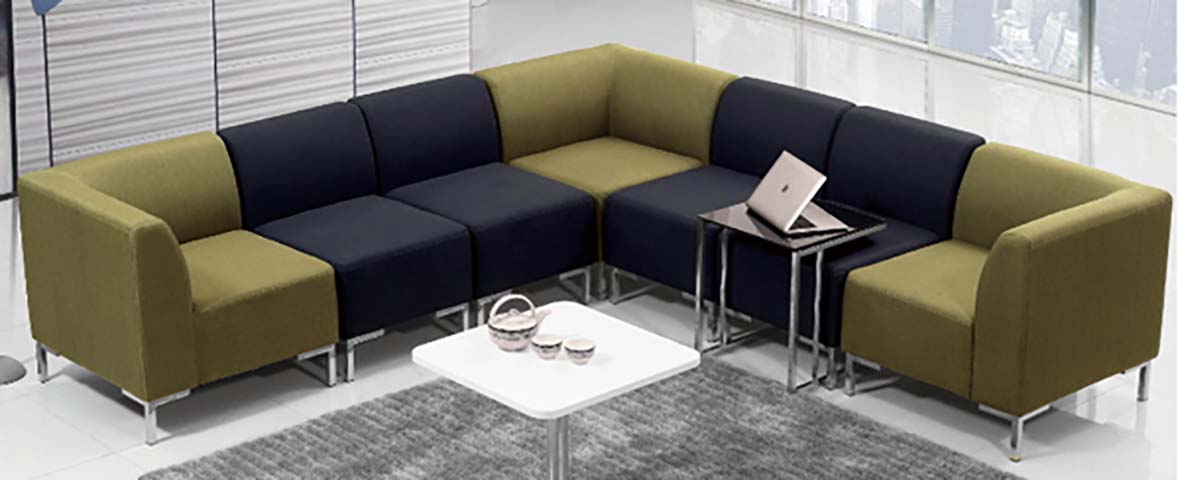

This unbranded modular U-shaped office reception sofa set, model MOD-U-SOFA-07, delivers a polished, functional seating solution tailored for high-traffic commercial and public spaces. Its visual design features a two-tone olive green and black woven polyester-blend upholstery that creates subtle seating zoning, paired with sleek chrome-plated steel sled-style legs that lend a modern, lightweight silhouette. The full U-shaped arrangement includes two end arm units, four armless middle seats, one corner unit, a central square coffee table, and a compact glass-top side accent table, forming a cohesive layout that supports face-to-face interaction. Constructed for commercial durability, the sofa uses an engineered wood composite internal frame with solid wood blocking at stress points, topped with high-density polyurethane foam seat padding and medium-density foam backrest padding for sustained comfort. The chrome-plated steel legs are fitted with plastic floor glides to protect flooring surfaces, while connecting brackets under the seat deck secure modular units in place. The central coffee table features a smooth white top supported by a stainless steel cylindrical base, and the side table uses a dark tinted tempered glass top with polished edges and four chrome-plated steel tubular legs. Practically, the modular design allows full reconfiguration into U-shape, L-shape, or straight line layouts to adapt to changing space needs. Fixed, non-reclining seat and back cushions support upright guest seating, and 100 mm of under-seat clearance enables easy cleaning access for facility maintenance teams. The integrated side table fits between seat modules to hold laptops, drinks, or documents without extending the seating footprint, and the central coffee table accommodates refreshments, reading materials, or personal devices. The set seats seven people, with each seat module supporting a static load of 150 kg, and the coffee table supporting a 50 kg static load. This sofa set is suited for corporate office reception areas and visitor waiting zones, co-working lounge and breakout spaces, hotel and serviced apartment lobbies, exhibition and showroom visitor areas, and university and library study lounges. Its commercial-grade construction and durable upholstery align with high foot traffic environments, while the modular flexibility supports dynamic workspace and event setup needs. For procurement planning, the set ships in nine individual packages with corrugated carton, foam edge protectors, and polyethylene wrap per unit. Assembly requires 90 minutes for a single installer to connect modules and attach table bases, and the modular design simplifies replacement of individual components if damaged. Buyers should confirm exact material specifications, fiber composition, and hardware details directly with suppliers to align with specific project durability and compliance requirements.

Modular U-Shaped Office Reception Sofa Set with Accent Tables Specifications
