PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	3800 × 1610 × 750 mm
Overall footprint	3800 x 1610 x 750 mm
Seat height from floor	450 mm
Seat depth per module	650 mm
Single straight module width	700 mm
Backrest height above seat	300 mm
Armrest height above seat	200 mm
Inner curved seating arc radius	1200 mm
Floor clearance under sofa base	20 mm
Corner module edge radius	150 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Overall static load capacity	600 kg
Total net weight	120 kg
Seat cushion foam density	45 kg/m³
Foam rebound rate	60%
Seat cushion thickness	150 mm
Back cushion thickness	120 mm
Fabric abrasion resistance	30000 Martindale cycles
Frame service life	10 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Internal frame	Kiln-dried solid pine wood, 30mm section thickness
Seat support layer	80mm sinuous spring webbing grid
Seat filling	High-resilience polyurethane foam + 20mm soft cotton wrap
Back filling	40kg/m³ shaped foam + polyester fiber batting
Upholstery fabric	Beige textured boucle-style polyester, 380gsm weight
Sofa base trim	Matching fabric upholstered plinth, no exposed hard legs
Modular connecting hardware	Powder-coated steel snap connectors, 3mm thickness
Seam stitching	Polyester thread, 8 stitches per inch seam pitch
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular configuration	Interchangeable straight/corner modules connected via under-seat steel clips
Seating capacity	6 adults
Cushion design	Integrated fixed non-removable seat/back cushions, stitched to frame
Edge design	Fully rounded padded edges on all exposed corners, no sharp edges
Installation requirement	Knock-down assembly, only module connection and foot adjustment needed
Layout adaptability	Can be arranged as L-curve, S-curve or linear straight section per project
Cleaning method	Spot clean with mild fabric detergent, no removable covers
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Office reception area	Fits waiting zones for 6 guests, curved layout supports face-to-face conversation
Hotel lounge space	Matches cream aesthetic for lobbies and public relaxation areas
Commercial showroom rest zone	Soft rounded profile complements retail or boutique waiting spaces
Beauty salon guest area	Low-profile comfortable seating suits client waiting and consultation
High-end residential open living area	Modular curved design creates casual conversational seating layout

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1728:2014	Upholstered furniture test methods for seat/back strength and durability
EN 1021-1:2014	Upholstered furniture flammability resistance for cigarette ignition

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2020	Performance standard for lounge seating commercial use, load and stability requirements

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal wood frame
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for indoor air quality
GB/T 1952.1-2012	Safety and performance requirements for upholstered sofas for general use

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to internal wood frame；
2. GB 18584-2001：Limit of harmful substances in wooden furniture, applicable for indoor air quality；
3. GB/T 1952.1-2012：Safety and performance requirements for upholstered sofas for general use；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CMS-3800-CURV

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CMS-3800-CURV

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CMS-3800-CURV打开导出工具

页面快速操作

发布采购询价

产品描述

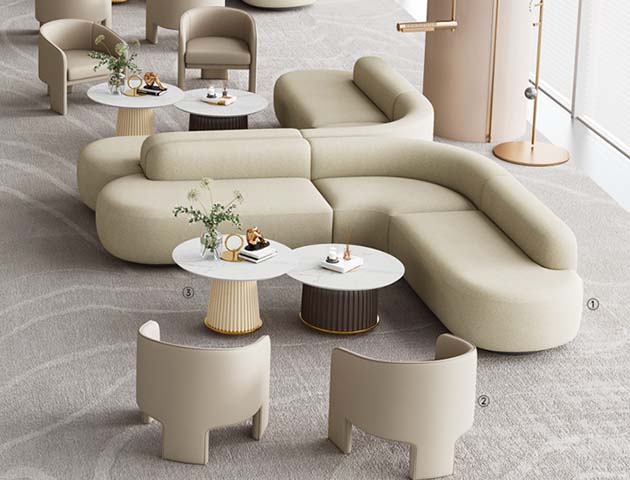

The Beige Curved Modular L-Shaped Sectional Lounge Sofa (model CMS-3800-CURV) is an unbranded soft-upholstered seating solution designed for flexible public and high-end residential use. Its visual identity centers on a smooth curved profile with fully rounded padded edges, a low-back design, and uniform beige textured boucle-style polyester upholstery, supported by a matching fabric-covered plinth with no exposed hard legs for a streamlined, grounded look. The unit measures 3800 x 1610 x 750 mm overall, with a 450 mm seat height, 650 mm seat depth per module, 300 mm backrest height above the seat, 200 mm armrest height above the seat, 1200 mm inner curved seating arc radius, and 20 mm floor clearance under the base. Built for commercial durability, the sofa features a kiln-dried solid pine wood frame with 30 mm section thickness (primary sections measure 30 x 50 mm, with recommended 12% moisture content), supported by an 80 mm sinuous spring webbing grid. Seats are padded with 150 mm thick high-resilience polyurethane foam wrapped in 20 mm soft cotton, delivering a 45 kg/m³ foam density and 60% rebound rate, while 120 mm thick back cushions use 40kg/m³ shaped foam with polyester fiber batting. The 380gsm upholstery offers 30000 Martindale abrasion cycles, secured with 8 stitches per inch polyester thread, and 3 mm thick powder-coated steel snap connectors join interchangeable straight and corner modules. All exposed corners feature soft rounded padding with no sharp edges. The modular design supports L-curve, S-curve, or linear straight layouts to fit space needs, with fixed, non-removable seat and back cushions stitched to the frame to prevent shifting. The unit holds 6 adults with a 600 kg total static load capacity, requires spot cleaning with mild fabric detergent, and ships knock-down for assembly via simple module connection and foot adjustment, with a 40 minute per set assembly time. It is well suited for office reception areas supporting face-to-face guest conversation, hotel lobbies and public lounges with cream-toned aesthetics, commercial showroom rest zones, beauty salon guest waiting and consultation areas, and high-end residential open living areas. For procurement, note the unit ships in 2 cartons with 1.8 m³ total packaging volume and 110 kg packaged gross weight; no removable cushion covers are included, so on-site maintenance protocols should align with spot cleaning requirements. The fixed low-back curved profile prioritizes relaxed conversational positioning over upright task support.

Beige Curved Modular L-Shaped Sectional Lounge Sofa Specifications
