PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2400 × 2400 × 450 mm
Overall assembled footprint	2400 x 2400 x 450 mm
Seat height	450 mm
Seat depth per module	600 mm
Backrest height	300 mm
Central planter cavity diameter	650 mm
Individual curved seat module width	600 mm
Backrest segment width	600 mm
Seat padding thickness	120 mm
Base plinth height	50 mm
Rounded corner radius per end module	300 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total seated user capacity	8 people
Static load per seat	150 kg
Total unit net weight	180 kg
Upholstery abrasion resistance	50000 double rubs
Foam density (seat cushion)	45 kg/m³
Foam rebound rate	45%
Seam stitch pitch	8 stitches per 30mm
Warranty period	10 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat surface upholstery	Light gray contract-grade polyester fabric
Backrest upholstery	Mustard yellow contract-grade polyester fabric
Internal frame	1.2mm thick powder-coated steel tubing
Seat cushion core	45kg/m³ high-density polyurethane foam
Backrest padding	35kg/m³ medium-density polyurethane foam
Module base plinth	Reinforced plywood with fabric wrapping
Modular connection hardware	Zinc-plated steel bracket connectors
Upholstery underlayer	10mm thick non-woven polyester lining
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular reconfiguration	Interlocking segments rearrange into linear, curved or ring layouts
Central planter integration	Open central cavity accommodates pots up to 650mm diameter
Replaceable upholstery covers	Zippered covers allow removal for cleaning or replacement
Freestanding installation	No floor fixing required, weighted base prevents shifting
Segment connection	Steel bracket locks adjacent modules with hidden fasteners
Edge safety design	All corners rounded to 300mm radius to reduce impact injury
Optional power integration	Pre-drilled channels support adding USB/AC power modules
Cleanable surface	Stain-resistant fabric allows spot cleaning with mild detergent
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Office reception lobbies	Creates welcoming circular seating zones with central greenery for visitors
Co-working open spaces	Defines casual collaboration areas without solid partition barriers
Public waiting areas	High-capacity low-profile seating for clinics, transit hubs and public buildings
Educational common areas	Flexible informal seating for student lounges and campus breakout zones
Retail atriums	Decorative functional seating that integrates biophilic design elements
Exhibition and event spaces	Reconfigurable modular units that adapt to temporary event layouts
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013	Applicable strength, durability and safety standard for non-domestic seating
EN 1021-1:2014	Applicable upholstered furniture ignitability resistance to smouldering cigarette

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2022	Applicable performance standard for lounge and public seating durability
ANSI/BIFMA e3-2019	Applicable furniture sustainability standard for material emissions and sourcing

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	Applicable to general technical requirements for wooden furniture used in seating base construction
GB 20286-2006	Applicable to fire safety requirements for upholstered furniture in public assembly spaces
GB/T 19001-2016	Applicable quality management system guidance for contract furniture production

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：Applicable to general technical requirements for wooden furniture used in seating base construction；
2. GB 20286-2006：Applicable to fire safety requirements for upholstered furniture in public assembly spaces；
3. GB/T 19001-2016：Applicable quality management system guidance for contract furniture production；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · CLP-3LOB-2400

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · CLP-3LOB-2400

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · CLP-3LOB-2400打开导出工具

页面快速操作

发布采购询价

产品描述

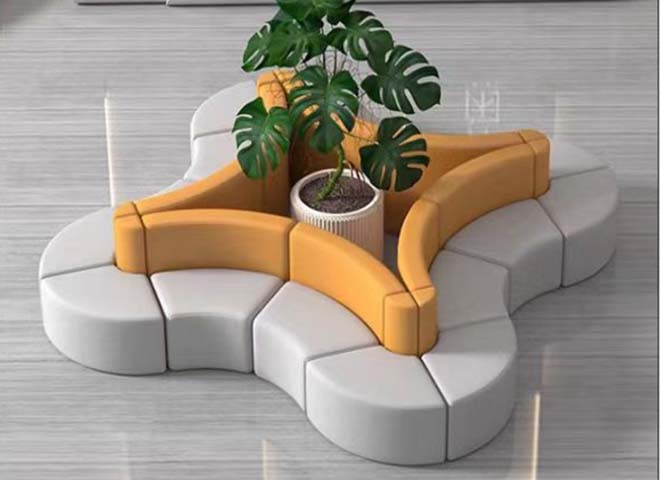

The Three-Lobed Modular Curved Lounge Seating with Central Planter Cavity (model CLP-3LOB-2400) is an unbranded public lounge solution designed to blend flexible seating with integrated biophilic design elements. Its signature three-lobed curved form creates a cohesive, low-profile seating cluster anchored by an open central planter cavity, with uniform seat and backrest segments that align to form a welcoming, semi-enclosed social layout. The two-tone upholstery scheme pairs light gray contract-grade polyester on seat surfaces with mustard yellow polyester on backrests, delivering a modern, approachable visual presence suitable for high-traffic settings. Built for contract use, the seating features a rigid internal frame constructed from powder-coated steel tubing, supported by reinforced plywood base plinths wrapped in matching fabric. Seating surfaces are padded with high-density polyurethane foam for seat cushions and medium-density foam for backrests, encased in removable zippered upholstery covers that allow straightforward cleaning or replacement. Hidden zinc-plated steel brackets lock adjacent modules together securely, while the weighted, freestanding base eliminates the need for permanent floor fixing and prevents unintended shifting. All exposed corners are rounded to reduce impact injury risk, and pre-drilled internal channels support optional installation of USB or AC power modules for user convenience. The central open cavity accommodates planter pots, allowing integration of greenery directly into the seating layout, while interlocking segments can be rearranged into linear, alternate curved, or full ring configurations to suit changing space needs. The assembled unit seats 8 users, with abrasion-resistant upholstery rated to withstand frequent public use. This seating solution fits a broad range of commercial and public spaces: it creates welcoming, plant-centered gathering zones in office reception lobbies, defines casual collaboration areas in co-working open spaces without obstructive solid partitions, delivers high-capacity comfortable waiting seating for clinics, transit hubs and public buildings, offers flexible informal seating for student lounges and campus breakout zones, serves as decorative functional seating with biophilic appeal for retail atriums, and adapts quickly to temporary layouts for exhibition and event spaces. For procurement planning, note that each set ships in 2 cartons, requires on-site assembly, and is designed for straightforward reconfiguration between installations. Specifiers should account for the fixed assembled footprint when planning space layouts, and confirm compatibility of desired power accessories with the pre-drilled internal channel design prior to order placement. The replaceable upholstery covers support long-term maintenance in high-wear public environments, reducing lifecycle replacement costs for high-traffic installations.

Three-Lobed Modular Curved Lounge Seating with Central Planter Cavity Specifications
