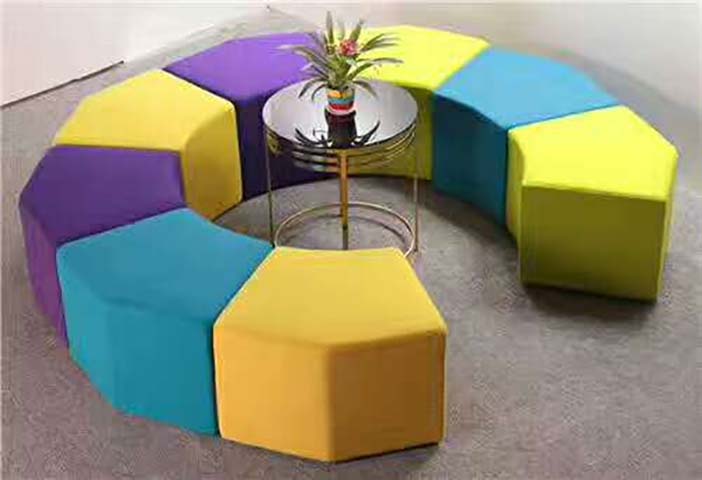

Hexagonal Modular Upholstered Ottoman Set with Circular Accent Table Specifications

MOT-HEX8-MX

代码:W3CZB6V1
获取供应商报价
2026-08-05 17:11人气: 58
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MOT-HEX8-MX

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall circular arrangement diameter2400 mm
Single ottoman hexagon width (flat to flat)600 mm
Single ottoman hexagon depth (point to point)690 mm
Single ottoman seat height450 mm
Center accent table top diameter600 mm
Center accent table overall height550 mm
Inner circular void diameter (between ottomans)900 mm
Single ottoman base footprint0.32 m²
Total seating length along circular top4800 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single ottoman static load capacity120 kg
Single ottoman net weight range upper limit8 kg
Recommended maximum simultaneous seated users8
Upholstery abrasion resistance reference25000 cycles
Maximum simultaneous seated users for full set8
Upholstery fabric abrasion resistance rating25000 cycles
Ottoman foam indentation force deflection (IFD) rating180 N
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Ottoman top and side upholsteryWoven polyester fabric, stretch-fit over padded frame
Ottoman internal framePlywood and solid wood support structure
Ottoman cushion paddingHigh-density polyurethane foam core with soft top layer
Ottoman bottom baseNon-woven fabric cover with plastic anti-slip feet
Center table top surfaceMirrored glass or high-gloss white panel with smooth finish
Center table support frameChrome-plated metal tubular structure with central column and circular lower ring
Ottoman edge stitchingSewn fabric seams at all six vertical corners
Ottoman top and vertical side upholsteryWoven polyester fabric, taut-fit stretched over padded frame with sewn corner seams
Ottoman internal support frame12mm thick plywood + 20mm solid wood batten support structure, glued and stapled assembly
Ottoman cushion padding core35kg/m³ high-density polyurethane foam core with 25kg/m³ soft top comfort layer
Ottoman bottom base closureBlack non-woven fabric dust cover with 4pcs 15mm diameter plastic anti-slip feet
Ottoman edge seam constructionLock-stitch sewn fabric seams at all six vertical corners with 6 stitches per 25mm pitch
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular reconfiguration8 independent hexagonal units can be arranged into circles, waves, rows or custom layouts
Casual low seating450 mm seat height supports cross-legged or perching posture for lounge, waiting or event use
Additional surface functionFlat padded top can serve as extra table space for trays, bags or decorative items when not used for seating
Floor protectionBottom anti-slip feet prevent scratching hard floors and reduce unit movement during use
Tool-free assemblyUnits arrive fully upholstered and require no assembly; only placement and layout arrangement is needed
Free modular reconfiguration8 independent hexagonal ottoman units can be rearranged into full circles, partial arcs, straight rows, stepped formations or custom layouts without connecting hardware
Multi-posture casual seating450mm seat height supports perching, cross-legged sitting and side-sitting postures for informal lounge use
Dual-use flat top surfaceFirm foam padded top supports 10kg distributed load to serve as temporary side surface for trays, bags or decorative items when not occupied by seated users
Hard floor scratch protectionBottom plastic anti-slip feet reduce unit sliding during use and prevent abrasion to vinyl, wood and tile flooring surfaces
Tool-free deploymentOttoman units arrive fully upholstered and ready for use; only the central table requires 3-step hand-tightened assembly of the frame and top with no tools needed
Stain-resistant easy maintenanceWoven polyester upholstery can be spot-cleaned with mild detergent for common food and drink stains in high-traffic public spaces
Recline Angle / Lock Reference125° with 3 suggested lock positions
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Total carton count (8 ottomans + 1 table)5 cartons
Ottoman carton dimensions (2 units per carton)720 x 700 x 500 mm
Table carton dimensions650 x 650 x 600 mm
Total gross weight upper limit70 kg
Total shipment volume upper limit0.92 m³
Assembly time upper limit20 minutes
20ft container loading quantity (sets of 8)60 sets
Total carton count per set (8 ottomans + 1 table)5 cartons
Total gross weight per set upper limit70 kg
Total shipment volume per set upper limit0.92 m³
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Office lounge and breakout areasProvides flexible casual seating for team collaboration, informal meetings and break time use
Event and exhibition spacesCan be quickly reconfigured for trade shows, pop-up events and reception areas to match changing attendee flows
School and library common areasSuitable for student study groups, reading nooks and multi-purpose activity spaces
Retail store customer waiting zonesAdds colorful, approachable seating near fitting rooms, cash registers or store entrances to improve customer experience
Hotel lobby and co-working spacesSupports transient users with flexible seating that can be expanded or reduced based on peak occupancy
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

BS EN 10222018 Furniture - Seating - Determination of stability
BS EN 17282020 Furniture - Seating - Test methods for the determination of strength and durability of seats and backs
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MOT-HEX8-MX

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MOT-HEX8-MX

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MOT-HEX8-MX打开导出工具

页面快速操作

发布采购询价

产品描述

The KAIERTE model MOT-HEX8-MX is a modular upholstered ottoman set paired with a matching circular accent table, designed for flexible public space furnishing. The default circular layout spans 2400mm at its widest point, formed by eight freestanding hexagonal ottoman units surrounding a 900mm clear central void that holds the 600mm diameter accent table. Each individual ottoman measures 600mm flat-to-flat across its hexagonal face, with a 450mm seat height, 90mm thick finished seat cushion, and precise lock-stitch sewn seams at all six vertical corners for a polished, uniform appearance. The 550mm tall center table features a smooth reflective top supported by a chrome-plated metal tubular frame, creating a coordinated, approachable visual focal point for group arrangements. Each ottoman is built with a glued and stapled internal frame of 12mm plywood and 20mm solid wood battens, topped with high-density polyurethane foam padding with a soft comfort layer, and upholstered in taut, matte woven polyester fabric. Each unit supports a 120kg static load, with medium-firm 180N IFD foam calibrated to hold shape under regular use without permanent indentation. The upholstery carries a 25000-cycle abrasion resistance rating suitable for high-traffic use, and spot cleans easily with mild detergent to address common food and drink stains. Non-slip plastic feet on each ottoman base prevent scratches to hard flooring surfaces and reduce unintended sliding during use. The set supports completely tool-free deployment: all ottomans arrive fully upholstered and ready to place, while the central table requires only hand-tightened assembly completed in 20 minutes. The eight independent units connect with no permanent hardware, allowing rearrangement into full circles, partial arcs, straight rows, stepped formations, or fully custom layouts to match changing space needs. The 450mm seat height accommodates perching, cross-legged sitting, and side-sitting for short-duration casual use, with a maximum capacity of eight simultaneous seated users across the full set. Firm, flat ottoman tops can also serve as temporary surface space for trays, bags, or decorative items when not occupied. This set is well suited for office breakout lounges, trade show and exhibition spaces, school and library common areas, retail customer waiting zones, hotel lobbies, and co-working spaces, where seating arrangements need to shift to support group collaboration, individual rest, or fluctuating visitor traffic. Procurement teams should note that multiple material specifications, including exact table top composition, fabric fiber content, wood frame grade, and foam density tolerances, require confirmation via official supplier bill of materials prior to final order placement. Shipments for one full set include five cartons, with a maximum total gross weight of 70kg and maximum shipment volume of 0.92 cubic meters, supporting efficient loading of 60 full sets per 20ft shipping container for large-scale furnishing projects.
