mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (main desk + return) | 2200 x 1800 x 750 mm | |
|---|---|---|
| Main desktop thickness | 25 mm | |
| Knee clearance height under main desk | 620 mm | |
| Knee clearance width under main desk | 800 mm | |
| Side return cabinet depth | 500 mm | |
| Return cabinet height | 600 mm | |
| Desktop cable grommet opening length | 300 mm | |
| Drawer face height per compartment | 180 mm | |
| Open storage shelf compartment width | 400 mm | |
| Side support panel thickness | 18 mm | |
| Edge banding thickness | 2 mm | |
| Plinth height from floor | 20 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Product net weight | 145 kg | |
|---|---|---|
| Main desktop static uniform load capacity | 100 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended maximum user weight accommodation | 136 kg | |
| Warranty period | 5 years | |
| Available color options | 2 | |
| Drawer slide cycle durability | 50000 cycles | |
| Hinge cycle durability | 80000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main desktop substrate | 15mm E1 grade particleboard core | |
|---|---|---|
| Desktop surface finish | Walnut grain thermofused melamine laminate | |
| Structural side panels and cabinet carcass | 18mm E1 grade particleboard with warm taupe matte melamine finish | |
| Drawer and cabinet door faces | 18mm walnut grain melamine particleboard | |
| Drawer lock hardware | Zinc alloy keyed cam lock | |
| Edge banding | 2mm thick ABS edge trim | |
| Internal shelf panels | 18mm matching taupe melamine particleboard | |
| Desk base plinth | 15mm particleboard with matching taupe finish | |
| Cable grommet insert | Brushed ABS plastic with brush strip seal | |
| Drawer slide hardware | Cold-rolled steel three-section ball bearing slides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Lockable drawer storage | 2 vertically stacked drawers with single keyed lock on upper drawer, locks both compartments for secure document storage | |
|---|---|---|
| Hinged cabinet door storage | 1 full-height hinged door on credenza, conceals internal storage compartment for larger items | |
| Divided open shelf storage | 1 fixed horizontal shelf splits open credenza section into 2 equal height compartments for no-door quick access storage | |
| Integrated desktop cable management | 1 recessed brush grommet centered on main desk top routes monitor and device cables to internal cable channel | |
| Internal vertical cable routing channel | Pre-punched vertical cable pass-through slots in credenza side panel route cables from desktop to floor exit hole | |
| Floor cable exit | 1 semi-circular cable cutout at base of credenza allows cables to route to underfloor or wall power outlets without pinching | |
| Fixed height work surface | Non-adjustable 750mm working height aligned with global ergonomic standards for seated office work with standard task chairs | |
| Stable fixed support structure | Dual support system with full-panel end leg on main desk and integrated credenza cabinet eliminates desk wobble during writing or typing | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping packages | 3 | |
|---|---|---|
| Flat pack carton dimensions (total) | 2300 x 950 x 180 mm, 1900 x 650 x 220 mm, 850 x 620 x 120 mm | |
| Total shipping gross weight | 170 kg | |
| Total shipping volume (CBM) | 0.82 | |
| Assembly time for 2 trained installers | 50 minutes | |
| 40HQ container loading quantity | 72 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
推荐空间 / 目标用户 / 使用方式
| Private executive offices | Designed for manager and director level private workspaces, provides sufficient work surface and secure storage for confidential documents | |
|---|---|---|
| Open office senior workstations | Suitable for dedicated senior staff workstations in open plan offices, side credenza acts as spatial divider without blocking sightlines | |
| Small meeting and consultation spaces | Can be used in meeting rooms for manager-client consultations, desktop space supports presentation materials and laptop use | |
| Home office executive setups | Appropriate for large home office spaces, storage compartments eliminate need for separate filing cabinets to save floor space | |
| Bulk commercial procurement fitouts | Standardized dimensions and modular design allows consistent specification across multiple office floors or multi-site projects | |
| Recommended paired furniture | Compatible with standard height adjustable or fixed height executive task chairs, 600mm deep mobile filing pedestals, and monitor arms mounted via desk grommet holes |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables and desks - safety and strength requirements, applicable for structural stability, load capacity and edge safety verification | |
|---|---|---|
| EN 13986:2004+A1:2015 | Wood-based panels for construction, applicable for formaldehyde emission class E1 verification for indoor air quality | |
| EN 15372:2008+A1:2016 | Office furniture - storage units, applicable for drawer load capacity, door durability and cabinet structural performance |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel thickness, dimensional tolerance and structural stability verification | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requirement for E1 grade (≤0.124mg/m³) for all panel components used in indoor office environments | |
| GB/T 10357.1-1989 | Furniture mechanical performance test for tables, applicable for desktop static load, leg strength and stability testing |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for panel thickness, dimensional tolerance and structural stability verification； 2. GB 18580-2017：Formaldehyde emission limits for wood-based panels, requirement for E1 grade (≤0.124mg/m³) for all panel components used in indoor office environments； 3. GB/T 10357.1-1989：Furniture mechanical performance test for tables, applicable for desktop static load, leg strength and stability testing； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

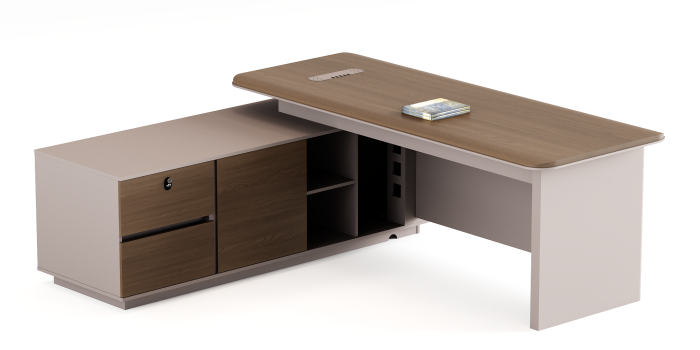

打开导出工具L-Shaped Executive Office Desk with Fixed Side Storage Credenza, Particleboard.
