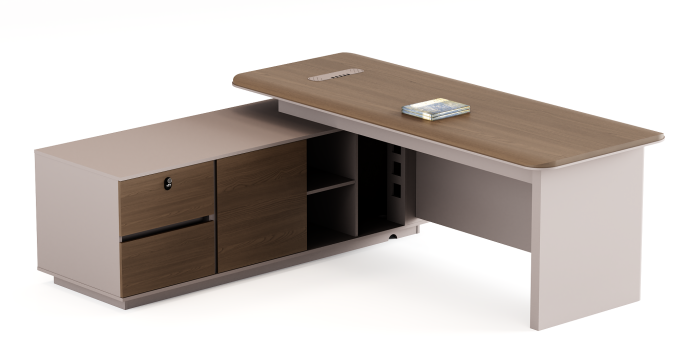

L-Shaped Executive Office Desk with Fixed Side Storage Credenza

Submitted	Field	Original	修改后参数	Note / Status
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Overall dimensions (main desk + return)	2200 x 1800 x 750 mm
Main desktop thickness	25 mm
Knee clearance height under main desk	620 mm
Knee clearance width under main desk	800 mm
Side return cabinet depth	500 mm
Return cabinet height	600 mm
Desktop cable grommet opening length	300 mm
Drawer face height per compartment	180 mm
Open storage shelf compartment width	400 mm
Side support panel thickness	18 mm
Edge banding thickness	2 mm
Plinth height from floor	20 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Product net weight	145 kg
Main desktop static uniform load capacity	100 kg
Surface abrasion resistance	2000 cycles
Recommended maximum user weight accommodation	136 kg
Warranty period	5 years
Available color options	2
Drawer slide cycle durability	50000 cycles
Hinge cycle durability	80000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Main desktop substrate	15mm E1 grade particleboard core
Desktop surface finish	Walnut grain thermofused melamine laminate
Structural side panels and cabinet carcass	18mm E1 grade particleboard with warm taupe matte melamine finish
Drawer and cabinet door faces	18mm walnut grain melamine particleboard
Drawer lock hardware	Zinc alloy keyed cam lock
Edge banding	2mm thick ABS edge trim
Internal shelf panels	18mm matching taupe melamine particleboard
Desk base plinth	15mm particleboard with matching taupe finish
Cable grommet insert	Brushed ABS plastic with brush strip seal
Drawer slide hardware	Cold-rolled steel three-section ball bearing slides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Lockable drawer storage	2 vertically stacked drawers with single keyed lock on upper drawer, locks both compartments for secure document storage
Hinged cabinet door storage	1 full-height hinged door on credenza, conceals internal storage compartment for larger items
Divided open shelf storage	1 fixed horizontal shelf splits open credenza section into 2 equal height compartments for no-door quick access storage
Integrated desktop cable management	1 recessed brush grommet centered on main desk top routes monitor and device cables to internal cable channel
Internal vertical cable routing channel	Pre-punched vertical cable pass-through slots in credenza side panel route cables from desktop to floor exit hole
Floor cable exit	1 semi-circular cable cutout at base of credenza allows cables to route to underfloor or wall power outlets without pinching
Fixed height work surface	Non-adjustable 750mm working height aligned with global ergonomic standards for seated office work with standard task chairs
Stable fixed support structure	Dual support system with full-panel end leg on main desk and integrated credenza cabinet eliminates desk wobble during writing or typing
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Number of shipping packages	3
Flat pack carton dimensions (total)	2300 x 950 x 180 mm, 1900 x 650 x 220 mm, 850 x 620 x 120 mm
Total shipping gross weight	170 kg
Total shipping volume (CBM)	0.82
Assembly time for 2 trained installers	50 minutes
40HQ container loading quantity	72 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Private executive offices	Designed for manager and director level private workspaces, provides sufficient work surface and secure storage for confidential documents
Open office senior workstations	Suitable for dedicated senior staff workstations in open plan offices, side credenza acts as spatial divider without blocking sightlines
Small meeting and consultation spaces	Can be used in meeting rooms for manager-client consultations, desktop space supports presentation materials and laptop use
Home office executive setups	Appropriate for large home office spaces, storage compartments eliminate need for separate filing cabinets to save floor space
Bulk commercial procurement fitouts	Standardized dimensions and modular design allows consistent specification across multiple office floors or multi-site projects
Recommended paired furniture	Compatible with standard height adjustable or fixed height executive task chairs, 600mm deep mobile filing pedestals, and monitor arms mounted via desk grommet holes

STANDARD S1

EU EN Standards

European market access and chemical requirements

EN 527-1:2011	Office work tables and desks - safety and strength requirements, applicable for structural stability, load capacity and edge safety verification
EN 13986:2004+A1:2015	Wood-based panels for construction, applicable for formaldehyde emission class E1 verification for indoor air quality
EN 15372:2008+A1:2016	Office furniture - storage units, applicable for drawer load capacity, door durability and cabinet structural performance

STANDARD S2

North America ANSI/BIFMA Standards

US and Canada office-furniture standards

No standards data is available for this market.

STANDARD S3

China GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for panel thickness, dimensional tolerance and structural stability verification
GB 18580-2017	Formaldehyde emission limits for wood-based panels, requirement for E1 grade (≤0.124mg/m³) for all panel components used in indoor office environments
GB/T 10357.1-1989	Furniture mechanical performance test for tables, applicable for desktop static load, leg strength and stability testing

Standard Tender Description

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel thickness, dimensional tolerance and structural stability verification;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requirement for E1 grade (≤0.124mg/m³) for all panel components used in indoor office environments;
3. GB/T 10357.1-1989: Furniture mechanical performance test for tables, applicable for desktop static load, leg strength and stability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
